TRANSMISSION
EN500A1 VULCAN500 1990 USA CALIFORNIA

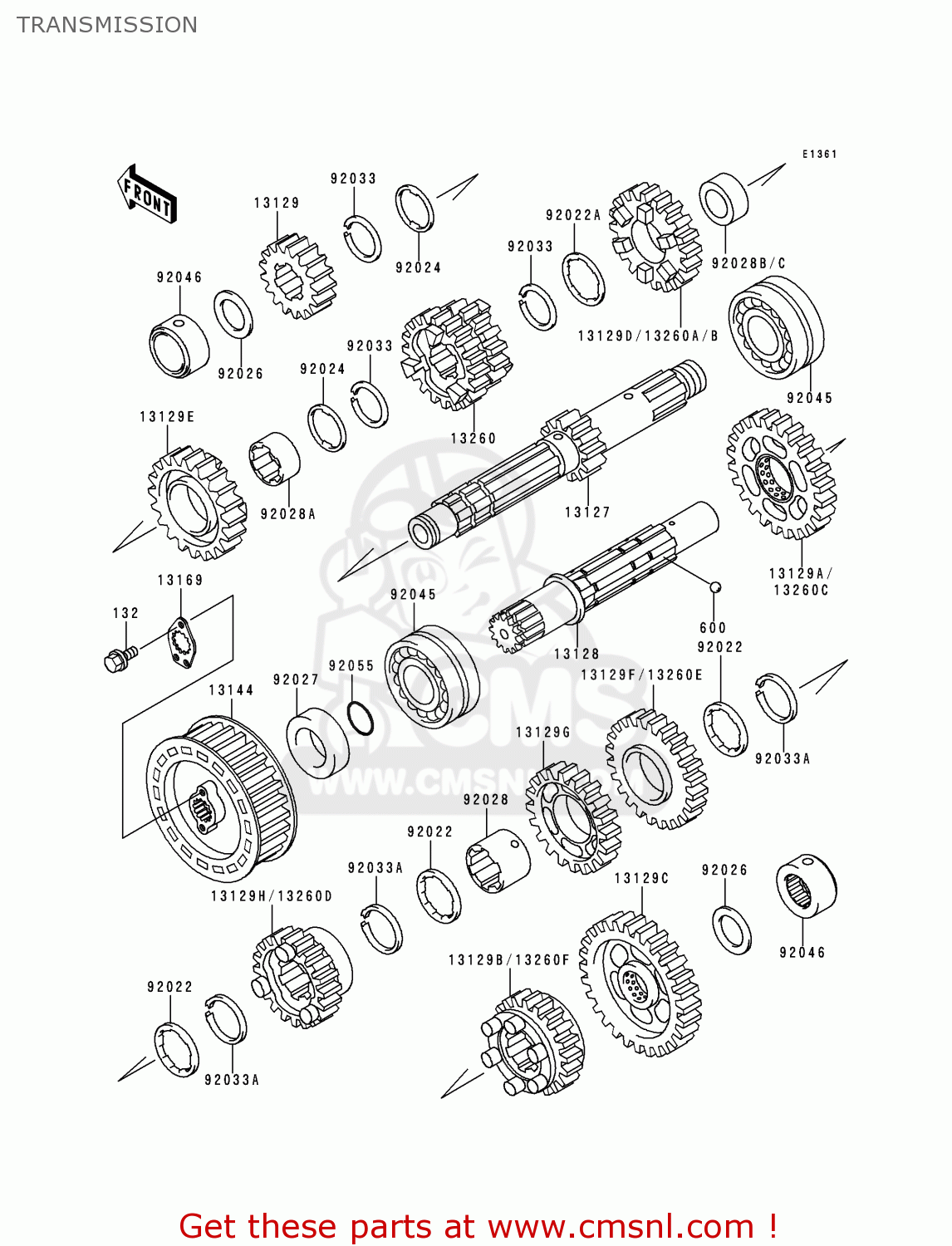

Transmission diagram EN500A1 VULCAN500 1990 USA CALIFORNIA
TRANSMISSION EN500A1 VULCAN500 1990 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
13127
131271148
ref: 13127
SHAFT-TRANSMISSION IN
€ 187.50
13128
131281118
ref: 13128
SHAFT-TRANSMISSION OU
€ 132.50
13129
131291077
ref: 13129
2ND GEAR,DRIVE,18T
€ 79.50
13129A
131291078
ref: 13129A
2ND GEAR,OUTPUT,32T
€ 75.50
13129B
131291083
ref: 13129B
GEAR,OUTPUT 5TH,25T
€ 114.50
13129C
131291564
ref: 13129C
GEAR,OUTPUT LOW,36T
€ 120.50
13129D
131291657
ref: 13129D
GEAR,INPUT 5TH,26T
€ 134.50
13129E
131291658
ref: 13129E
GEAR,INPUT TOP,27T
€ 107.00
13129F
131291659
ref: 13129F
GEAR,OUTPUT 3RD,29T
€ 44.00
13129G
131291660
ref: 13129G
GEAR,OUTPUT 4TH,27T
€ 113.50
13129H
131291662
ref: 13129H
GEAR,OUTPUT TOP,23T
€ 45.00
13144
131441115
ref: 13144
SPROCKET-OUTPUT,25T
€ 78.50
13169
131691893
ref: 13169
PLATE,SPROCKET
€ 8.00
13260
132601195
ref: 13260
GEAR,INPUT 3RD&4TH,21
€ 103.00
13260B
132601203
ref: 13260B
GEAR,INPUT 5TH,26T
€ 101.50
13260C
132601332
ref: 13260C
GEAR,OUTPUT 2ND,32T
€ 43.00
13260D
132601333
ref: 13260D
GEAR,OUTPUT TOP,23T
€ 113.50
13260E
132601387
ref: 13260E
GEAR,OUTPUT 3RD,29T
€ 40.50
13260F
132601388
ref: 13260F
GEAR,OUTPUT 5TH,25T
€ 127.50
92022
920221139
ref: 92022
WASHER,TOOTHED,28.3X3
€ 4.00
92022A
920221861
ref: 92022A
WASHER,TOOTHED,25.3X3
€ 4.00
92024
92024033
ref: 92024
WASHER,TOOTHED,25.5X3
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
€ 3.00
92027
920271857
ref: 92027
COLLAR,25X40X12
€ 18.50
92028
920281364
ref: 92028
BUSHING,OUTPUT 3RD&4T
€ 22.00
92028A
920281552
ref: 92028A
BUSHING,INPUT TOP GEA
€ 17.50
92028C
920281639
ref: 92028C
BUSHING
€ 14.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461161
ref: 92046
BEARING-NEEDLE,NKZ20X
€ 46.00
92055
92055035
ref: 92055
O RING
€ 3.00
