FRONT FORK
EL250E2 ELIMINATOR 1992 EUROPE FR FG IT

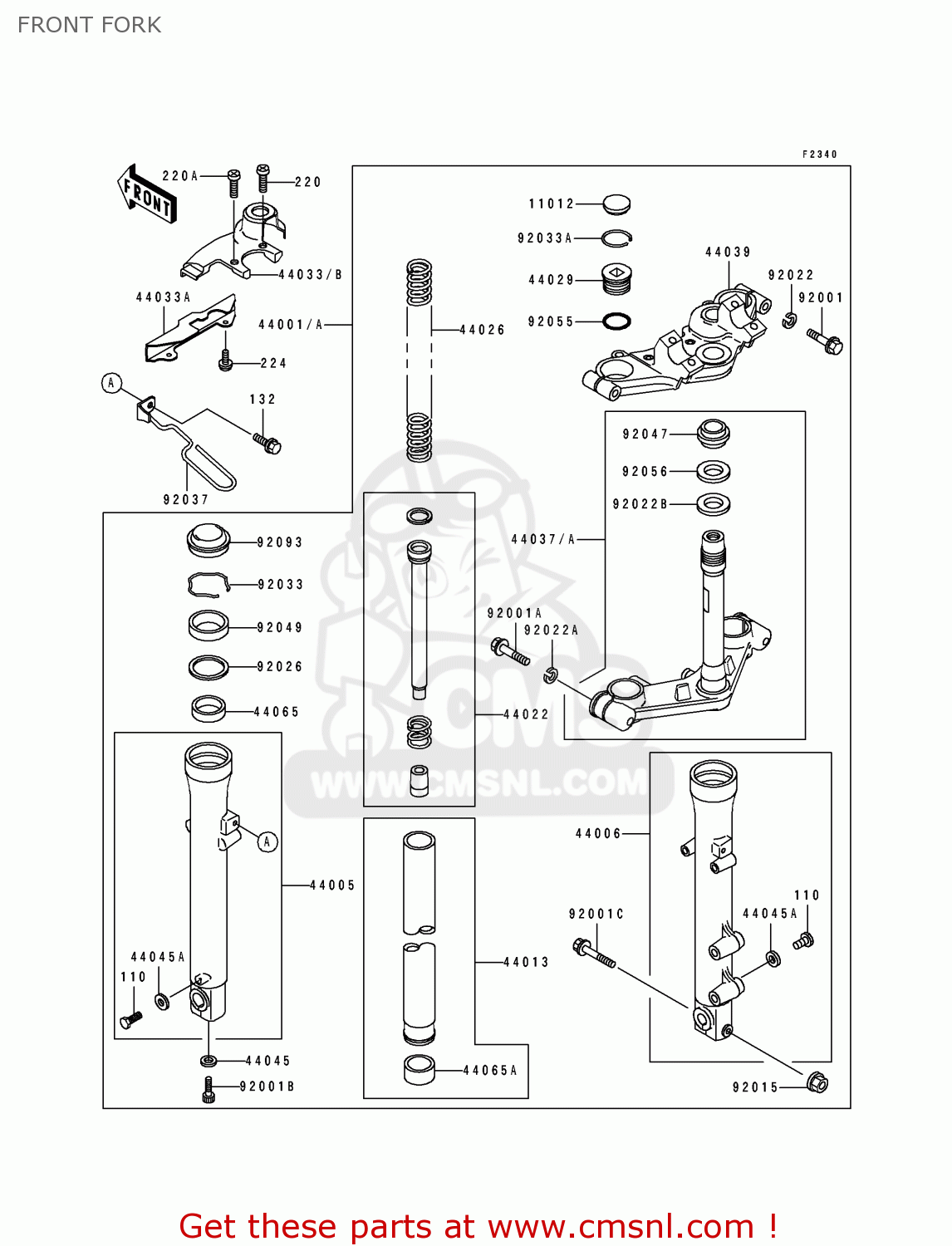

Front fork diagram EL250E2 ELIMINATOR 1992 EUROPE FR FG IT
FRONT FORK EL250E2 ELIMINATOR 1992 EUROPE FR FG IT
×
prices are in EUR
ref
part #
description
quantity
11012
110121620
ref: 11012
CAP,FORK TOP
€ 7.50
44001
440011666
ref: 44001
EUFRIT
FORK-FRONT
€ 1,313.50
44001A
440011825
ref: 44001A
FG
FORK-FRONT
€ 2,133.50
44005
440051266
ref: 44005
PIPE-LEFT FORK OUTER
€ 345.00
44006
440061263
ref: 44006
PIPE-RIGHT FORK OUTER
€ 329.50
44013
440131270
ref: 44013
PIPE-FORK INNER
€ 176.50
44022
440221217
ref: 44022
CYLINDER-FORK
€ 90.00
44026
440261374
ref: 44026
SPRING-FRONT FORK
€ 20.50
44029
440291124
ref: 44029
SEAT-FORK SPRING
€ 29.50
44033
440331176
ref: 44033
EUFRIT
COVER-FORK,UPPER BRAC
€ 26.50
44033A
440331181
ref: 44033A
COVER-FORK
€ 11.50
44033B
440331194
ref: 44033B
FG
COVER-FORK,UPPER BRAC
€ 30.50
44037
440371222
ref: 44037
EUFRIT
HOLDER-FORK UNDER
€ 274.00
44037A
440371244
ref: 44037A
FG
HOLDER-FORK UNDER
€ 274.00
44039
440391159
ref: 44039
HOLDER-FORK UPPER
€ 238.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44065
440651068
ref: 44065
BUSHING-FRONT FORK
€ 16.00
44065A
440651069
ref: 44065A
BUSHING-FRONT FORK,IN
€ 16.50
92001
920011063
ref: 92001
BOLT,HEX HEAD,8X40
€ 6.50
92001A
920011454
ref: 92001A
BOLT
€ 6.50
92001B
920011464
ref: 92001B
BOLT
€ 4.00
92001C
920011486
ref: 92001C
BOLT,FLANGED,8X50
€ 7.50
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92022
920221703
ref: 92022
WASHER,SPRING,8MM
€ 2.00
92022A
920221704
ref: 92022A
WASHER,SPRING,10MM
€ 2.00
92022B
92022231
ref: 92022B
WASHER,PLAIN
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
€ 6.50
92033
920331219
ref: 92033
RING-SNAP,FORK
€ 4.00
92033A
920331220
ref: 92033A
RING-SNAP,FORK TOP
€ 6.00
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
220
220E0510
ref: 220
SCREW-PAN-CROS
€ 2.50
220A
220E0518
ref: 220A
SCREW-PAN-CROS,5X18
€ 2.50
224
224B0508
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
92037
920371922
ref: 92037
CLAMP,CABLE
€ 15.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
€ 14.50
92049
920491226
ref: 92049
SEAL-OIL,FORK
€ 14.50
92055
920551359
ref: 92055
RING-O,FORK SPRING SE
€ 6.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
€ 6.00
92093
920931196
ref: 92093
SEAL,FORK
€ 15.50
