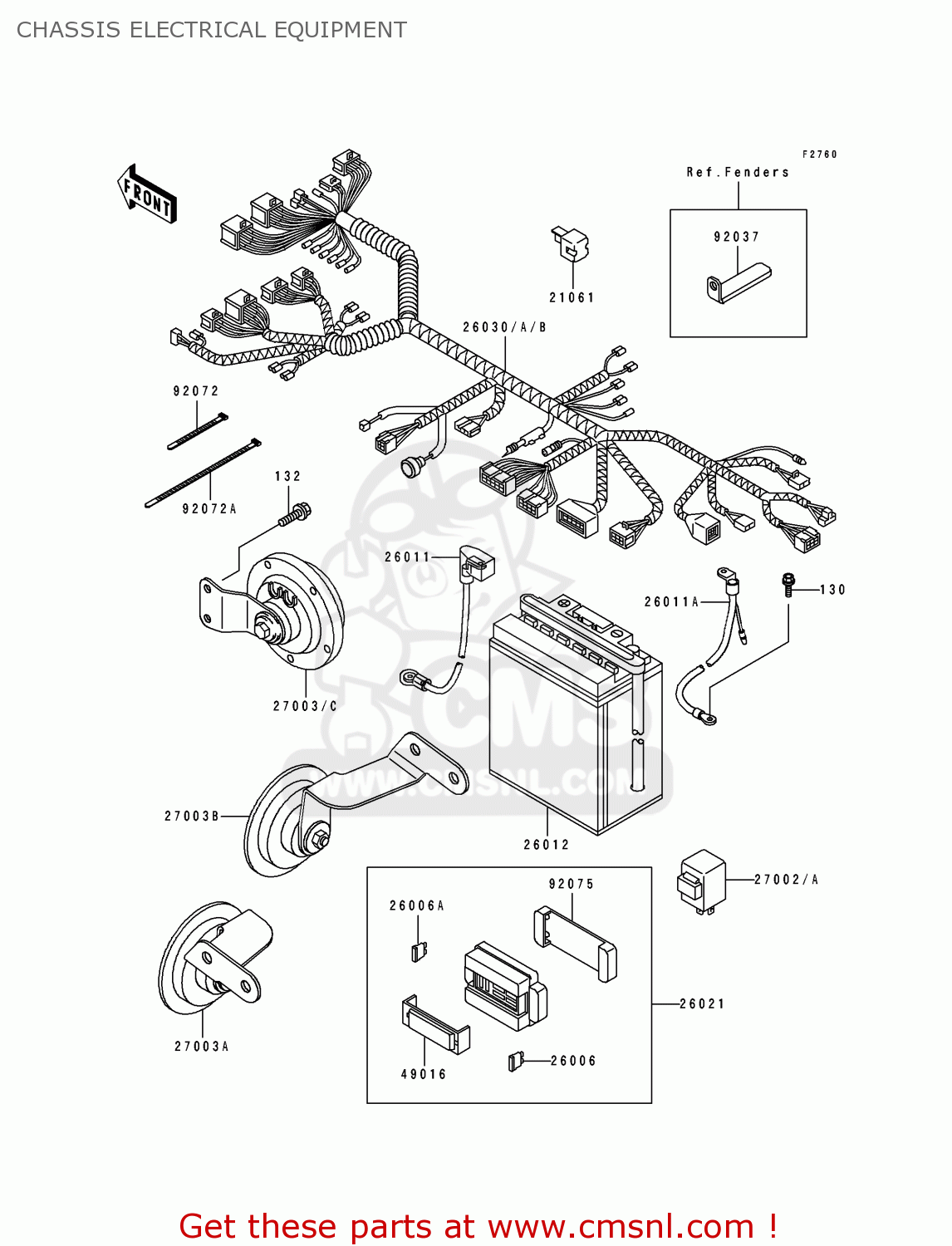

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130B0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

132

132J0610
ref: 132
EUFGFR

BOLT-FLANGED-SMALL,6X

€ 1.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111401
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 28.00

26011A

260111402
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 27.50

26012

260121205
ref: 26012

BATTERY,12V 8AH,FB9L-

€ 60.00

26021

260211081
ref: 26021

JUNCTION, BOX

€ 106.50

26030

260301107
ref: 26030
EUFGFR

HARNESS,MAIN

€ 247.00

26030A

260301115
ref: 26030A
IT

HARNESS,MAIN

€ 247.00

27002

270021053
ref: 27002
EUFRIT

RELAY-ASSY,TURN SIGNA

€ 33.50

27002A

270021060
ref: 27002A
FG

RELAY-ASSY,TURN SIGNA

€ 65.50

27003

270031275
ref: 27003
FG

HORN

€ 53.50

27003A

270031351
ref: 27003A
IT

HORN,LH

€ 61.50

27003B

270031352
ref: 27003B
IT

HORN,RH

€ 61.50

27003C

270031355
ref: 27003C
EUFR

HORN

€ 61.50

49016

490161124
ref: 49016

COVER-SEAL,FUSE

€ 6.00

92037

920371316
ref: 92037

CLAMP

€ 1.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721197
ref: 92072A

BAND

€ 5.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50
