FOOTRESTS

EL250D5 ELIMINATOR 1994 UNITED KINGDOM NL FG GR IT SD

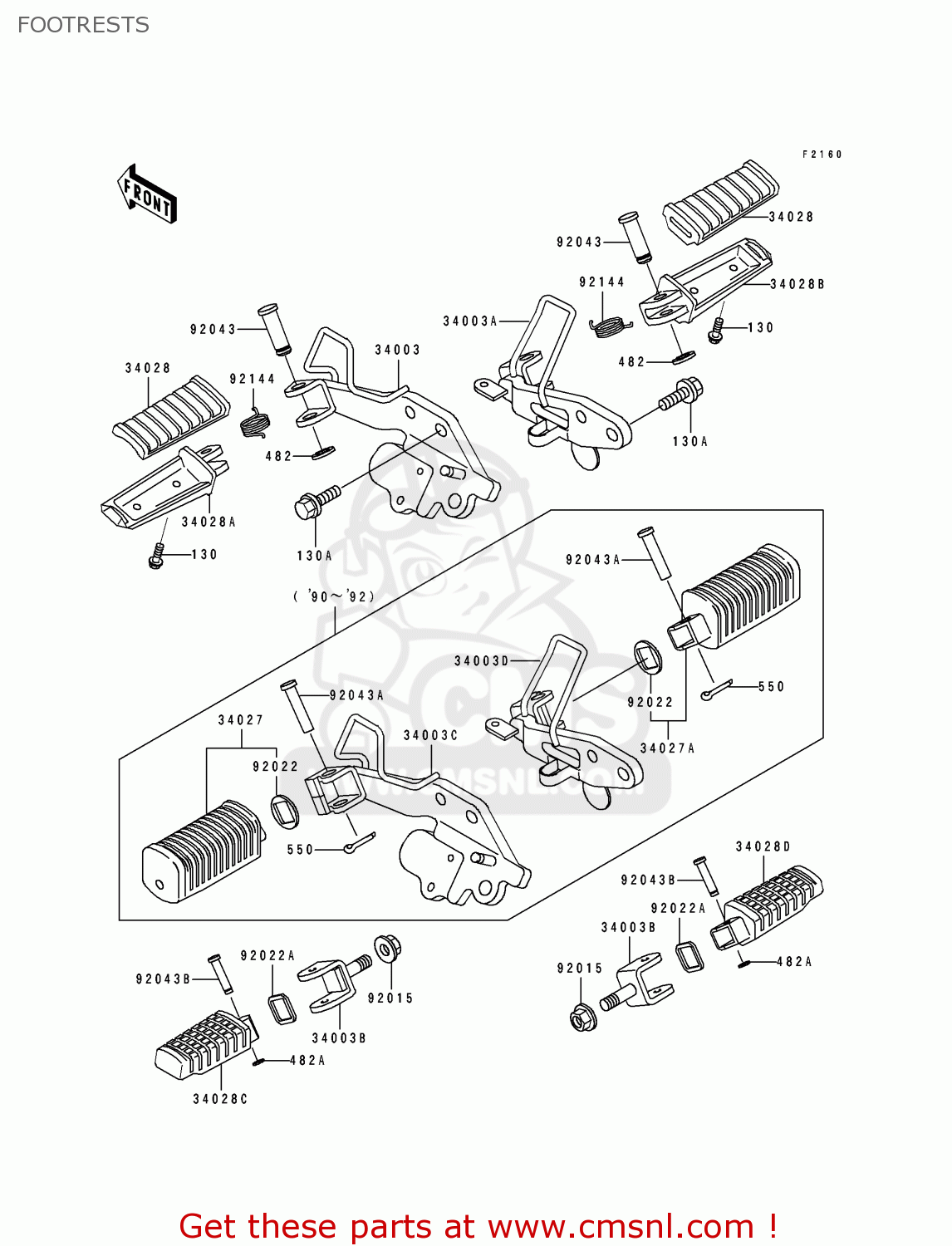

Footrests diagram EL250D5 ELIMINATOR 1994 UNITED KINGDOM NL FG GR IT SD

FOOTRESTS EL250D5 ELIMINATOR 1994 UNITED KINGDOM NL FG GR IT SD
FOOTRESTS EL250D5 ELIMINATOR 1994 UNITED KINGDOM NL FG GR IT SD
FOOTRESTS EL250D5 ELIMINATOR 1994 UNITED KINGDOM NL FG GR IT SD
prices are in EUR
ref
part #
description
quantity
130
130B0510
ref: 130
GRITNLUK
BOLT-FLANGED
130B0510
€ 1.50
130A
130J1025
ref: 130A
BOLT-FLANGED,10X25
€ 3.00
482
482L0100
ref: 482
GRITNLUK
CIRCLIP-TYPE-E,10MM
482L0100
€ 0.50
482A
482L5000
ref: 482A
CIRCLIP-TYPE-E,5MM
482L5000
€ 1.00
550
550D2515
ref: 550
FGSD
PIN COTTER,295X15
550D2515
€ 0.50
34003
340031300
ref: 34003
GRITNLUK
HOLDER-STEP,FR,LH
€ 86.50
34003A
340031301
ref: 34003A
GRITNLUK
HOLDER-STEP,FR,RH
€ 58.50
34003B
340031302
ref: 34003B
HOLDER-STEP,RR
340031302
€ 14.50
34003C
340031305
ref: 34003C
FGSD
HOLDER-STEP,FR,LH
€ 62.50
34003D
340031306
ref: 34003D
FGSD
HOLDER-STEP,FR,RH
€ 46.50
34027
340271106
ref: 34027
FGSD
STEP-ASSY,FR,LH
340271106
€ 29.00
34027A
340271107
ref: 34027A
FGSD
STEP-ASSY,FR,RH
340271107
€ 29.00
34028
340281132
ref: 34028
GRITNLUK
STEP,FR,RUBBER
340281132
€ 20.50
34028A
340281160
ref: 34028A
GRITNLUK
STEP,FR,LH
340281160
€ 20.00
34028B
340281161
ref: 34028B
GRITNLUK
STEP,FR,RH
340281161
€ 42.00
34028C
340281195
ref: 34028C
STEP,RR,LH
340281195
€ 36.50
34028D
340281196
ref: 34028D
STEP,RR,RH
340281196
€ 36.50
92015
920151428
ref: 92015
NUT,FLANGED,10MM
920151428
€ 3.00
92022
920221314
ref: 92022
FGSD
WASHER,STEP FITTING
920221314
€ 3.00
92022A
920221797
ref: 92022A
WASHER,STEP FITTING
920221797
€ 3.50
92043
920431144
ref: 92043
GRITNLUK
PIN,12X37
920431144
€ 6.50
92043A
92043115
ref: 92043A
FGSD
PIN,FOOTREST BAR FIT
92043115
€ 6.50
92043B
920431327
ref: 92043B
PIN
920431327
€ 3.00
92144
921441568
ref: 92144
GRITNLUK
SPRING,STEP RETURN,RH
921441568
€ 4.00
