BATTERY CASE

EL250D5 ELIMINATOR 1994 UNITED KINGDOM NL FG GR IT SD

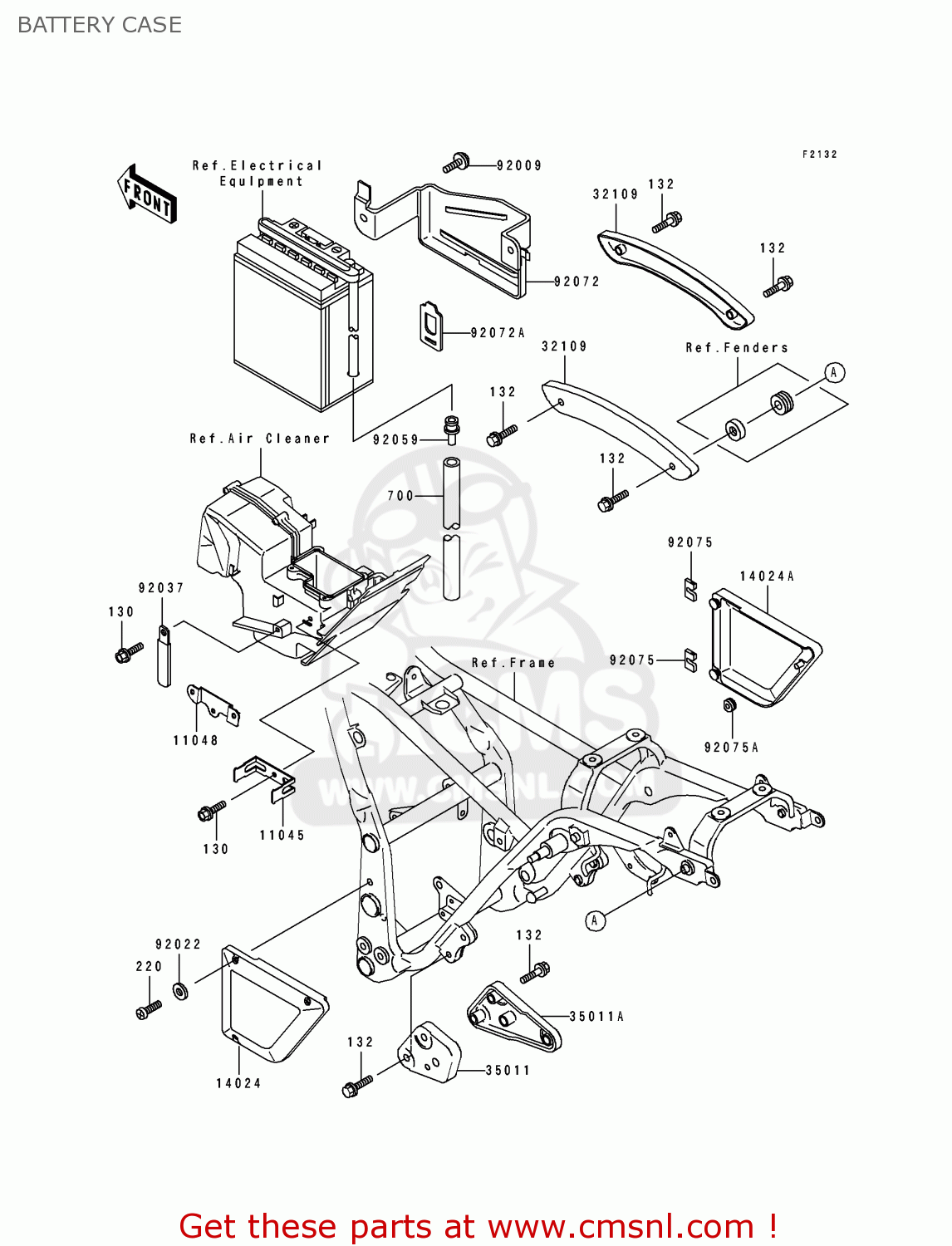

Battery case diagram EL250D5 ELIMINATOR 1994 UNITED KINGDOM NL FG GR IT SD

prices are in EUR

ref

part #

description

quantity

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

132

132E0835
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

220

220C0520
ref: 220

SCREW-PAN-CROS

€ 0.50

700

700Q05600
ref: 700

TUBE-VINYL,5X600

€ 1.50

11048

110481328
ref: 11048

BRACKET,IGNITER

€ 14.50

14024

1402415976Z
ref: 14024

COVER,SIDE,LWR,LH,BLA

€ 56.50

14024A

1402415986Z
ref: 14024A

COVER,SIDE,LWR,RH,BLA

€ 55.00

32109

321091169
ref: 32109

GRIP-FRAME

€ 58.00

35011

350111371
ref: 35011

STAY,MUFFLER,LH

€ 39.00

35011A

350111372
ref: 35011A

STAY,MUFFLER,RH

€ 42.00

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92059

920591715
ref: 92059

TUBE,BATTERY VENT HOS

€ 3.50

92072

920721224
ref: 92072

BAND,BATTERY

€ 10.00

92072A

920721228
ref: 92072A

BAND,TOOL

€ 6.00

92075

920751967
ref: 92075

DAMPER

€ 3.50

92075A

920751986
ref: 92075A

DAMPER

€ 3.00
