REAR HUB
EL250D1 ELIMINATOR 1990 FG

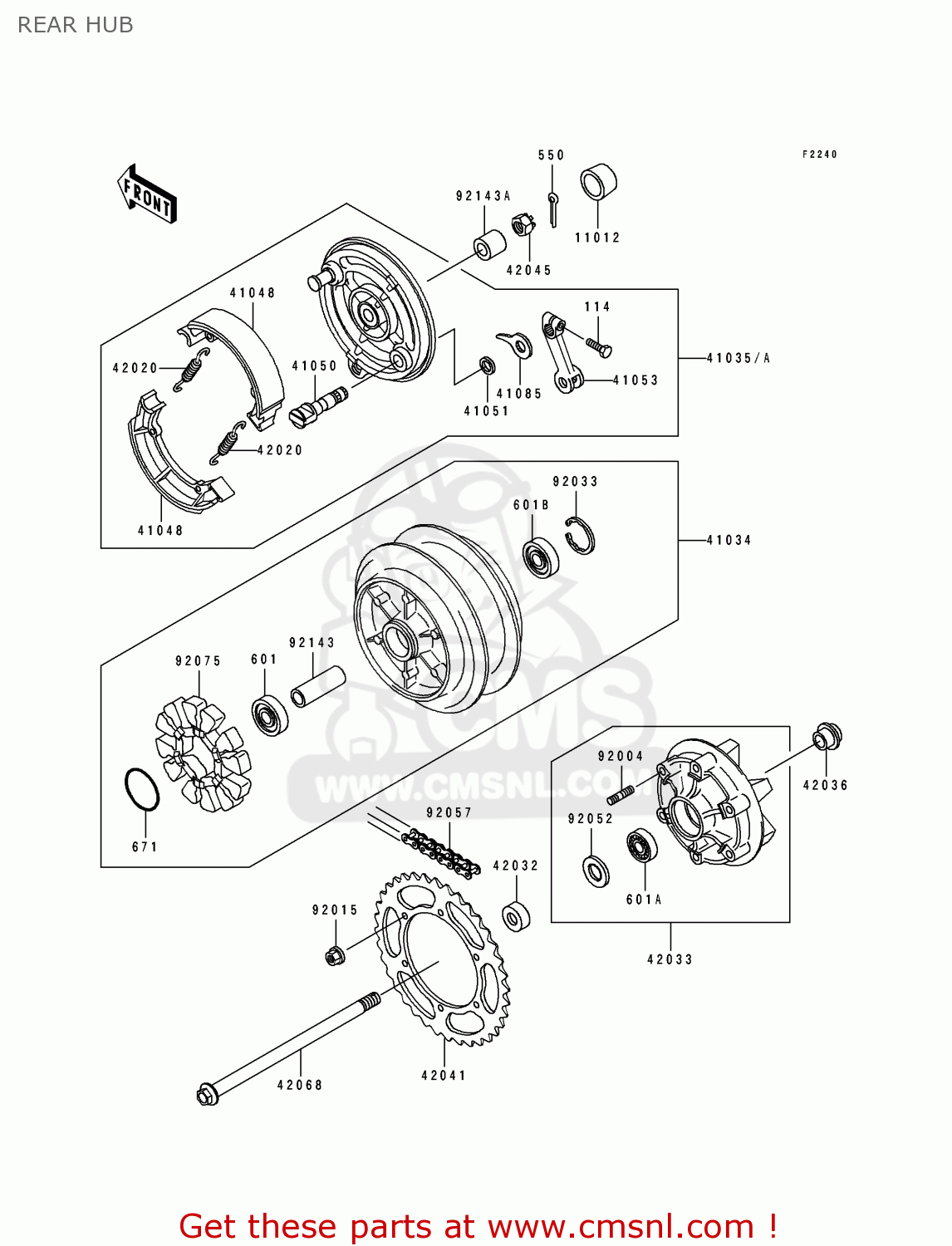

Rear hub diagram EL250D1 ELIMINATOR 1990 FG
REAR HUB EL250D1 ELIMINATOR 1990 FG
×
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6203ZZ
ref: 601
BEARING-BALL,#6203ZZC
€ 16.50
601A
601B6205G
ref: 601A
BEARING BALL
€ 14.00
601B
601B6303ZZ
ref: 601B
BEARING-BALL,#6303ZZC
€ 32.50
671
671B2550
ref: 671
O RING,50MM
€ 1.50
11012
110121592
ref: 11012
CAP,AXLE NUT
€ 5.00
41034
410341189
ref: 41034
DRUM-ASSY,RR BRAKE
€ 887.00
41035
410351251
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 223.00
41048
410481069
ref: 41048
SHOE-BRAKE (NAS)
€ 26.00
41050
410501065
ref: 41050
CAM-BRAKE
€ 29.00
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
€ 2.50
41053
410531068
ref: 41053
LEVER-BRAKE CAM
€ 49.00
41068
410681192
ref: 41068
AXLE,RR
€ 65.50
41085
410851060
ref: 41085
INDICATOR
€ 9.00
42020
42020004
ref: 42020
SPRING-BRAKE SHOE
€ 5.50
42032
42032068
ref: 42032
COLLAR,17X35X17.5
€ 18.00
42033
420331107
ref: 42033
COUPLING-ASSY,RR HUB
€ 222.50
42036
420361055
ref: 42036
SLEEVE,L=25
€ 19.00
42041
420411292
ref: 42041
SPROCKET-HUB,44T
€ 38.50
42045
42045014
ref: 42045
NUT CASTLE, 16M/M
€ 6.50
92004
920041111
ref: 92004
STUD,10X21
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
€ 3.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92052
92052006
ref: 92052
OIL SEAL WTC35527
€ 6.50
92057
920571240
ref: 92057
CHAIN,DRIVE,EK520SV-O
€ 80.00
92075
920751436
ref: 92075
DAMPER,RR HUB SHOCK
€ 65.00
92143
921431124
ref: 92143
COLLAR,17.2X25X105
€ 14.00
92143A
921431125
ref: 92143A
COLLAR,17.2X30X23.5
€ 7.50
