HEADLIGHT(S)
EL250D1 ELIMINATOR 1990 FG

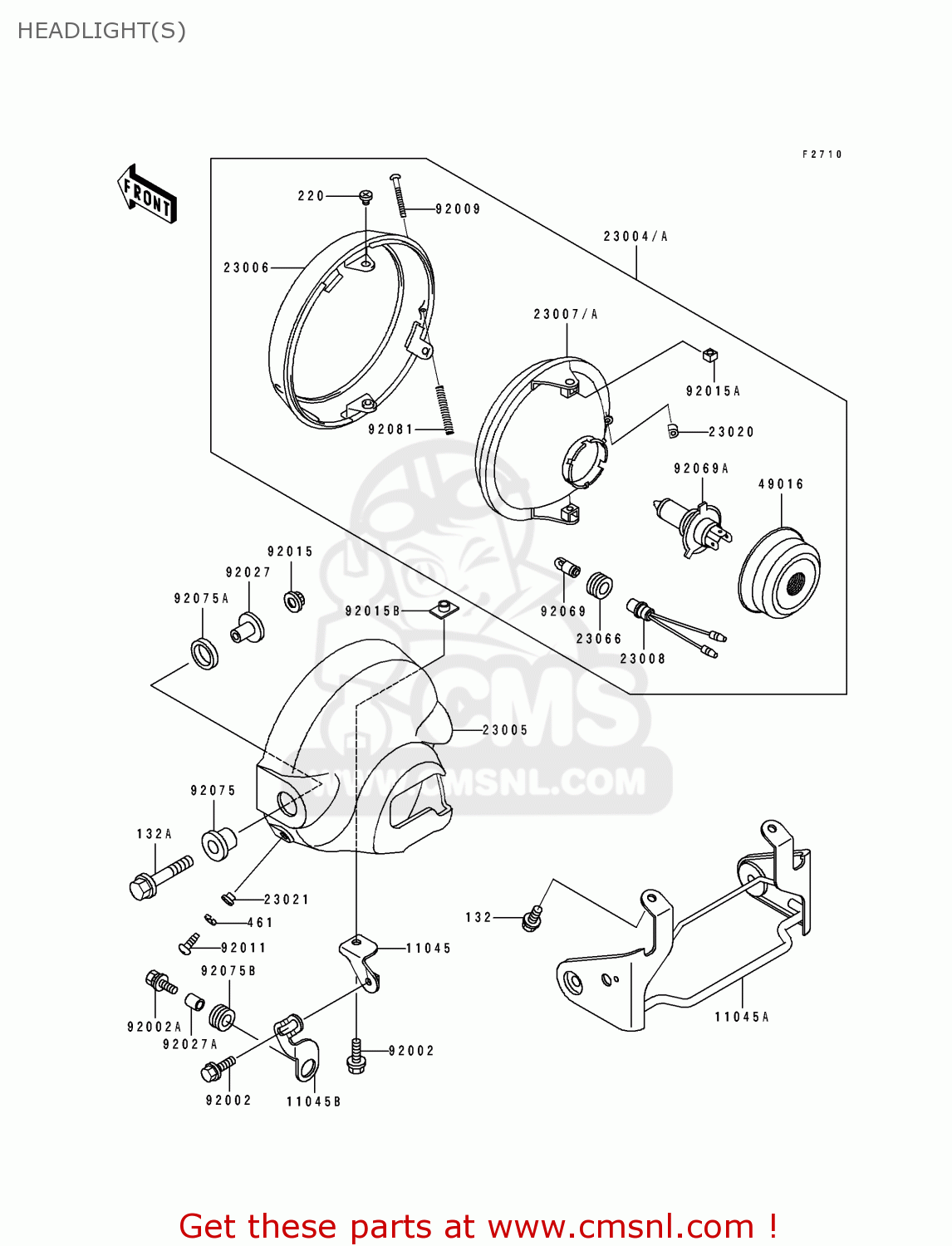

Headlight(s) diagram EL250D1 ELIMINATOR 1990 FG
HEADLIGHT(S) EL250D1 ELIMINATOR 1990 FG
×
prices are in EUR
ref
part #
description
quantity
132
132E0616
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132E0840
ref: 132A
BOLT-FLANGED-SMALL
€ 4.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
11045
110451215
ref: 11045
BRACKET,HEAD LAMP BOD
€ 5.50
11045A
110451943
ref: 11045A
BRACKET,HEAD LAMP STA
€ 62.00
11045B
110451970
ref: 11045B
BRACKET,HEAD LAMP,LWR
€ 6.00
23004A
230041316
ref: 23004A
LAMP-HEAD
€ 451.50
23005
230051058
ref: 23005
BODY-COMP-HEAD LAMP,C
€ 72.50
23006
230061055
ref: 23006
RIM-LAMP
€ 55.00
23007A
230071266
ref: 23007A
LENS-COMP,HEAD LAMP
€ 108.50
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23021
23021010
ref: 23021
WASHER
€ 2.50
23066
23066008
ref: 23066
DAMPER,PARKING LAMP
€ 3.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92002
920021124
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021137
ref: 92002A
BOLT,6X25
€ 2.50
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
€ 2.00
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151157
ref: 92015A
NUT,5MM
€ 3.50
92015B
920151231
ref: 92015B
NUT,6MM,HEAD LAMP
€ 6.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92075B
92075209
ref: 92075B
DAMPER RUBBER
€ 3.00
92081
920811701
ref: 92081
SPRING,FOCUS ADJUSTIN
€ 3.00
