STARTER MOTOR
EL250B3 ELIMINATOR 1989 USA CALIFORNIA

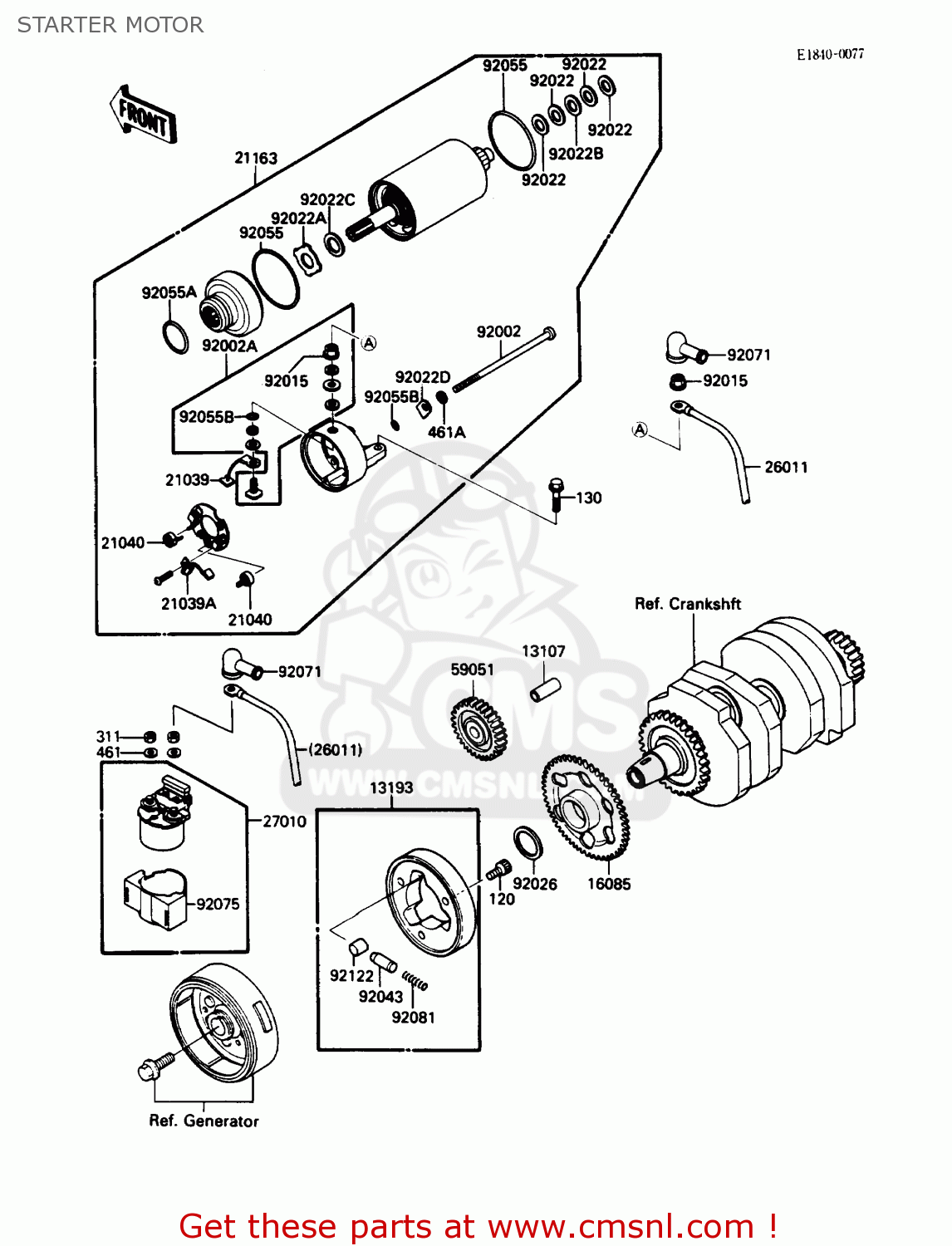

Starter motor diagram EL250B3 ELIMINATOR 1989 USA CALIFORNIA
STARTER MOTOR EL250B3 ELIMINATOR 1989 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120P0814
ref: 120
BOLT-SOCKET,8X14
€ 3.00
130
130J0620
ref: 130
BOLT-FLANGED,6X20
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461K0500
ref: 461A
WASHER-SPRING,5MM,BLA
€ 0.50
13107
131071176
ref: 13107
SHAFT,7.8X12X26.5
€ 6.50
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
16085
160851166
ref: 16085
GEAR,ONEWAY CLUTCH,65
€ 121.00
21039
210391001
ref: 21039
BRUSH,CARBON(+)
€ 21.50
21039A
210391056
ref: 21039A
BRUSH,CARBON(-)
€ 20.50
21040
210401053
ref: 21040
SPRING-BRUSH
€ 6.50
21163
211631136
ref: 21163
STARTER-ELECTRIC
€ 506.00
26011
260111411
ref: 26011
WIRE-LEAD,STARTER
€ 55.00
27010
270101213
ref: 27010
SWITCH,MAGNETIC
€ 111.00
59051
590511154
ref: 59051
GEAR-SPUR,IDLE
€ 101.50
92002
920021818
ref: 92002
BOLT,STARTER
€ 5.00
92002A
920021819
ref: 92002A
BOLT,TERMINAL
€ 17.50
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221130
ref: 92022A
WASHER,THRUST SUPPORT
€ 4.00
92022B
920221132
ref: 92022B
WASHER,9.1X18X0.8
€ 4.00
92022C
920221714
ref: 92022C
WASHER,22X12.2X0.5
€ 2.50
92022D
920221825
ref: 92022D
WASHER,LOCK
€ 4.00
92026
920261004
ref: 92026
SPACER,25X40X1
€ 4.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551042
ref: 92055
RING-O,56MM
€ 3.50
92055A
920551303
ref: 92055A
RING-O
€ 7.50
92055B
920551370
ref: 92055B
RING-O,4.5X2.0
€ 3.00
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
