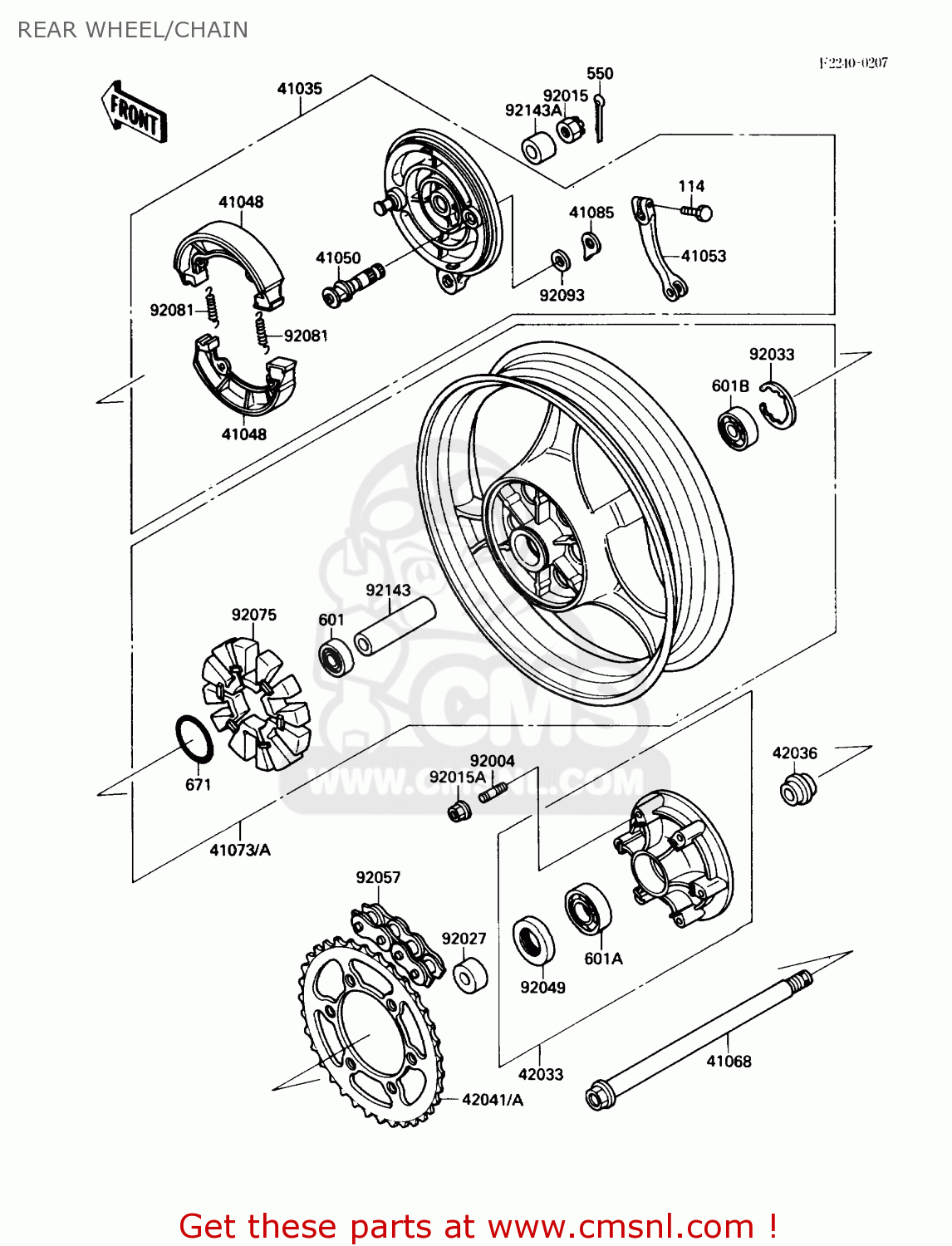

REAR WHEEL/CHAIN

ref

part #

description

quantity

114

114G0828
ref: 114

BOLT-SMALL,8X28

€ 2.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6203ZZ
ref: 601

BEARING-BALL,#6203ZZC

€ 16.50

601A

601B6205G
ref: 601A

BEARING BALL

€ 14.00

601B

601B6303ZZ
ref: 601B

BEARING-BALL,#6303ZZC

€ 32.50

671

671B2550
ref: 671

O RING,50MM

€ 1.50

41035

410351229
ref: 41035

REAR BRAKE PANEL ASSEMBLY

€ 366.00

41048

410481062
ref: 41048

SHOE-BRAKE

€ 26.00

41050

410501065
ref: 41050

CAM-BRAKE

€ 29.00

41053

410531068
ref: 41053

LEVER-BRAKE CAM

€ 49.00

41068

410681192
ref: 41068

AXLE,RR

€ 65.50

41073

410731370CW
ref: 41073

WHEEL ASSEMBLY,REAR,FIRECRACKER RED

€ 433.00

41085

410851060
ref: 41085

INDICATOR

€ 9.00

42033

420331107
ref: 42033

COUPLING-ASSY,RR HUB

€ 222.50

42036

420361055
ref: 42036

SLEEVE,L=25

€ 19.00

42041

420411292
ref: 42041

SPROCKET-HUB,44T

€ 38.50

42041A

420411293
ref: 42041A

SPROCKET-HUB,44T

€ 38.50

92004

920041111
ref: 92004

STUD,10X21

€ 6.50

92015

42045014
ref: 92015

NUT CASTLE, 16M/M

€ 6.50

92015A

920151335
ref: 92015A

NUT,FLANGED,10MM

€ 1.50

92027

42032068
ref: 92027

COLLAR,17X35X17.5

€ 18.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92049

92052006
ref: 92049

OIL SEAL WTC35527

€ 6.50

92057

920571240
ref: 92057

CHAIN,DRIVE,EK520SV-O

€ 80.00

92075

920751436
ref: 92075

DAMPER,RR HUB SHOCK

€ 65.00

92081

42020004
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

92093

41051003
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

92143

921431124
ref: 92143

COLLAR,17.2X25X105

€ 14.00

92143A

921431125
ref: 92143A

COLLAR,17.2X30X23.5

€ 7.50
