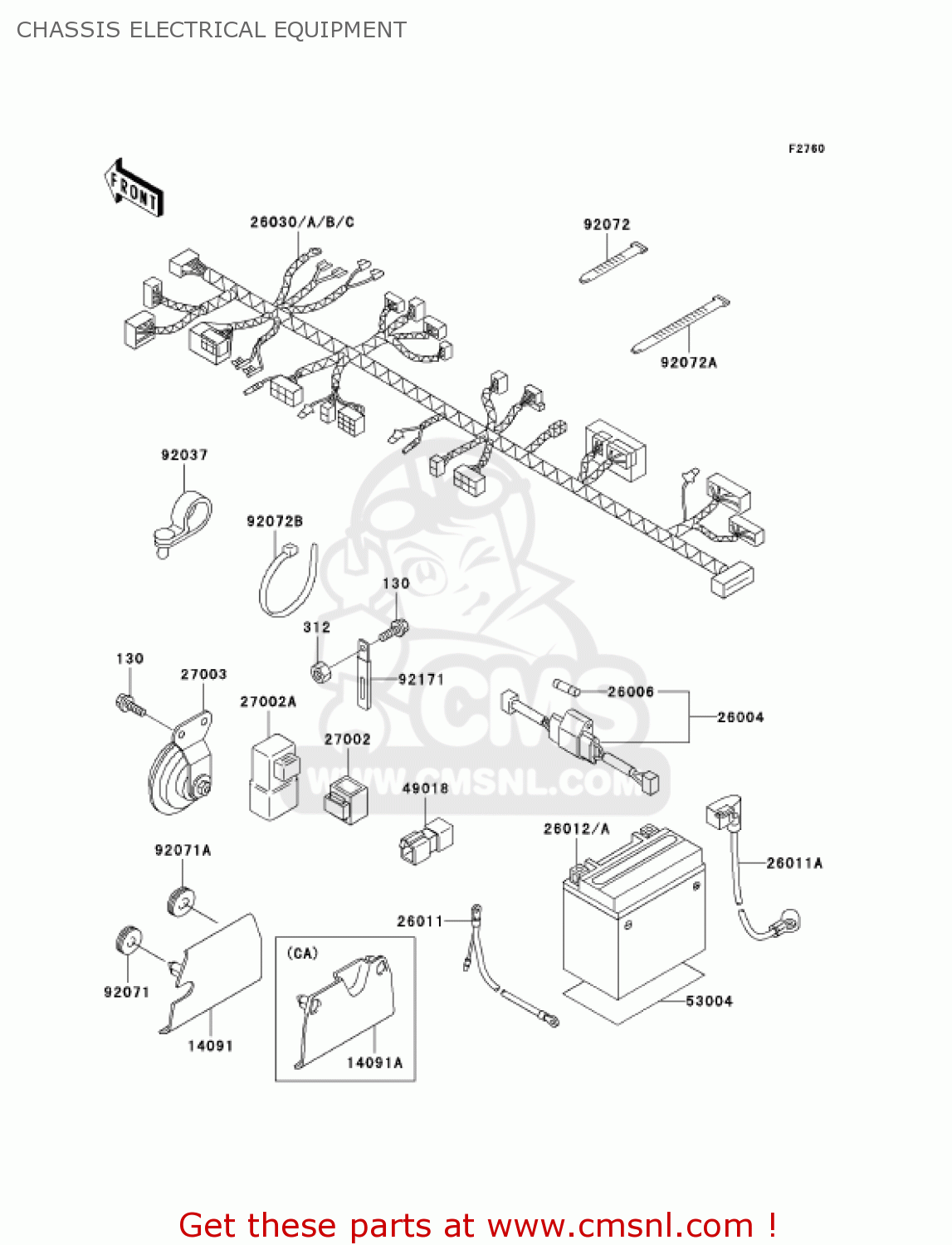

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

312

312C0600
ref: 312

NUT-HEX,6MM,BLACK

€ 2.50

14091

140911123
ref: 14091
[CN,US

COVER,HEAD GUSSET

€ 4.00

14091A

140911405
ref: 14091A
[CA]

COVER,HEAD GUSSET

€ 1.50

26004

260041113
ref: 26004

FUSE-ASSY

€ 33.00

26006

260061003
ref: 26006

FUSE,15A,L=30M/M

€ 3.00

26011

260111670
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 16.00

26011A

260111674
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 29.50

26012

260120051
ref: 26012

BATTERY,FB9-B,12V 9AH

€ 39.50

26012A

260121361
ref: 26012A

BATTERY,YB9-B,12V 9AH

€ 64.50

26030B

260301992
ref: 26030B
[CN,US

HARNESS,MAIN

€ 63.00

26030C

260301993
ref: 26030C
[CA]

HARNESS,MAIN

€ 52.50

27002

270021053
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 33.50

27002A

270021086
ref: 27002A

RELAY-ASSY

€ 23.00

27003

270031423
ref: 27003

HORN

€ 59.50

49018

490181052
ref: 49018

DIODE

€ 35.50

53004

530041123
ref: 53004

MAT,BATTERY

€ 3.00

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92071

92071056
ref: 92071

GROMMET

€ 2.50

92071A

920711043
ref: 92071A

GROMMET,SIDE COVER

€ 3.50

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

920721195
ref: 92072A

BAND,L=185

€ 1.00

92072B

920721197
ref: 92072B

BAND

€ 5.00

92171

921711425
ref: 92171

CLAMP,WIRING HARNESS,

€ 1.50

all assemblies
