Genuine BN Kawasaki Parts delivered quickly!
home
CYLINDER HEAD
BN125A6 ELIMINATOR 2003 USA CANADA

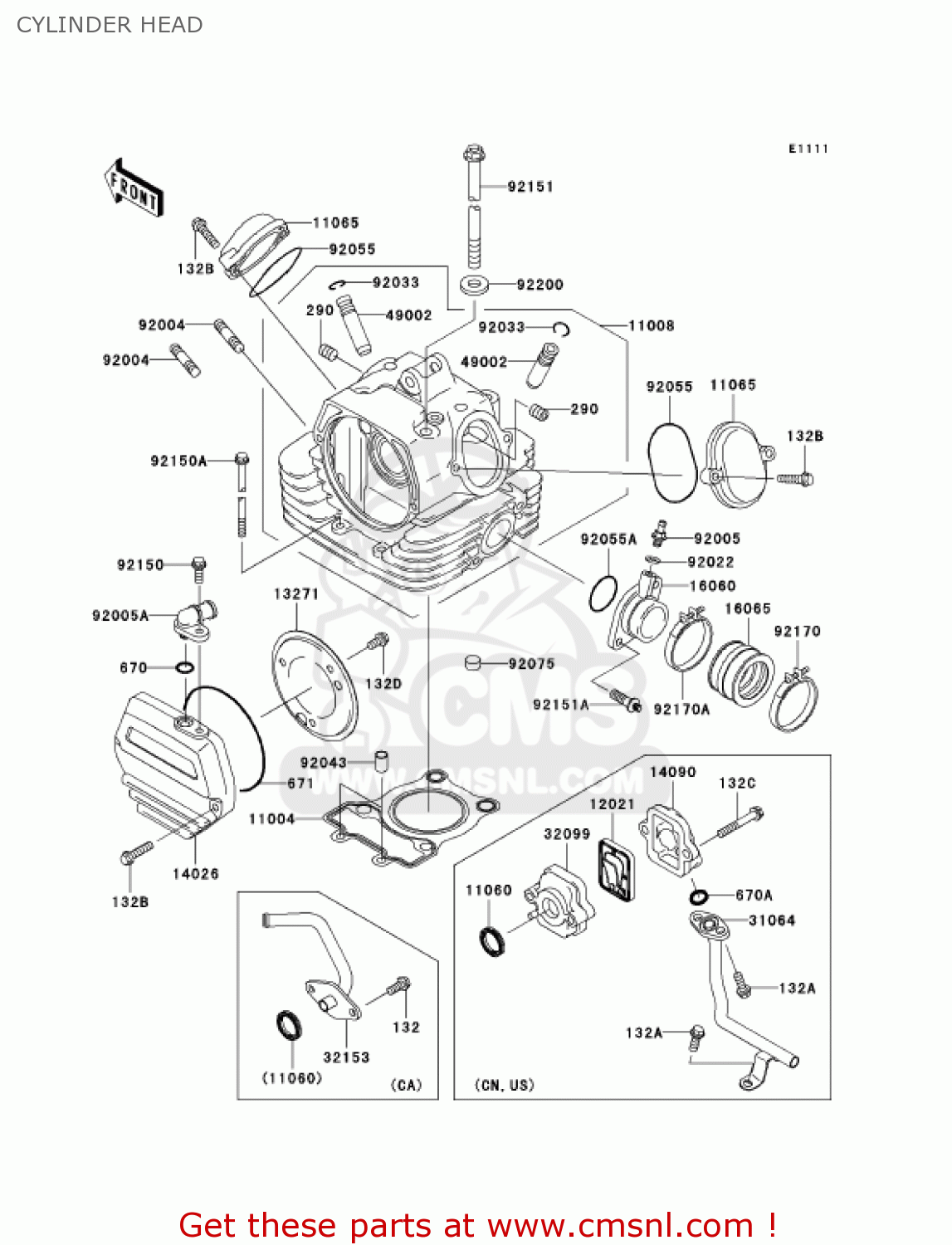

Cylinder head diagram BN125A6 ELIMINATOR 2003 USA CANADA
CYLINDER HEAD BN125A6 ELIMINATOR 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132A
132V0616
ref: 132A
BOLT-FLANGED-SMALL,6X
€ 1.00
132B
132V0625
ref: 132B
BOLT-FLANGED-SMALL,6X
€ 2.00
132C
132V0640
ref: 132C
BOLT-FLANGED-SMALL,6X
€ 2.50
11004
110041335
ref: 11004
GASKET-HEAD (NAS)
€ 18.50
11008
110081384
ref: 11008
HEAD-COMP-CYLINDER
€ 475.00
11060
110601815
ref: 11060
GASKET,REED VALVE (NAS)
€ 5.00
11065
110651071
ref: 11065
CAP,ROCKER CASE
€ 10.50
12021
120211102
ref: 12021
VALVE-ASSY-REED
€ 58.00
13271
132711109
ref: 13271
PLATE,BREATHER
€ 7.50
14026
140261256
ref: 14026
COVER-CHAIN,CAM SPROC
€ 23.00
14090
140901852
ref: 14090
COVER,REED VALVE
€ 16.00
16060
160601084
ref: 16060
PIPE-INTAKE
€ 45.50
16065
160651335
ref: 16065
HOLDER-CARBURETOR
€ 15.00
31064
310641205
ref: 31064
PIPE-COMP
€ 76.00
32099
320991187
ref: 32099
CASE,REED VALVE
€ 21.00
49002
490021116
ref: 49002
GUIDE-VALVE
€ 23.00
92004
920041121
ref: 92004
STUD,8X30
€ 3.50
92005
920051337
ref: 92005
FITTING
€ 17.50
92005A
920051342
ref: 92005A
FITTING,BREATHER
€ 27.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92033
920331247
ref: 92033
RING-SNAP
€ 2.00
92043
920434009
ref: 92043
PIN,10.1X12X14
€ 4.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551256
ref: 92055A
RING-O,32MM
€ 9.00
92075
920751089
ref: 92075
DAMPER
€ 4.50
92150
921501394
ref: 92150
BOLT,6X16
€ 2.00
92150A
921501986
ref: 92150A
BOLT,6X110
€ 2.50
92151
921511092
ref: 92151
BOLT,9X228.5
€ 7.50
92151A
921511726
ref: 92151A
BOLT,6X18
€ 3.00
92170
921701094
ref: 92170
CLAMP,CARBURETOR HOLD
€ 8.50
92170A
921701527
ref: 92170A
CLAMP,43MM
€ 12.00
92200
922001037
ref: 92200
WASHER,9.5X18X1.2
€ 2.00
132D
132Y0612
ref: 132D
BOLT-FLANGED-SMALL
€ 1.50
290
290Q0606
ref: 290
SCREW,6X6
€ 3.00
670
670B1510
ref: 670
O RING,9.8X1.9
€ 2.50
670A
670B2010
ref: 670A
O RING,10MM
€ 1.00
671
671E2595
ref: 671
O RING
€ 5.50
