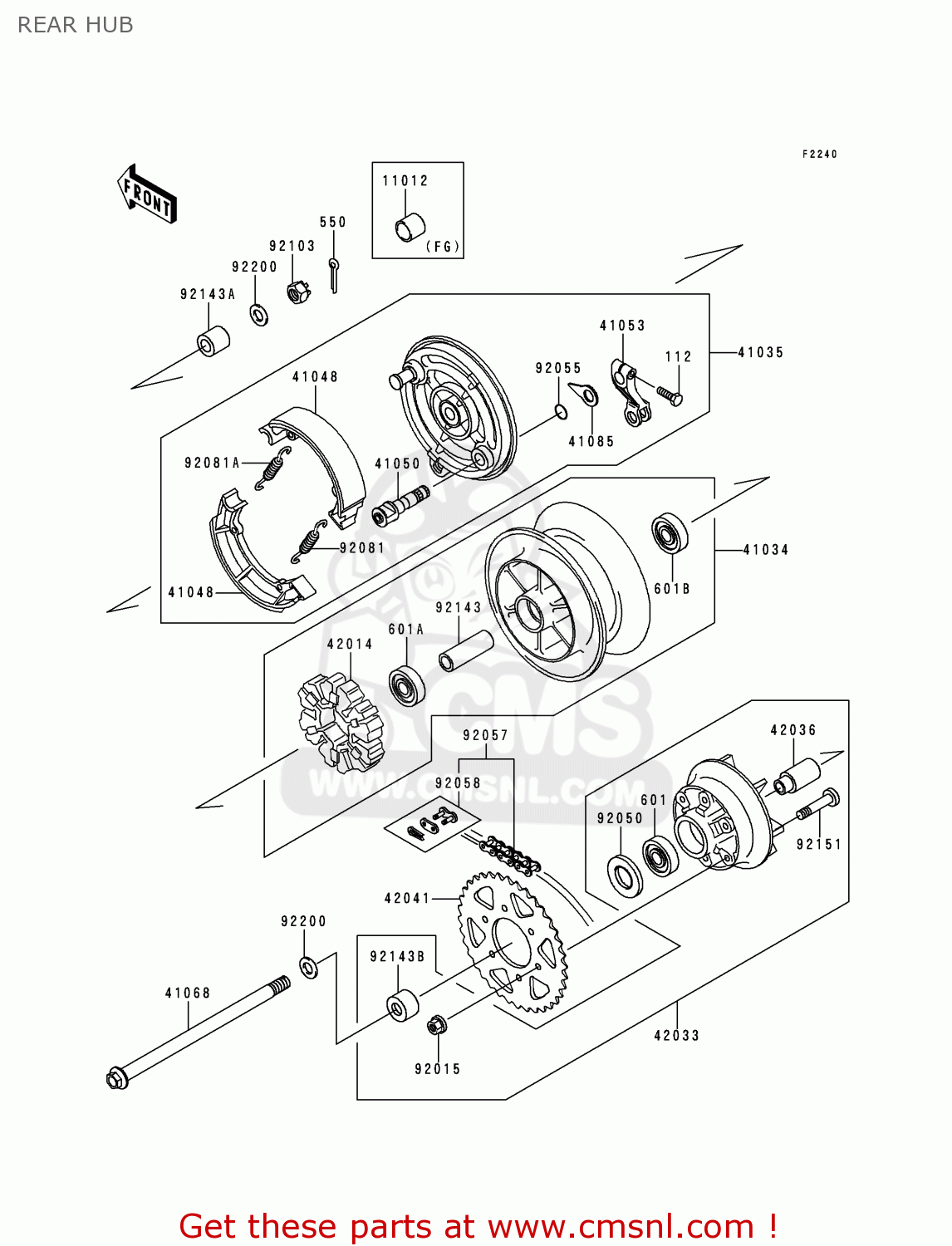

REAR HUB

ref

part #

description

quantity

112

112P0622
ref: 112

BOLT-UPSET,6X22

€ 1.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

601A

601B6202UU
ref: 601A

BEARING-BALL

€ 21.00

601B

601B6302UU
ref: 601B

BEARING-BALL,#6302UU

€ 21.50

11012

110121592
ref: 11012
FG

CAP,AXLE NUT

€ 5.00

41034

410341278
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 237.50

41035

410351493
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 345.50

41048

410481076
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41050

410501095
ref: 41050

CAM-BRAKE

€ 21.00

41053

410531087
ref: 41053

LEVER-BRAKE CAM

€ 37.50

41068

410681392
ref: 41068

AXLE,RR

€ 35.50

41085

41085013
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42014

42014030
ref: 42014

DAMPER,REAR HUB SHOCK

€ 7.50

42033

420331190
ref: 42033

COUPLING-ASSY,RR HUB

€ 127.00

42036

42036030
ref: 42036

SLEEVE,REAR HUB COPLG

€ 21.50

42041

420411493
ref: 42041

SPROCKET-HUB,46T

€ 38.50

92015

920151668
ref: 92015

NUT

€ 3.00

92050

92050060
ref: 92050

OIL SEAL,RR HUB BRNK

€ 12.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571331
ref: 92057

CHAIN,DRIVE,EK428SH-R

€ 34.00

92058

920581058
ref: 92058

JOINT-CHAIN

€ 5.50

92081

920811550
ref: 92081

SPRING,BRAKE SHOE

€ 6.00

92081A

920811766
ref: 92081A

SPRING,BRAKE SHOE

€ 5.50

92103

92103006
ref: 92103

NUT,CASTLE,14MM

€ 9.00

92143

921431014
ref: 92143

COLLAR,REAR BRAKE DRU

€ 7.00

92143A

921431950
ref: 92143A

COLLAR,RR AXLE,L=34.5

€ 12.50

92143B

921431951
ref: 92143B

COLLAR,RR HUB COUPLIN

€ 9.50

92151

921511320
ref: 92151

BOLT

€ 2.00

92200

922001366
ref: 92200

WASHER,15X30X3.2

€ 2.50
