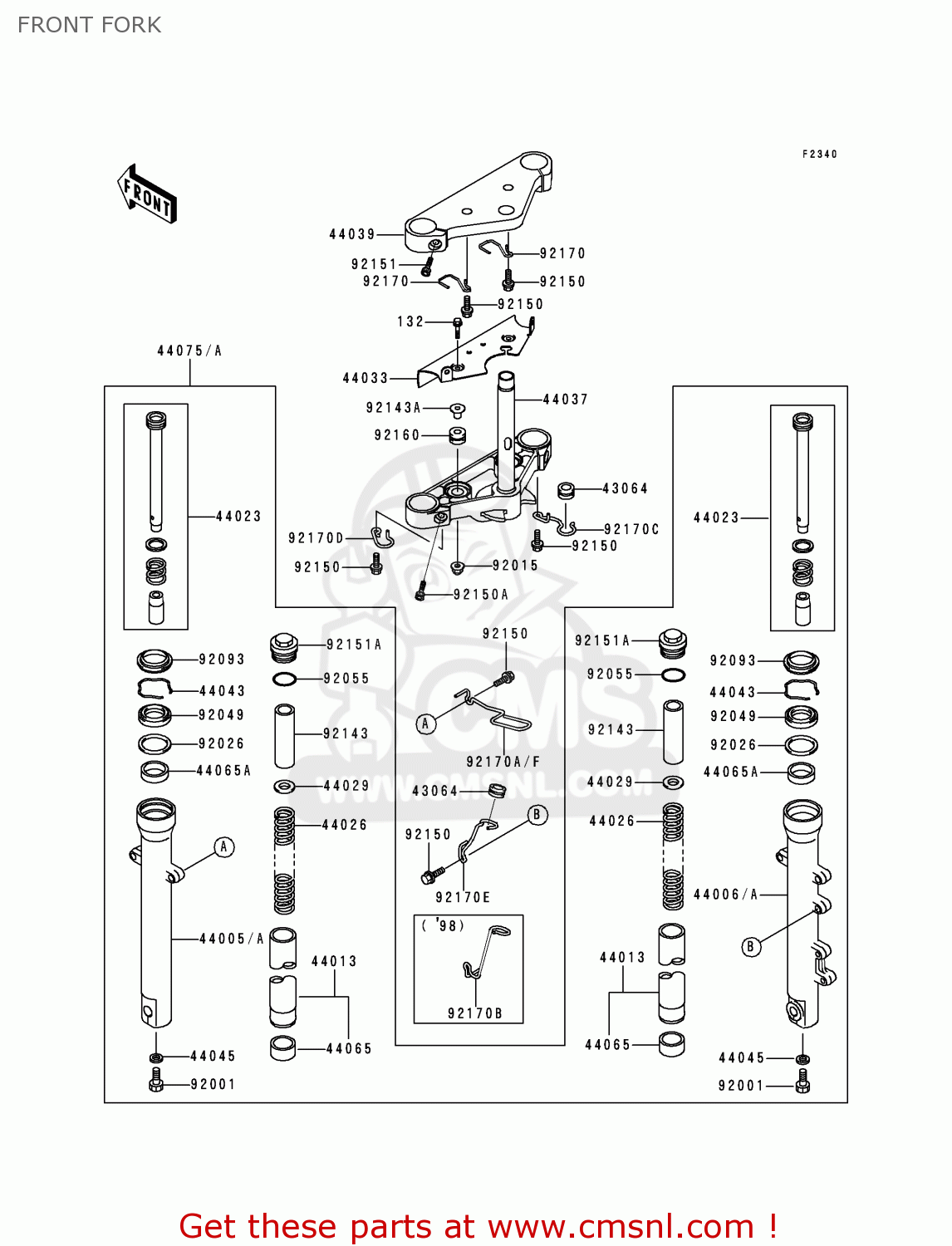

FRONT FORK

ref

part #

description

quantity

132

132E0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

43064

43064006
ref: 43064

GROMMET,BRAKE HOSE

€ 2.50

44005

440051382
ref: 44005

PIPE-LEFT FORK OUTER

€ 278.00

44006

440061381
ref: 44006

PIPE-RIGHT FORK OUTER

€ 278.00

44013

440131444
ref: 44013

PIPE-FORK INNER

€ 149.00

44023

440231120
ref: 44023

CYLINDER-SET-FORK

€ 54.50

44026

440261654
ref: 44026

SPRING-FRONT FORK

€ 25.00

44029

440291136
ref: 44029

SEAT-FORK SPRING

€ 13.50

44033

440331226
ref: 44033

COVER-FORK

€ 21.50

44037

440371361
ref: 44037

HOLDER-FORK UNDER

€ 285.50

44039

440391275
ref: 44039

HOLDER-FORK UPPER

€ 201.00

44043

44043057
ref: 44043

RING,OIL SEAL STOPER

€ 4.00

44045

44045051
ref: 44045

GASKET,FORK CYLINDER (NAS)

€ 4.00

44065

440651123
ref: 44065

BUSHING-FRONT FORK,IN

€ 12.50

44065A

440651124
ref: 44065A

BUSHING-FRONT FORK,OU

€ 10.00

44075

440751060
ref: 44075

DAMPER-SET-FORK

€ 1,312.50

92001

920011464
ref: 92001

BOLT

€ 4.00

92015

920151385
ref: 92015

NUT,CAP,6MM

€ 2.50

92026

920261365
ref: 92026

SPACER

€ 6.50

92049

920491340
ref: 92049

SEAL-OIL FORK OUT TUB

€ 13.50

92055

920551367
ref: 92055

RING-O,FORK TOP

€ 3.00

92093

920931280
ref: 92093

SEAL,FORK OUTER TUBE

€ 13.50

92143

921431311
ref: 92143

COLLAR,FORK

€ 7.50

92143A

921431683
ref: 92143A

COLLAR,L=12

€ 4.00

92150

921501340
ref: 92150

BOLT,6X14

€ 3.00

92150A

921501387
ref: 92150A

BOLT,SOCKET,10X25

€ 3.50

92151

921511261
ref: 92151

BOLT

€ 3.00

92151A

921511262
ref: 92151A

BOLT,FORK TOP

€ 30.00

92160

921601167
ref: 92160

DAMPER,10X20X12

€ 3.00

92170

921701769
ref: 92170

CLAMP,CABLE

€ 5.50

92170A

921701770
ref: 92170A

CLAMP,CABLE

€ 5.50

92170B

921701771
ref: 92170B

CLAMP,BRAKE HOSE

€ 6.00

92170C

921701840
ref: 92170C

CLAMP,HOSE

€ 10.00

92170D

921701841
ref: 92170D

CLAMP,CABLE

€ 6.00

all assemblies
