ENGINE COVER(S)
BJ250C3 ESTRELLA 1997 AUSTRIA

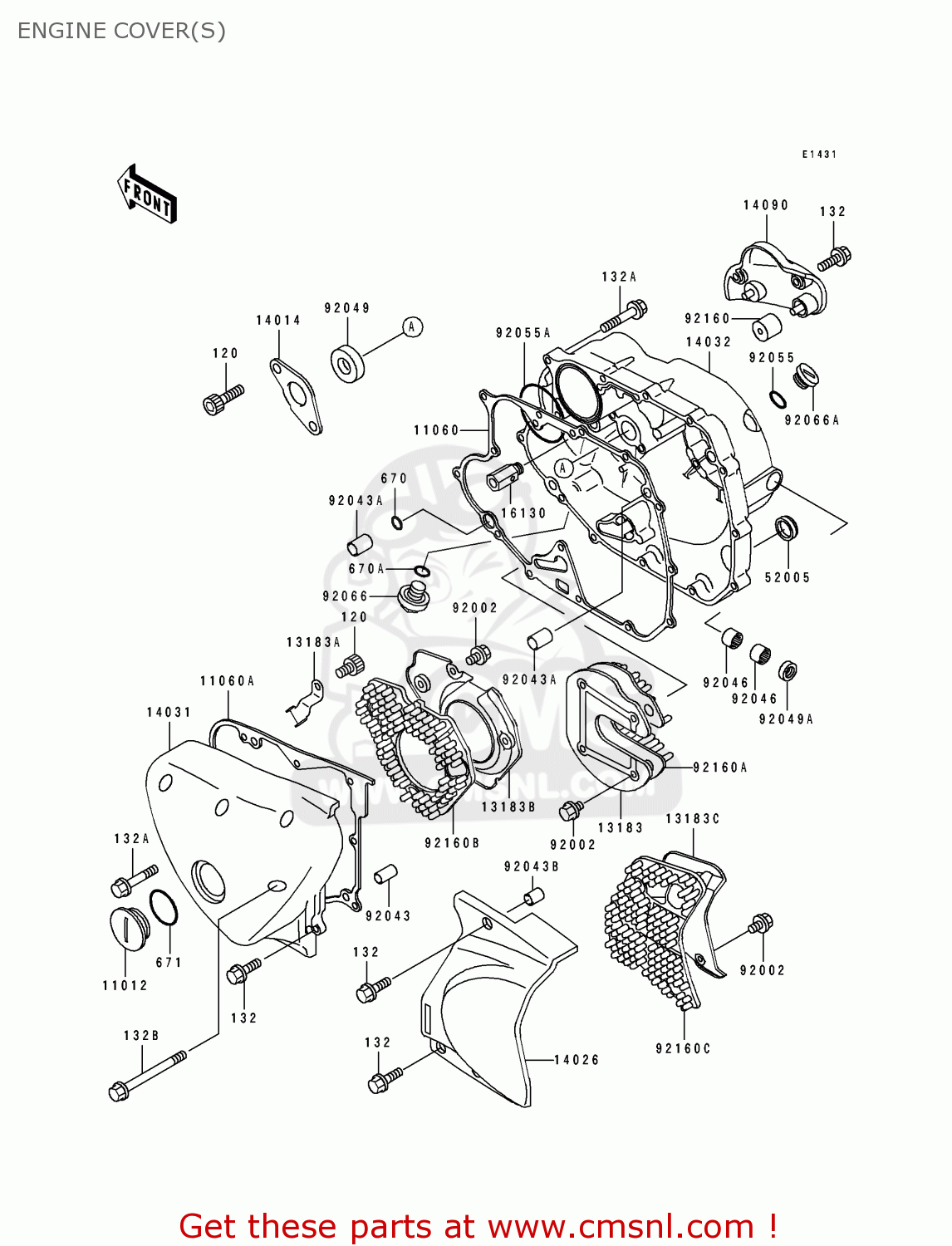

Engine cover(s) diagram BJ250C3 ESTRELLA 1997 AUSTRIA
ENGINE COVER(S) BJ250C3 ESTRELLA 1997 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
120
120P0610
ref: 120
BOLT-SOCKET,6X10
€ 1.00
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132E0630
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132E0660
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
670
670B2010
ref: 670
O RING,10MM
€ 1.00
670A
670B2011
ref: 670A
O RING,11MM
€ 1.00
671
671B2540
ref: 671
O RING,40MM
€ 4.00
11012
110121817
ref: 11012
CAP,GENERATOR
€ 23.50
11060
110601274
ref: 11060
GASKET,CLUTCH COVER (NAS)
€ 20.50
11060A
110601275
ref: 11060A
GASKET,GENERATOR (NAS)
€ 14.50
13183
131831828
ref: 13183
PLATE,CLUTCH COVER (NAS)
€ 12.00
13183A
131831829
ref: 13183A
PLATE
€ 5.00
13183B
131831830
ref: 13183B
PLATE,GENERATER COVER
€ 15.50
13183C
131831831
ref: 13183C
PLATE,CHAIN COVER
€ 20.00
14014
140141079
ref: 14014
PLATE-POSITION
€ 3.00
14026
140261206
ref: 14026
COVER-CHAIN
€ 105.00
14031
140311298
ref: 14031
COVER-GENERATOR
€ 182.00
14032
140321385
ref: 14032
COVER-CLUTCH
€ 258.00
14090
140901450
ref: 14090
COVER,OIL FILTER
€ 54.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92002
920021944
ref: 92002
BOLT,6X8
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92043A
920431264
ref: 92043A
PIN,DOWEL,8.2X10X14
€ 0.50
92043B
920431302
ref: 92043B
PIN,DOWEL,8X10
€ 1.00
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491191
ref: 92049
SEAL-OIL
€ 16.00
92049A
920491271
ref: 92049A
SEAL, OIL
€ 7.00
92055
920551146
ref: 92055
RING-O
€ 5.50
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
€ 6.00
92066
920661156
ref: 92066
PLUG,DRAIN
€ 9.50
92066A
920661397
ref: 92066A
PLUG
€ 10.00
92160
921601013
ref: 92160
DAMPER
€ 5.50
92160A
921601354
ref: 92160A
DAMPER,CLUTCH COVER
€ 27.50
92160B
921601355
ref: 92160B
DAMPER,GENERATOR COVE
€ 28.00
92160C
921601356
ref: 92160C
DAMPER,CHAIN COVER
€ 44.00
