CARBURETOR
BJ250C3 ESTRELLA 1997 AUSTRIA

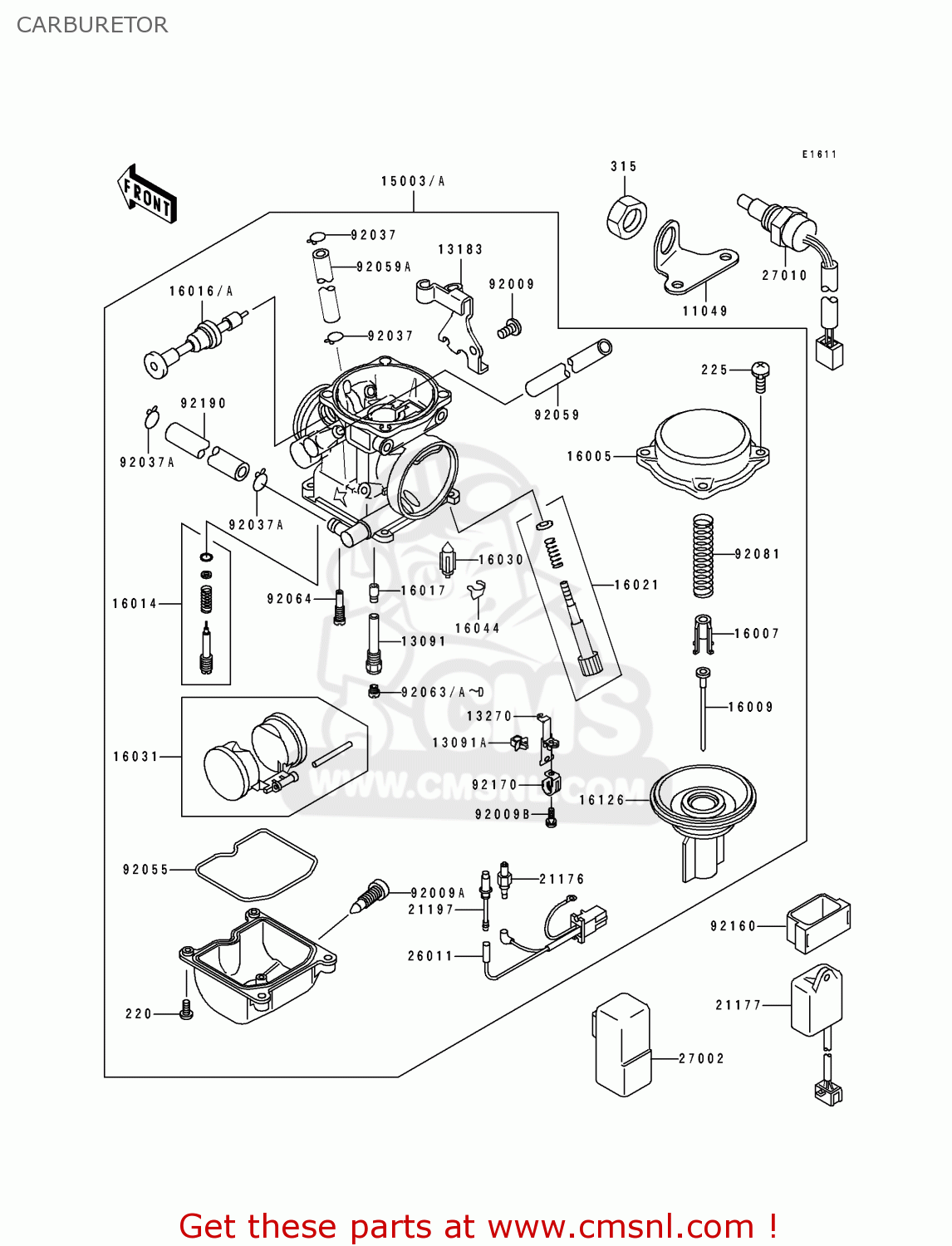

Carburetor diagram BJ250C3 ESTRELLA 1997 AUSTRIA
CARBURETOR BJ250C3 ESTRELLA 1997 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
11049
110491099
ref: 11049
BRACKET
€ 8.50
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
13091A
130911866
ref: 13091A
HOLDER,HEATER
€ 6.50
13183
131831970
ref: 13183
PLATE,THROTTLE CABLE
€ 48.00
13270
132701145
ref: 13270
PLATE,HEATER STAY
€ 8.50
15003A
150031284
ref: 15003A
CARBURETOR-ASSY
€ 375.00
16005
160051059
ref: 16005
TOP-CHAMBER,MIXING,50
€ 55.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091821
ref: 16009
NEEDLE-JET,N96U
€ 20.00
16014
160141080
ref: 16014
SCREW-PILOT AIR
€ 15.00
16016A
160161102
ref: 16016A
PLUNGER,STARTER
€ 34.50
16017
160171362
ref: 16017
JET-NEEDLE
€ 38.50
16021
160211197
ref: 16021
SCREW-THROTTLE STOP
€ 31.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261163
ref: 16126
VALVE,VACUUM
€ 157.50
21176
211761067
ref: 21176
SENSOR,HETER
€ 100.00
21177
211771053
ref: 21177
CONTROLLER
€ 163.50
21197
211971004
ref: 21197
HEATER
€ 119.50
26011
260111618
ref: 26011
WIRE-LEAD
€ 22.50
27002
270021088
ref: 27002
RELAY-ASSY
€ 26.50
27010
270101320
ref: 27010
SWITCH
€ 61.50
92009
920091365
ref: 92009
SCREW
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92009B
920091706
ref: 92009B
SCREW
€ 2.00
92037
920371477
ref: 92037
CLAMP,TUBE
€ 3.00
92037A
920371531
ref: 92037A
CLAMP,TUBE
€ 3.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92059
920591539
ref: 92059
TUBE,6.5X9.5X410
€ 23.00
92059A
920591713
ref: 92059A
TUBE,5X9X120
€ 16.50
92063
920631069
ref: 92063
MAIN JET,2ND #125
€ 9.50
92063A
920631072
ref: 92063A
MAIN JET 2ND #120
€ 9.50
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
315
315C1600
ref: 315
NUT-HEX-FINE
€ 2.50
92063B
920631073
ref: 92063B
MAIN JET,2ND #122
€ 9.50
92063C
920631074
ref: 92063C
MAIN JET,2ND #128
€ 9.50
92063D
920631075
ref: 92063D
MAIN JET,2ND #130
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92081
920811826
ref: 92081
SPRING,VACUUM VALVE
€ 16.50
92160
921601537
ref: 92160
DAMPER
€ 4.50
92170
921701396
ref: 92170
CLAMP,HARNESS
€ 3.50
92190
921901385
ref: 92190
TUBE,6.5X11.5X140
€ 22.00
