REAR MASTER CYLINDER
BJ250A3 ESTRELLA 1995 FG

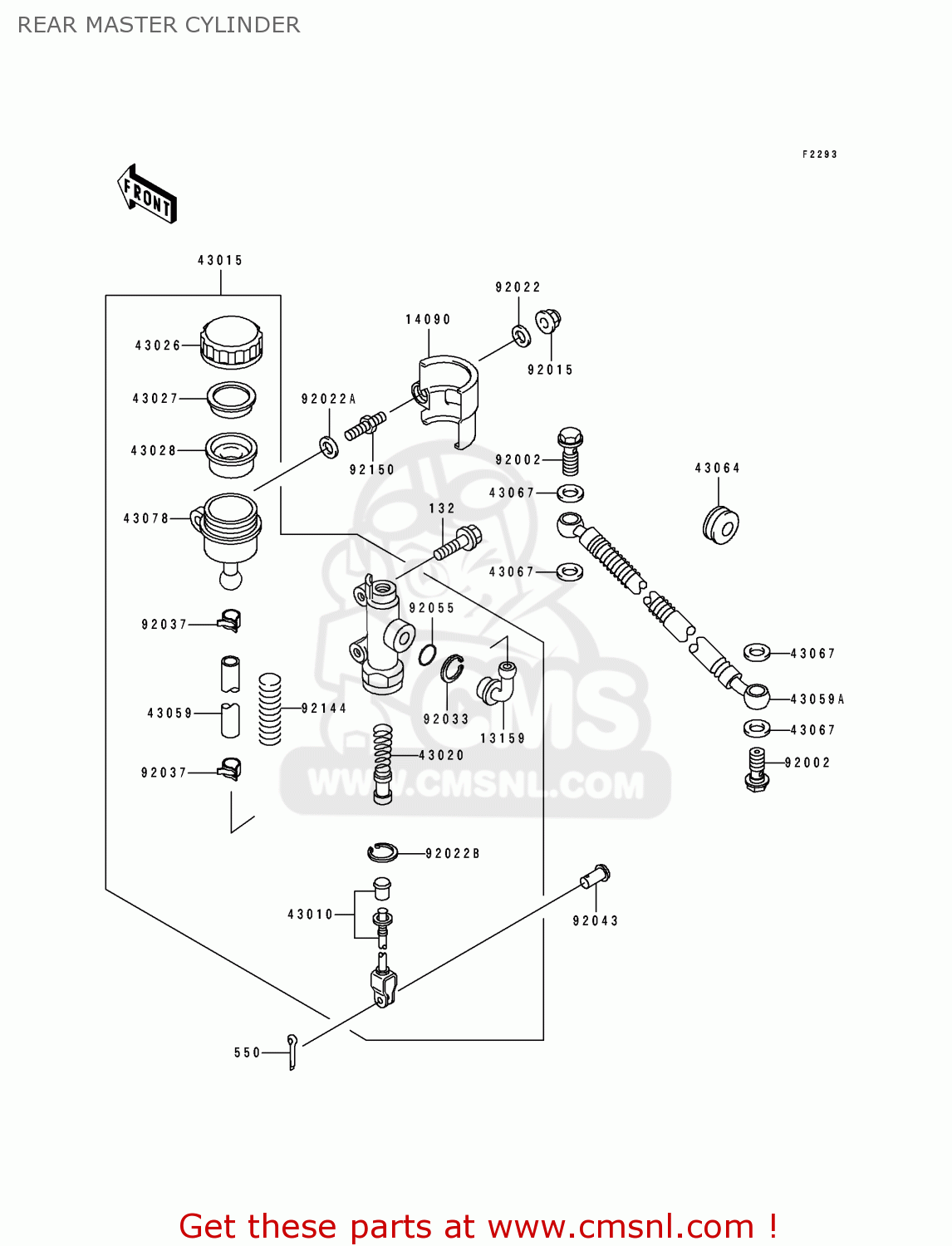

Rear master cylinder diagram BJ250A3 ESTRELLA 1995 FG
REAR MASTER CYLINDER BJ250A3 ESTRELLA 1995 FG
×
prices are in EUR
ref
part #
description
quantity
132
132E0820
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
13159
131591056
ref: 13159
CONNECTOR
€ 9.50
14090
140901222
ref: 14090
COVER,RESERVOIR TANK
€ 7.50
43010
430101070
ref: 43010
ROD-ASSY-BRAKE
€ 40.00
43015
430151522
ref: 43015
CYLINDER-ASSY-MASTER,
€ 259.50
43020
430201094
ref: 43020
PISTON-COMP, BRAKE
€ 47.50
43026
430261077
ref: 43026
CAP-BRAKE
€ 23.00
43027
430271053
ref: 43027
PLATE-DIAPHRAGM
€ 4.00
43028
430281065
ref: 43028
DIAPHRAGM
€ 13.00
43059
430591725
ref: 43059
HOSE-BRAKE,RR MASTER
€ 13.00
43059A
430591871
ref: 43059A
HOSE-BRAKE,RR
€ 78.50
43064
43064007
ref: 43064
43064007
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
43078
430781080
ref: 43078
RESERVOIR
€ 19.00
92002
920021907
ref: 92002
BOLT
€ 3.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92022
920221344
ref: 92022
WASHER,7X16X1.2
€ 2.50
92022A
920221523
ref: 92022A
WASHER,6.5X13X2.0
€ 1.00
92022B
920221601
ref: 92022B
WASHER,CIRCRIP
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
920371710
ref: 92037
CLAMP
€ 6.50
92043
920431303
ref: 92043
PIN,8MM
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
92144
921441434
ref: 92144
SPRING
€ 5.00
92150
921501595
ref: 92150
BOLT
€ 8.50
