OIL PUMP
BJ250A3 ESTRELLA 1995 FG

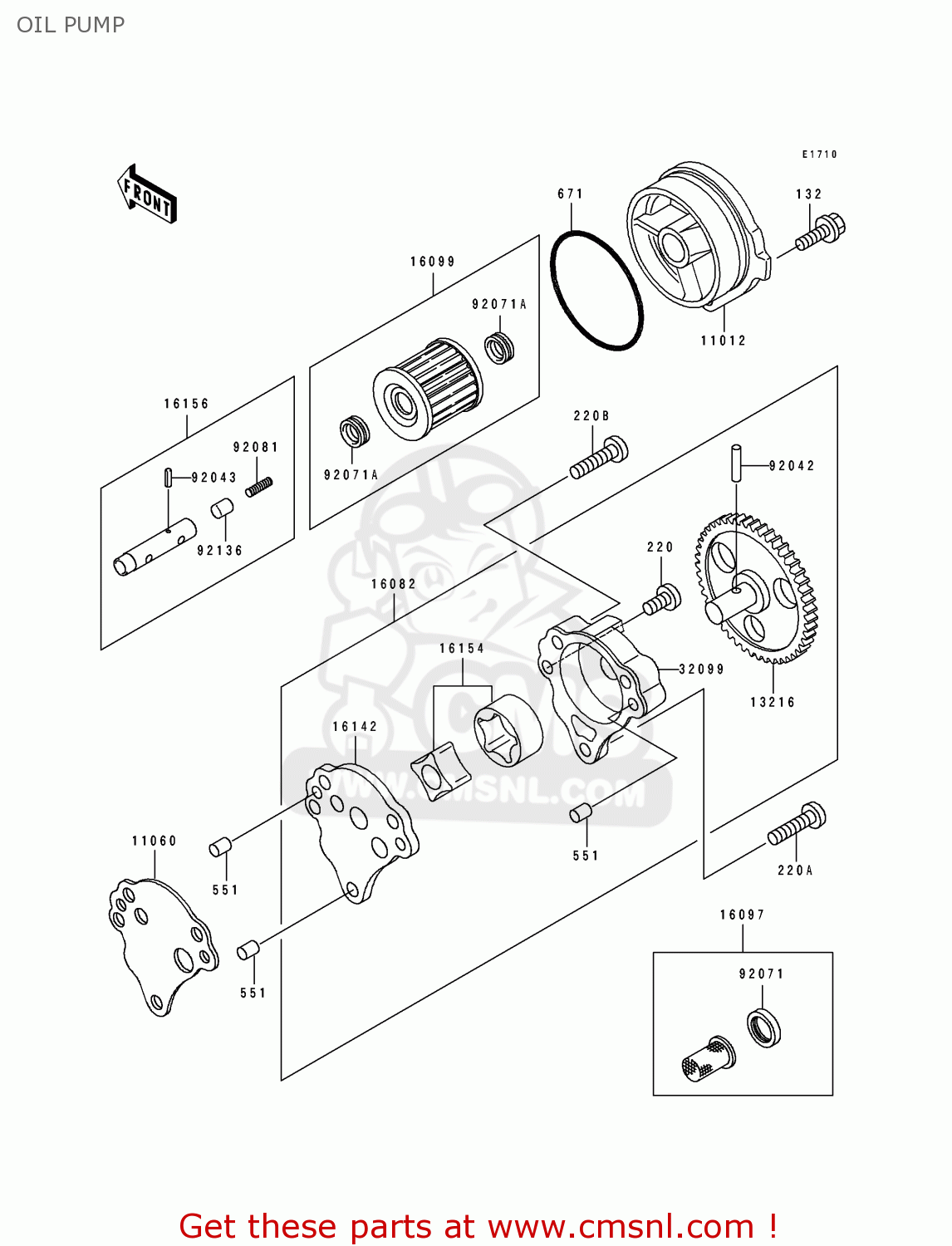

Oil pump diagram BJ250A3 ESTRELLA 1995 FG
OIL PUMP BJ250A3 ESTRELLA 1995 FG
×
prices are in EUR
ref
part #
description
quantity
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
€ 1.50
220B
220B0630
ref: 220B
SCREW-PAN HEAD,6X30
€ 2.50
551
551A0608
ref: 551
PIN,DOWEL,6X8
€ 2.50
671
671B2555
ref: 671
O RING,55MM
€ 4.00
11012
110121812
ref: 11012
CAP,OIL FILTER
€ 44.50
11060
110601276
ref: 11060
GASKET,OIL PUMP (NAS)
€ 4.00
13216
132161136
ref: 13216
GEAR-COMP,OIL PUMP
€ 88.50
16082
160821127
ref: 16082
PUMP-ASSY-OIL
€ 158.00
16097
160971001
ref: 16097
STRAINER ASSY,OIL
€ 5.00
16099
16099004
ref: 16099
FILTER, OIL
€ 5.50
16142
161421120
ref: 16142
COVER-PUMP,OIL
€ 42.50
16154
161541101
ref: 16154
ROTOR-PUMP,OIL
€ 25.00
16156
16156002
ref: 16156
PISTON-ASSY,VALVE,BY-
€ 15.50
32099
320991139
ref: 32099
CASE,OIL PUMP
€ 44.50
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
€ 0.50
92043
92043123
ref: 92043
SPRING PIN
€ 3.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
€ 3.50
92071A
92071101
ref: 92071A
GROMMET, OIL FILTER
€ 3.50
92081
92081043
ref: 92081
SPRING, PISTON
€ 3.50
92136
92136002
ref: 92136
PISTON
€ 3.00
