TURN SIGNAL
AR50C7 1989 EUROPE UK NL GR SA

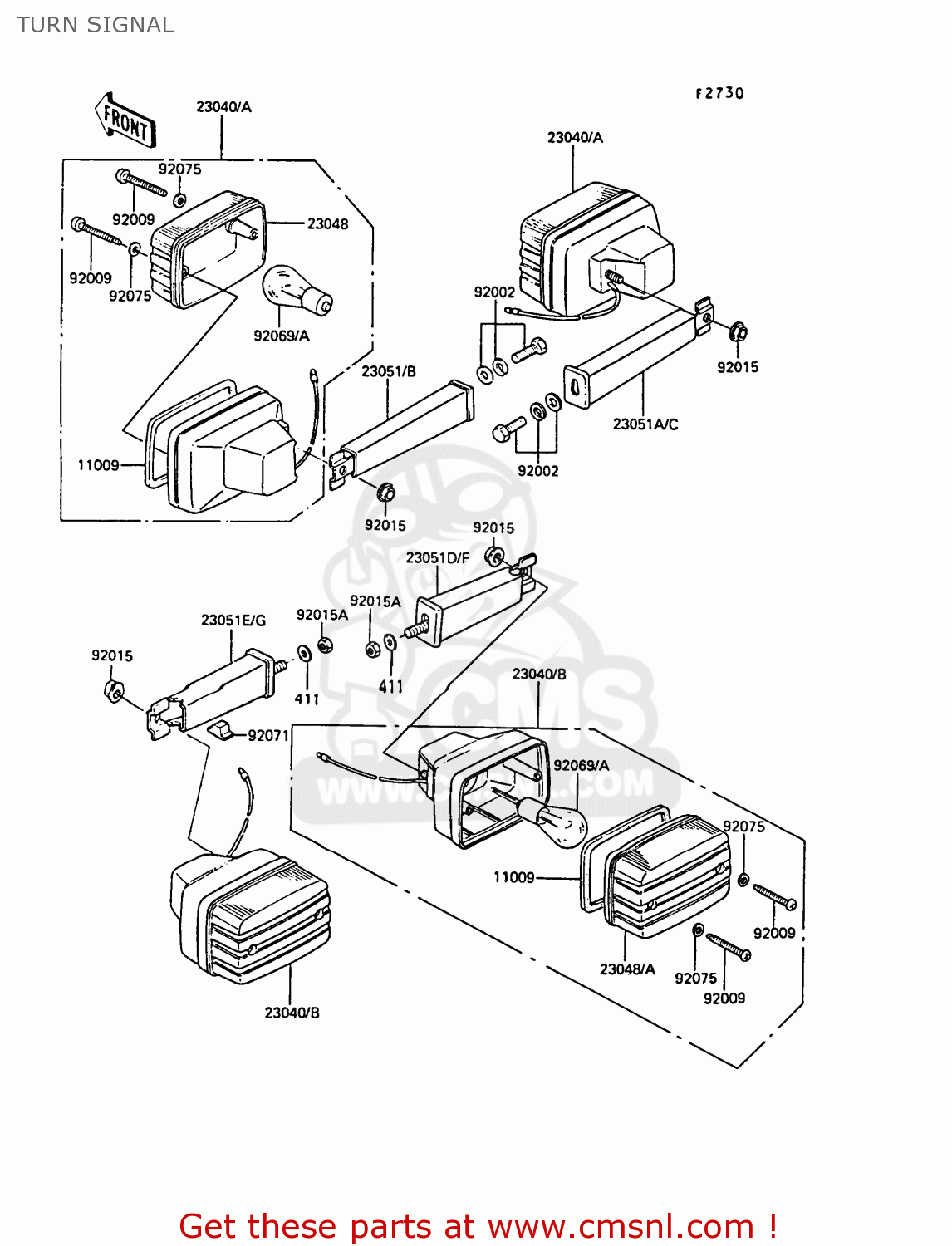

Turn signal diagram AR50C7 1989 EUROPE UK NL GR SA
TURN SIGNAL AR50C7 1989 EUROPE UK NL GR SA
×
prices are in EUR
ref
part #
description
quantity
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
11009
110091216
ref: 11009
EUGRNLUK
GASKET
€ 2.50
23040
230401033
ref: 23040
SA
LAMP-SIGNAL
€ 34.50
23040A
230401132
ref: 23040A
EUGRNLUK
LAMP-SIGNAL,FR
€ 26.50
23040B
230401133
ref: 23040B
EUGRNLUK
LAMP-SIGNAL,RR
€ 26.50
23048
230481069
ref: 23048
EUGRNLUK
LENS-SIGNAL LAMP
€ 10.50
23048
230481069
ref: 23048
SA
LENS-SIGNAL LAMP
€ 10.50
23048A
230481070
ref: 23048A
EUGRNLUK
LENS-SIGNAL LAMP
€ 8.50
23051
230511039
ref: 23051
EUGRNLUK
BRACKET-SIGNAL LAMP,F
€ 17.50
23051A
230511040
ref: 23051A
EUGRNLUK
BRACKET-SIGNAL LAMP,F
€ 17.50
23051B
230511044
ref: 23051B
SA
BRACKET-SIGNAL LAMP
€ 13.50
23051C
230511045
ref: 23051C
SA
BRACKET-SIGNAL LAMP
€ 13.00
23051D
230511047
ref: 23051D
SA
BRACKET-SIGNAL LAMP,R
€ 18.00
23051E
230511048
ref: 23051E
SA
BRACKET-SIGNAL LAMP,R
€ 18.00
23051F
230511063
ref: 23051F
EUGRNLUK
BRACKET-SIGNAL LAMP,R
€ 17.50
23051G
230511064
ref: 23051G
EUGRNLUK
BRACKET-SIGNAL LAMP,R
€ 17.50
92002
920021133
ref: 92002
BOLT,6X14
€ 0.50
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92015A
92017014
ref: 92015A
NUT,LOCK,6MM
€ 4.00
92069
92069042
ref: 92069
SA
BULB,6V 8W
€ 3.00
92069A
ref: 92069A
EUGRNLUK
92071
920711036
ref: 92071
GROMMET,SIGNAL LAMP
€ 2.50
92075
23058002
ref: 92075
EUGRNLUK
WASHER,PLAIN,4MM
€ 2.00
