TAIL LAMP
AR50C7 1989 EUROPE UK NL GR SA

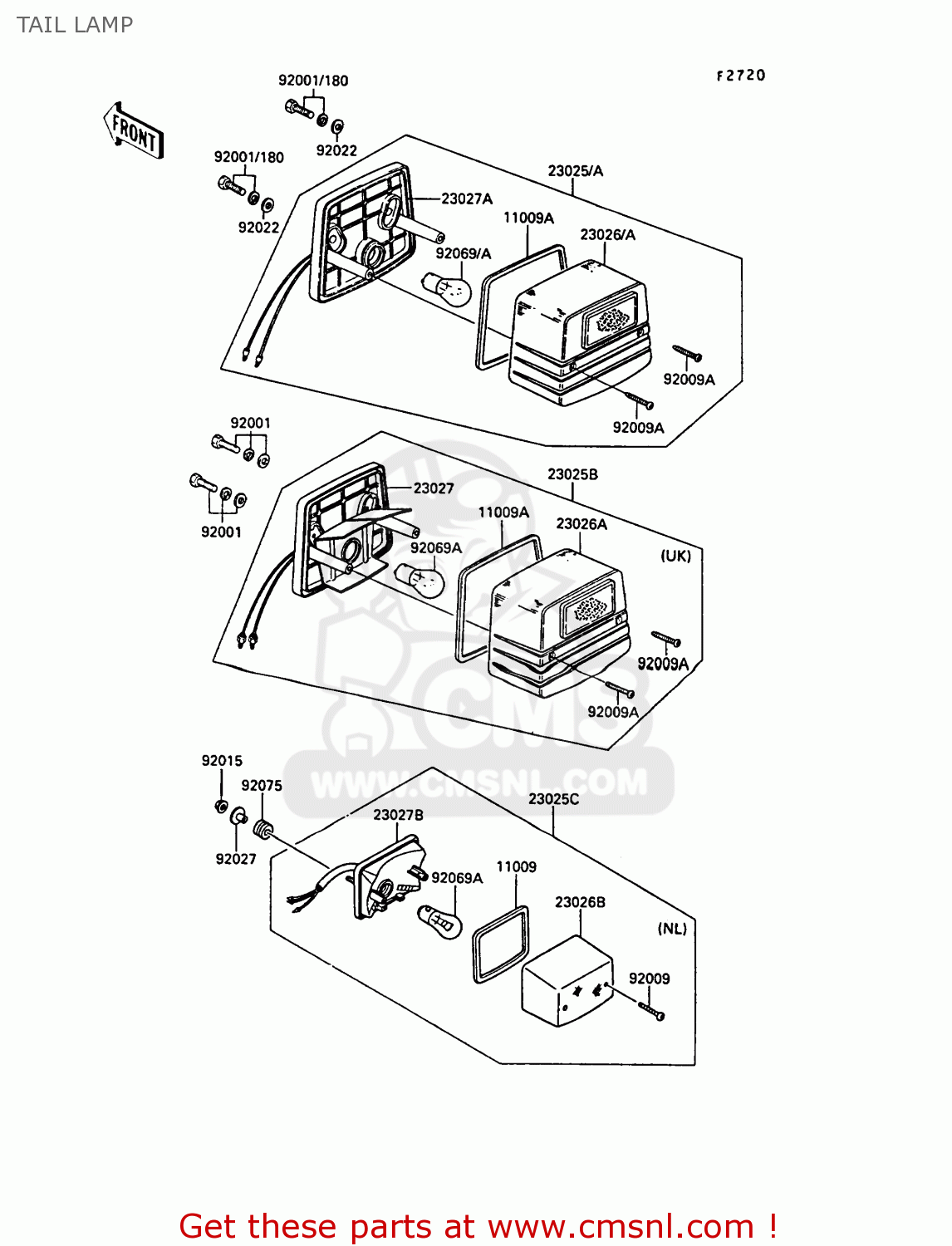

Tail lamp diagram AR50C7 1989 EUROPE UK NL GR SA
TAIL LAMP AR50C7 1989 EUROPE UK NL GR SA
×
prices are in EUR
ref
part #
description
quantity
11009
110091078
ref: 11009
NL
GASKET,TAIL LAMP LENS (NAS)
€ 4.50
11009A
110091215
ref: 11009A
EUGRSAUK
GASKET,TAIL LAMP (NAS)
€ 6.00
23025
230251028
ref: 23025
SA
LAMP-TAIL
€ 68.50
23025A
230251044
ref: 23025A
EUGR
LAMP-TAIL
€ 65.00
23025B
230251136
ref: 23025B
UK
LAMP-TAIL
€ 65.00
23025C
230251195
ref: 23025C
NL
LAMP-TAIL
€ 64.00
23026
230261025
ref: 23026
EUGR
LENS,TAIL LAMP
€ 32.50
23026A
230261077
ref: 23026A
SAUK
LENS,TAIL LAMP
€ 35.00
23026B
230261081
ref: 23026B
NL
LENS,TAIL LAMP
€ 45.00
23027
230271012
ref: 23027
UK
BODY-COMP-TAIL LAMP
€ 32.50
23027A
230271016
ref: 23027A
EUGRSA
BODY-COMP-TAIL LAMP
€ 27.00
23027B
230271073
ref: 23027B
NL
BODY-COMP-TAIL LAMP
€ 48.00
92001
920011863
ref: 92001
SAUK
BOLT,6X16
€ 2.00
92009
920091056
ref: 92009
NL
SCREW,TAPPING
€ 2.50
92009A
920091069
ref: 92009A
EUGRSAUK
SCREW,TAPPING,4X25
€ 2.50
92015
920151193
ref: 92015
NL
NUT,FLANGED,6MM
€ 0.50
92022
92022024
ref: 92022
EUGR
WASHER,7X16X1.2
€ 2.50
92027
92027251
ref: 92027
NL
COLLAR,L=13.1
€ 1.00
92069
92069028
ref: 92069
SA
BULB 6V 17/5.3W
€ 4.50
92069A
92069062
ref: 92069A
EUGRNLUK
BULB,6V 21/5W
€ 12.50
180
180B0616
ref: 180
EUGR
BOLT-UPSET-WS
€ 0.50
92075
920751690
ref: 92075
NL
DAMPER,10X24X12
€ 3.00
