REAR HUB
AR50C4 1986 EUROPE UK GR

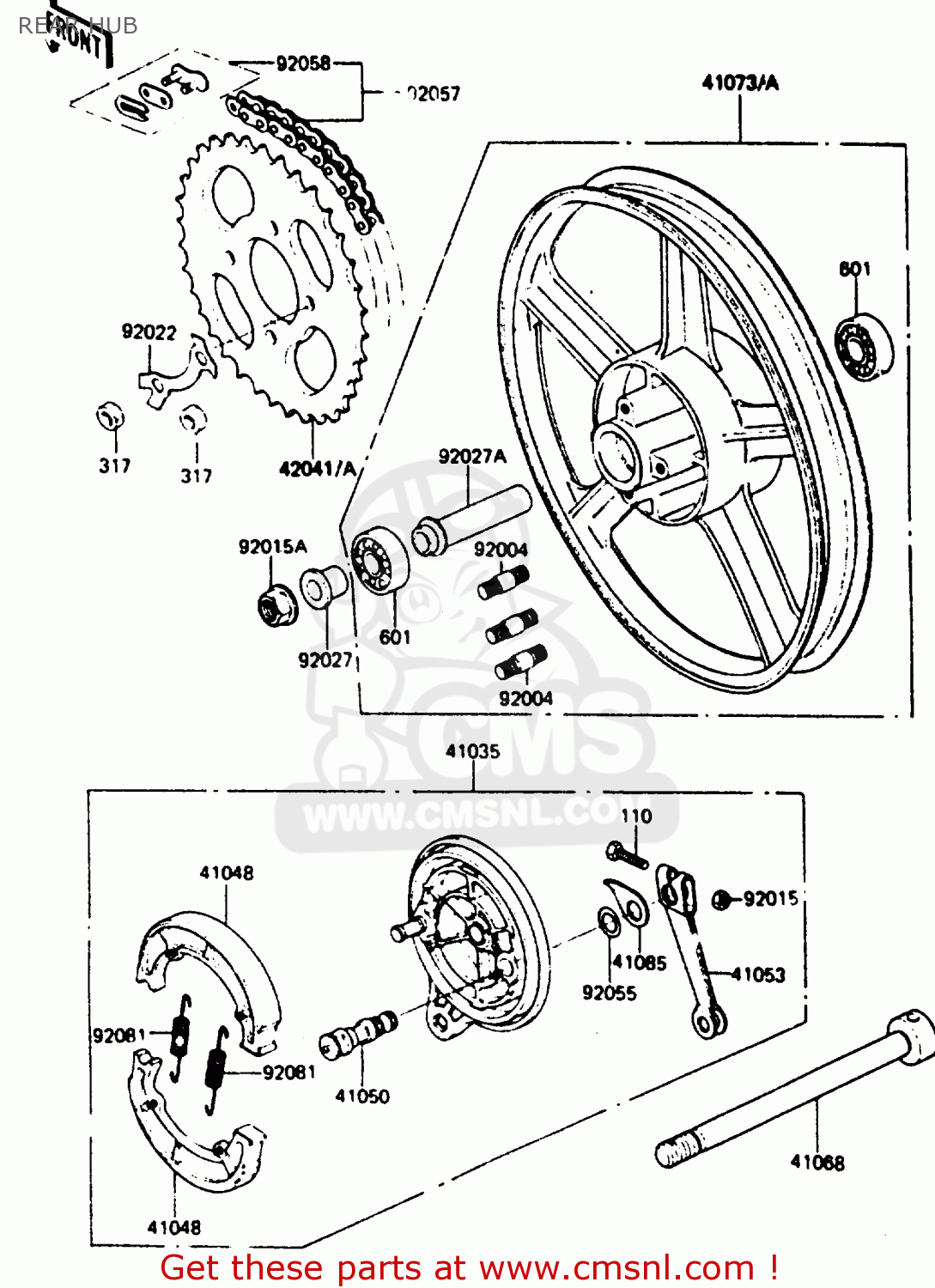

Rear hub diagram AR50C4 1986 EUROPE UK GR
REAR HUB AR50C4 1986 EUROPE UK GR
×
prices are in EUR
ref
part #
description
quantity
41035
410351048
ref: 41035
PANEL-ASSY-BRAKE
€ 146.50
41048
41048017
ref: 41048
SHOE,BRAKE (MCA)
€ 13.00
41050
41050012
ref: 41050
CAM-BRAKE
€ 18.00
41053
410531002
ref: 41053
LEVER-BRAKE CAM
€ 16.00
41068
410681093
ref: 41068
AXLE,RR,L=200
€ 19.50
41073
410731176H9
ref: 41073
EU, GR
WHEEL-ASSY,RR,SOLIDE,
€ 471.50
41073A
410731199H9
ref: 41073A
UK
WHEEL-ASSY,RR,SOLIDE,
€ 380.00
41085
41085003
ref: 41085
INDICATOR,BRAKE SHOE
€ 9.00
42041
420411067
ref: 42041
EU, GR
SPROCKET-HUB,46T
€ 22.50
42041A
420411069
ref: 42041A
UK
SPROCKET-HUB,J.T
€ 24.50
92004
920041014
ref: 92004
STUD,8X15,
€ 2.50
92015
41072007
ref: 92015
NUT,6MM
€ 2.50
92015A
920151156
ref: 92015A
NUT,12MM
€ 4.50
92022
920221291
ref: 92022
WASHER
€ 2.00
92027
920271317
ref: 92027
COLLAR,12.1X22X20
€ 8.50
92027A
920271319
ref: 92027A
COLLAR,L=85
€ 8.50
92055
92055004
ref: 92055
RING-O,BRAKE CAM
€ 3.00
92057
920571106
ref: 92057
CHAIN ASSY,EK420G
€ 15.50
92058
920581019
ref: 92058
JOINT-CHAIN
€ 3.00
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
€ 5.50
110
110G0630
ref: 110
BOLT-HEX HEAD,6X30
€ 1.00
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
601
601B6301Z
ref: 601
BEARING-BALL,#6301ZC3
€ 15.00
