CLUTCH
AR50C4 1986 EUROPE UK GR

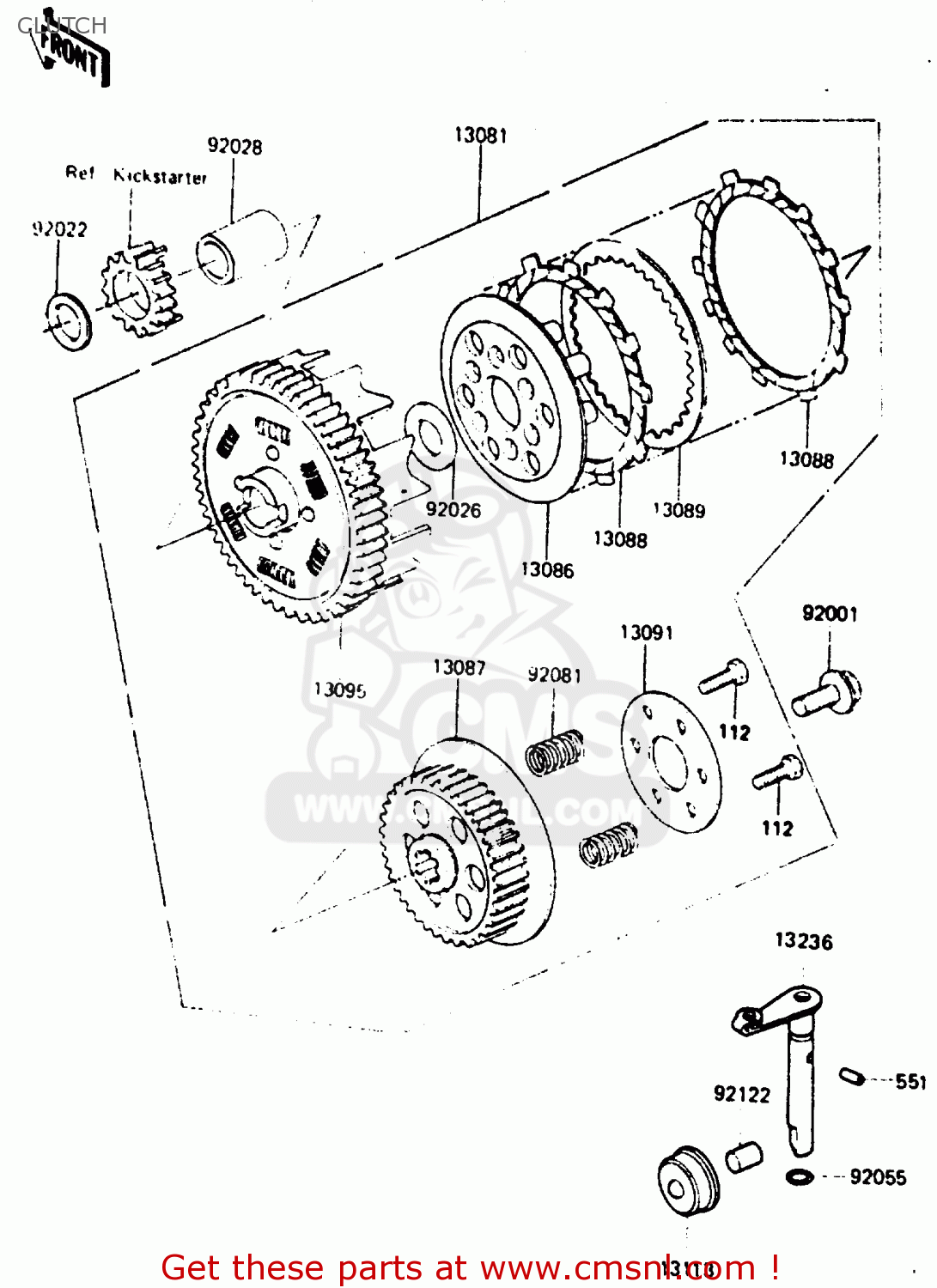

Clutch diagram AR50C4 1986 EUROPE UK GR
CLUTCH AR50C4 1986 EUROPE UK GR
×
prices are in EUR
ref
part #
description
quantity
13081
130811164
ref: 13081
CLUTCH-ASSY
€ 241.50
13086
130861003
ref: 13086
WHEEL-CLUTCH
€ 22.00
13087
130871008
ref: 13087
HUB,CLUTCH
€ 53.50
13088
130881011
ref: 13088
PLATE-FRICTION (MCA)
€ 11.00
13089
130891009
ref: 13089
PLATE-CLUTCH,STEEL (NAS)
€ 8.50
13091
130911113
ref: 13091
HOLDER,BEARING
€ 34.00
13095
130951107
ref: 13095
HOUSING-COMP-CLUTCH
€ 190.00
13113
13113003
ref: 13113
PUSHER-COMP-CLUTCH
€ 6.50
13236
132361114
ref: 13236
LEVER-COMP,CLUTCH REL
€ 25.50
92001
920011359
ref: 92001
BOLT,8X18
€ 3.00
92022
92022255
ref: 92022
WASHER
€ 5.50
92026
920261096
ref: 92026
SPACER,CLUTCH,17X30X2
€ 4.50
92028
920281117
ref: 92028
BUSHING,17X22X34.5
€ 9.00
92055
920551023
ref: 92055
ORING
€ 2.50
92081
920811483
ref: 92081
SPRING,SIDE STAND
€ 10.00
92122
921221019
ref: 92122
ROLLER,10X12
€ 3.50
112
112B0516
ref: 112
BOLT-UPSET
€ 0.50
551
551A0306
ref: 551
PIN,DOWEL,3X6
€ 1.00
