IGNITION SWITCH
AR125B8 1991 UNITED KINGDOM

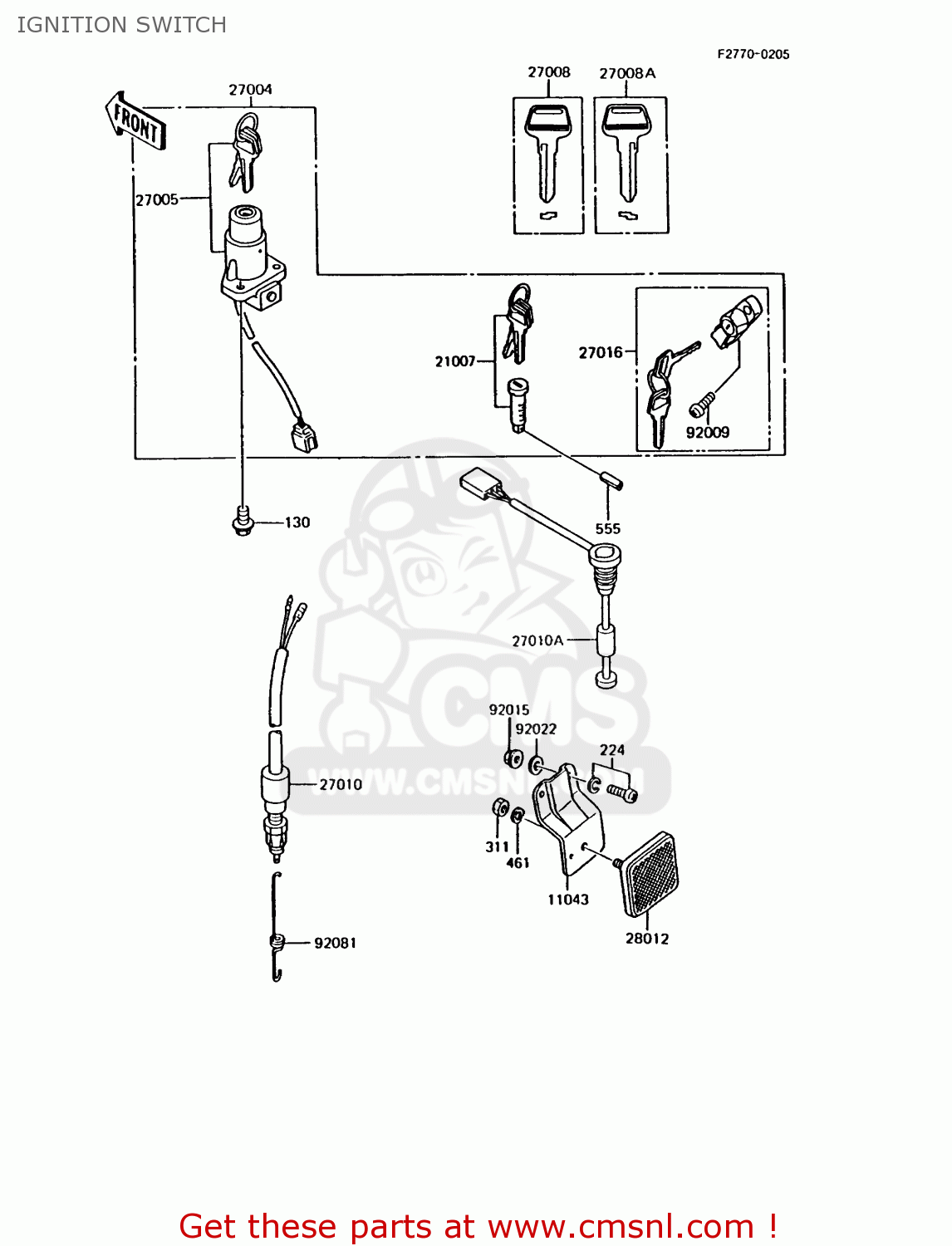

Ignition switch diagram AR125B8 1991 UNITED KINGDOM
IGNITION SWITCH AR125B8 1991 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
130
130D0614
ref: 130
BOLT-FLANGED,6X14
€ 0.50
224
224C0614
ref: 224
SCREW-PAN-WP-CROS
€ 2.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
555
555B0325
ref: 555
PIN-SPRING,3X25
€ 2.50
11043
110431078
ref: 11043
BRACKET-B,REFLECTOR
€ 13.50
21007
210075001
ref: 21007
ROTOR,LOCK,TANK CAP &
€ 21.50
27004
270045173
ref: 27004
SWITCH-ASSY
€ 152.50
27005
270051055
ref: 27005
SWITCH-ASSY-IGNITION
€ 117.50
27008
270081034
ref: 27008
KEY,BLANK
€ 13.00
27008A
270081035
ref: 27008A
KEY,BLANK
€ 12.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27010A
270101049
ref: 27010A
SWITCH,OIL LEVEL
€ 47.50
27016
270165029
ref: 27016
LOCK ASSY,HELMET
€ 73.50
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
92009
920091547
ref: 92009
SCREW,5X18
€ 3.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92081
27011017
ref: 92081
SPRING,BRK LIGHT SW
€ 6.50
