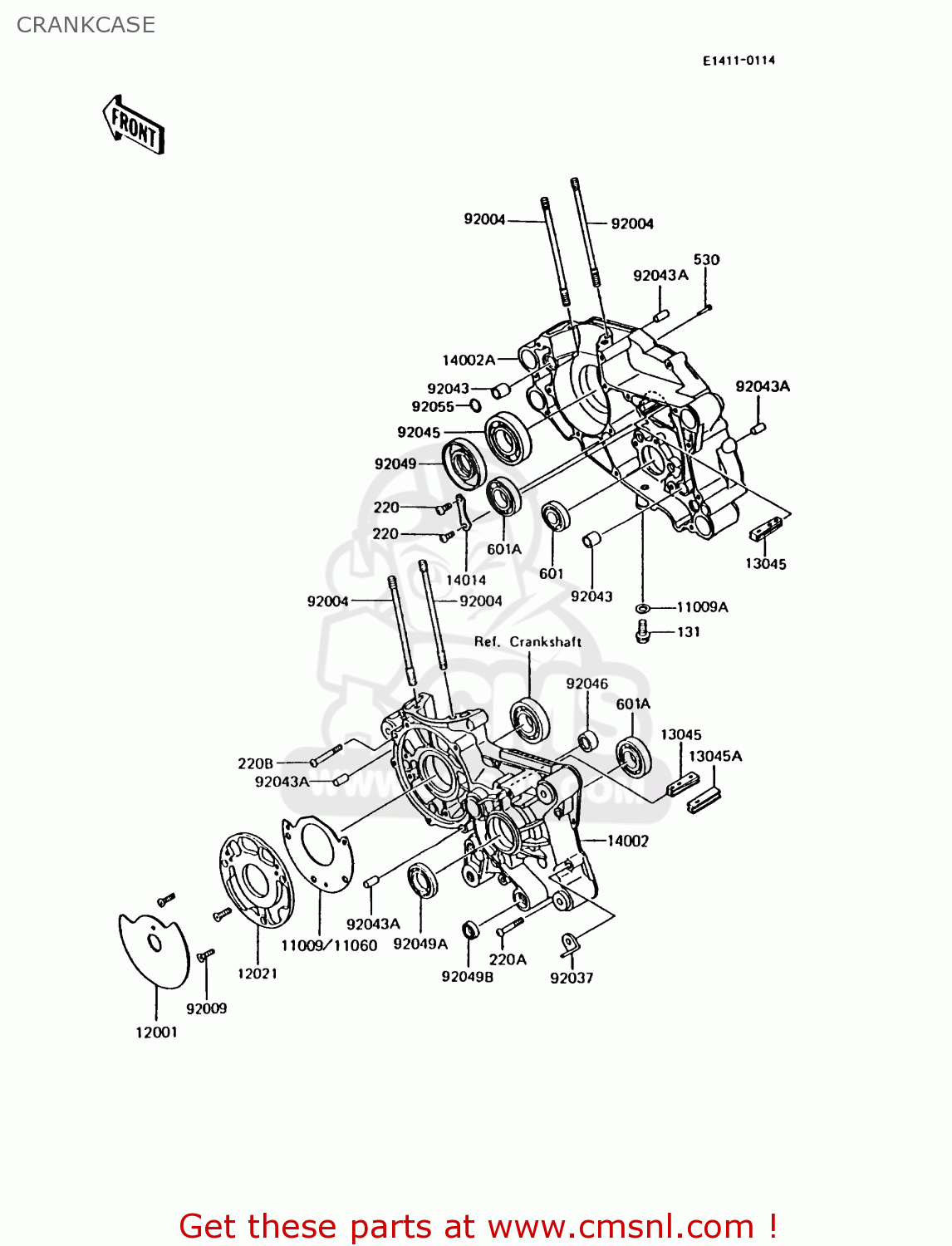

CRANKCASE

ref

part #

description

quantity

131

131D1020
ref: 131

BOLT-FLANGED

€ 2.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

220A

220X0635
ref: 220A

SCREW-PAN-CROS

€ 2.50

220B

220X0645
ref: 220B

SCREW-PAN-CROS

€ 2.50

530

530C0316
ref: 530

RIVET-ROUND,3X16

€ 1.50

601

601B6202
ref: 601

BEARING-BALL,#6202C3

€ 14.50

601A

601B6204
ref: 601A

BEARING-BALL,#6204C3

€ 8.00

11009A

92065058
ref: 11009A

GASKET, 10,5X16X1 (NAS)

€ 2.50

11060

110601167
ref: 11060

GASKET,ROTARY VALVE (NAS)

€ 4.50

12001

120011064
ref: 12001

VALVE-ROTARY

€ 19.00

12021

120211017
ref: 12021

VALVE-ASSY-REED

€ 270.00

13045

130451004
ref: 13045

RECEIVER-OIL

€ 2.50

13045A

130451051
ref: 13045A

RECEIVER-OIL

€ 4.00

14002

140021358
ref: 14002

CRANKCASE,LH

€ 344.00

14002A

140021362
ref: 14002A

CRANKCASE,RH

€ 344.00

14014

140141028
ref: 14014

PLATE-POSITION

€ 2.00

92004

920041157
ref: 92004

STUD

€ 5.50

92009

920091180
ref: 92009

SCREW,6X14

€ 2.00

92037

920371642
ref: 92037

CLAMP

€ 3.00

92043

920431279
ref: 92043

PIN,11.5X14X14

€ 3.00

92043A

920431322
ref: 92043A

PIN,8X16

€ 2.50

92045

920451143
ref: 92045

BEARING-BALL,6305YR4-

€ 21.00

92046

920461051
ref: 92046

BEARING-NEEDLE

€ 13.50

92049

920491097
ref: 92049

SEAL-OIL,SD29659GS

€ 10.50

92049A

920491240
ref: 92049A

SEAL-OIL

€ 10.50

92049B

92051005A
ref: 92049B

OIL SEAL,TB13225.5

€ 5.50

92055

920551141
ref: 92055

RING-O,ID=13.8

€ 2.50
