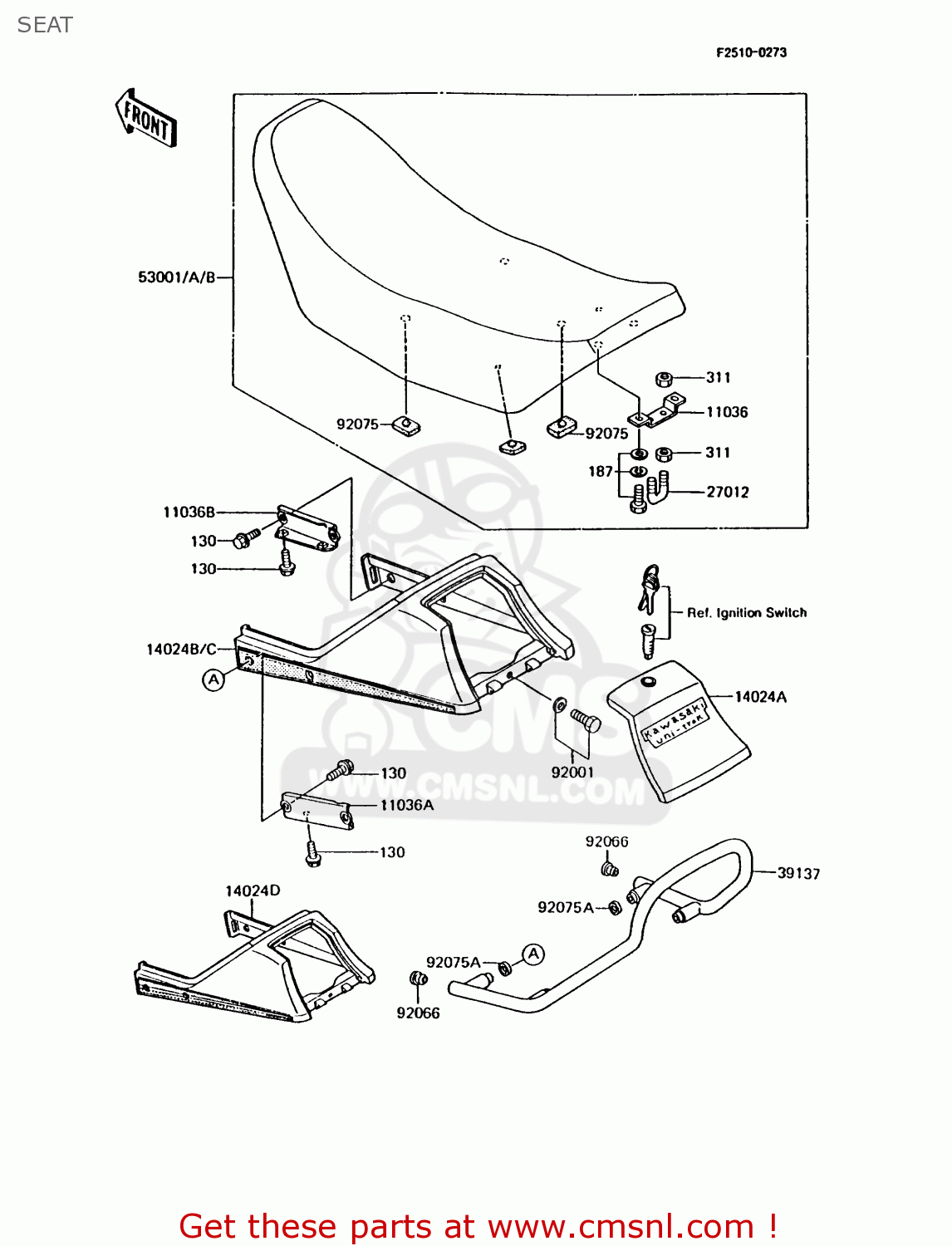

SEAT

ref

part #

description

quantity

130

130C0814
ref: 130

BOLT-FLANGED

€ 2.50

187

187B0614
ref: 187

BOLT-UPSET-WSP

€ 0.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

11036

110361597
ref: 11036

BRACKET-A,SEAT HOOK

€ 6.00

11036A

110361824
ref: 11036A

BRACKET-A,STAY,LH

€ 8.50

11036B

110361825
ref: 11036B

BRACKET-A,STAY,RH

€ 9.00

14024A

14025519421
ref: 14024A

COVER,SEAT COVER,F.BL

€ 65.00

14024B

140255280H8
ref: 14024B

COVER,SEAT,EBONY

€ 71.00

14024C

140255282F1
ref: 14024C

COVER,SEAT,P.WHITE

€ 188.00

27012

270121019
ref: 27012

HOOK,SEAT

€ 5.50

39137

391371014
ref: 39137

STAY-COMP,RR

€ 94.00

53001

530011550MA
ref: 53001

SEAT-ASSY,DUAL,BLACK

€ 292.50

53001B

530011550NV
ref: 53001B

SEAT-ASSY,DUAL,RED

€ 292.50

92001

920011772
ref: 92001

BOLT,6X16

€ 3.00

92066

920661034
ref: 92066

PLUG,FRAME END

€ 3.00

92075

920751153
ref: 92075

DAMPER,SEAT

€ 3.00

92075A

920754010
ref: 92075A

DAMPER,HEAD LAMP

€ 2.50
