ELECTRICAL EQUIPMENT
AR125B5 1988 UNITED KINGDOM

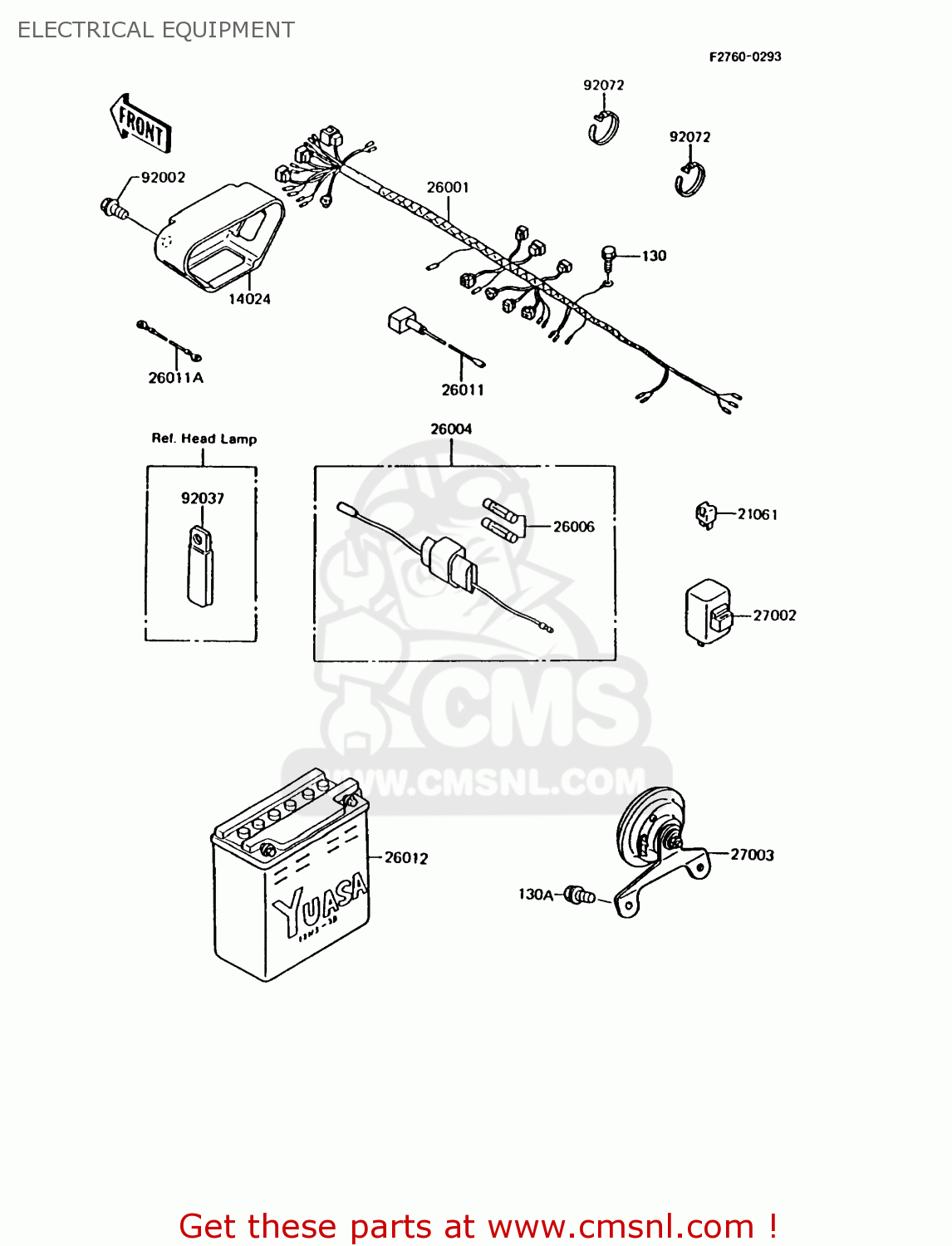

Electrical equipment diagram AR125B5 1988 UNITED KINGDOM
ELECTRICAL EQUIPMENT AR125B5 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130B0614
ref: 130A
BOLT-FLANGED
€ 0.50
14024
140241329
ref: 14024
COVER,HARNESS
€ 8.00
21061
210611003
ref: 21061
RECTIFIER
€ 25.00
26001
260011795
ref: 26001
HARNESS,MAIN
€ 145.50
26004
260041013
ref: 26004
FUSE-ASSY
€ 20.00
26006
260061003
ref: 26006
FUSE,15A,L=30M/M
€ 3.00
26011
260111193
ref: 26011
WIRE-LEAD,BATTERY,(+)
€ 7.50
26011A
260111194
ref: 26011A
WIRE-LEAD,BATTERY,(-)
€ 7.00
26012
260121157
ref: 26012
BATTERY,12V 5AH,12N5
€ 63.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 33.50
27003
270031249
ref: 27003
HORN
€ 37.50
92002
920021721
ref: 92002
BOLT,6X12
€ 2.00
92037
92037113
ref: 92037
CLAMP
€ 4.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
