ENGINE COVER(S)
AR125A7 1989 UNITED KINGDOM GR NR

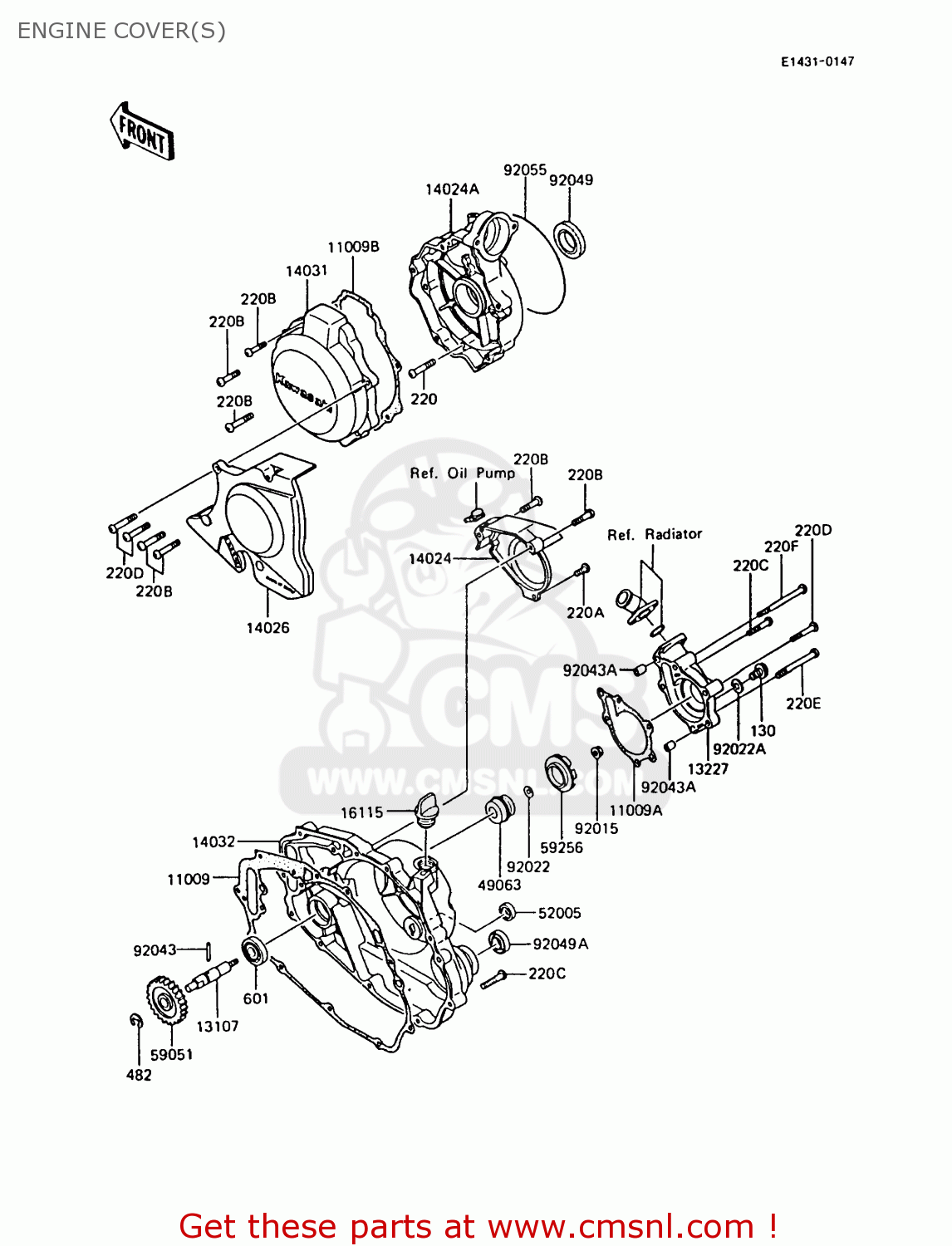

Engine cover(s) diagram AR125A7 1989 UNITED KINGDOM GR NR
ENGINE COVER(S) AR125A7 1989 UNITED KINGDOM GR NR
×
prices are in EUR
ref
part #
description
quantity
130
130X0812
ref: 130
BOLT-FLANGED
€ 2.50
220
220B0635
ref: 220
SCREW-PAN HEAD,6X35
€ 1.00
220A
220C0612
ref: 220A
SCREW-PAN-CROS,6X12
€ 2.50
220B
220C0625
ref: 220B
SCREW-PAN-CROS,6X25,B
€ 2.50
220C
220C0630
ref: 220C
SCREW-PAN-CROS,6X30,B
€ 1.50
220D
220C0635
ref: 220D
SCREW-PAN-CROS,6X35,B
€ 3.50
220E
220C0660
ref: 220E
SCREW-PAN-CROS,6X60
€ 3.00
220F
220C0670
ref: 220F
SCREW-PAN-CROS,6X70
€ 2.00
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
601
601B6201
ref: 601
BEARING-BALL,#6201C3
€ 7.00
11009
110091301
ref: 11009
GASKET,CLUTCH COVER (MCA)
€ 12.50
11009A
110091302
ref: 11009A
GASKET,WATER HOUSING (MCA)
€ 3.50
11009B
110091401
ref: 11009B
GASKET,GENERATOR COVE (MCA)
€ 8.00
13107
131071154
ref: 13107
SHAFT,WATER PUMP
€ 15.50
13227
132271007
ref: 13227
HOUSING,WATER PUMP
€ 44.00
14024
140251537
ref: 14024
COVER,OIL PUMP
€ 19.00
14024A
140251831
ref: 14024A
COVER,VALVE
€ 94.00
14026
140261072
ref: 14026
COVER-CHAIN
€ 30.00
14031
140311164
ref: 14031
COVER-GENERATOR
€ 35.00
14032
140321204
ref: 14032
COVER-CLUTCH
€ 112.00
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
€ 17.00
52005
520051005
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
59051
590511048
ref: 59051
GEAR-SPUR,WATER PUMP,
€ 17.50
59256
592561061
ref: 59256
IMPELLER,WATER PUMP
€ 21.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
920221086
ref: 92022A
WASHER,8.2X16X1
€ 2.50
92043
920431129
ref: 92043
PIN,3.5X23.8
€ 3.00
92043A
920431302
ref: 92043A
PIN,DOWEL,8X10
€ 1.00
92049
920491188
ref: 92049
SEAL-OIL,SD20407GS
€ 12.00
92049A
92051003
ref: 92049A
OIL SEAL TB16267
€ 6.00
92055
920551169
ref: 92055
RING-O,121.5MM
€ 6.00
