IGNITION SWITCH/LOCK

AR125A5 1987 UNITED KINGDOM GR NR ST

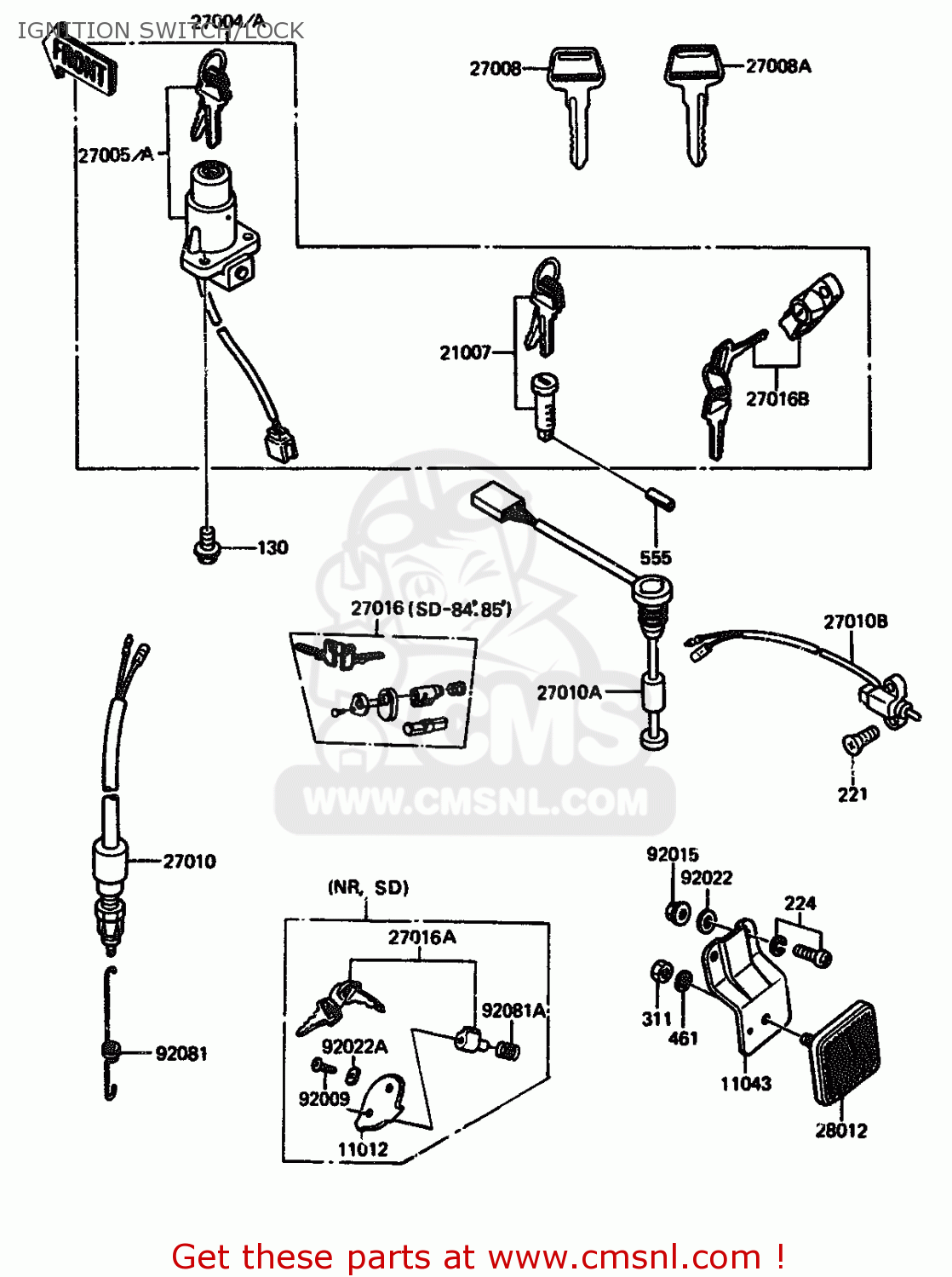

Ignition switch/lock diagram AR125A5 1987 UNITED KINGDOM GR NR ST

IGNITION SWITCH/LOCK AR125A5 1987 UNITED KINGDOM GR NR ST
IGNITION SWITCH/LOCK AR125A5 1987 UNITED KINGDOM GR NR ST
IGNITION SWITCH/LOCK AR125A5 1987 UNITED KINGDOM GR NR ST
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
NR
CAP,STEERING LOCK
110121134
€ 4.50
11043
110431078
ref: 11043
BRACKET-B,REFLECTOR
110431078
€ 13.50
21007
210075001
ref: 21007
ROTOR,LOCK,TANK CAP &
210075001
€ 21.50
27004
270045173
ref: 27004
GR, ST, UK
SWITCH-ASSY
270045173
€ 152.50
27004A
270045199
ref: 27004A
NR
SWITCH-ASSY
€ 152.50
27005
270051055
ref: 27005
GR, ST, UK
SWITCH-ASSY-IGNITION
270051055
€ 117.50
27005A
270051068
ref: 27005A
NR
SWITCH-ASSY-IGNITION
270051068
€ 98.50
27008
270081034
ref: 27008
(OPTION)
KEY,BLANK
270081034
€ 13.00
27008A
270081035
ref: 27008A
(OPTION)
KEY,BLANK
270081035
€ 12.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
270101019
€ 23.00
27010A
270101049
ref: 27010A
SWITCH,OIL LEVEL
270101049
€ 47.50
27016A

ref: 27016A
NR, (LOCAL PROCUREME
27016B
270165029
ref: 27016B
LOCK ASSY,HELMET
270165029
€ 73.50
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
280121054
€ 15.00
92009
92008007
ref: 92009
NR
SCREW-TAPPING
92008007
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92022A
92097003
ref: 92022A
NR
WASHER
92097003
€ 2.50
92081
27011017
ref: 92081
SPRING,BRK LIGHT SW
27011017
€ 6.50
92081A
27032001
ref: 92081A
NR
SPRING-STEERING LOCK
27032001
€ 3.50
130
130D0614
ref: 130
BOLT-FLANGED,6X14
130D0614
€ 0.50
224
224C0614
ref: 224
SCREW-PAN-WP-CROS
224C0614
€ 2.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
555
555B0325
ref: 555
PIN-SPRING,3X25
555B0325
€ 2.50
