FRAME FITTING
AR125A5 1987 UNITED KINGDOM GR NR ST

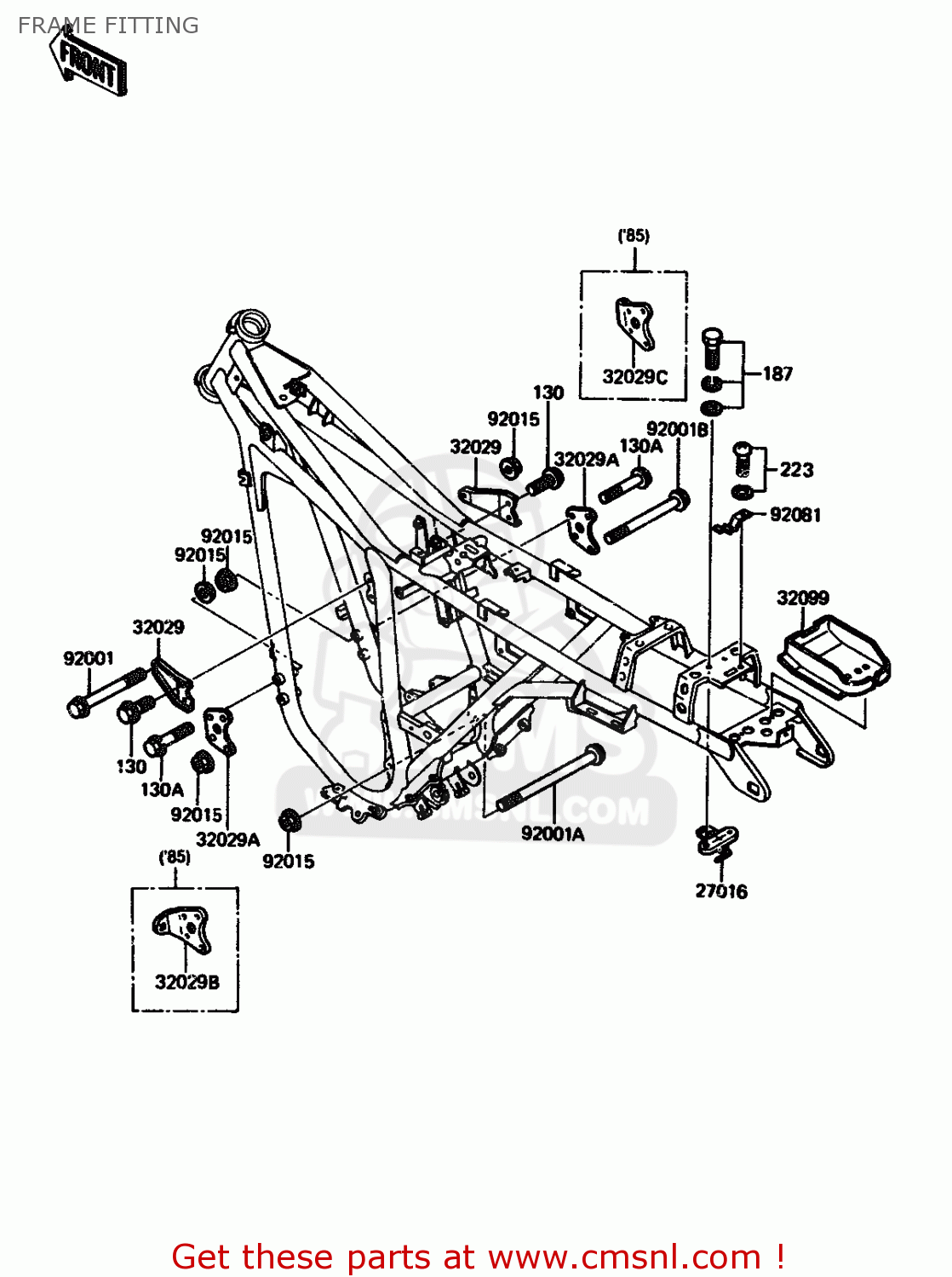

Frame fitting diagram AR125A5 1987 UNITED KINGDOM GR NR ST
FRAME FITTING AR125A5 1987 UNITED KINGDOM GR NR ST
×
prices are in EUR
ref
part #
description
quantity
27016
270161008
ref: 27016
LOCK-ASSY,SEAT
€ 14.00
32029
320291239
ref: 32029
BRACKET-ENGINE,HEAD
€ 6.00
32029A
320291240
ref: 32029A
BRACKET-ENGINE,FR
€ 5.50
32099
320991031
ref: 32099
CASE,SEAT COVER
€ 13.00
92001
920011640
ref: 92001
BOLT,FLANGED,8X80,BLA
€ 3.00
92001A
920011784
ref: 92001A
BOLT,FLANGED,8X110
€ 3.50
92001B
920011785
ref: 92001B
BOLT,FLANGED,8X98
€ 6.00
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92081
920811489
ref: 92081
SPRING,SEAT LOCK
€ 2.00
130
130J0814
ref: 130
BOLT-FLANGED,8X14
€ 2.50
130A
130J0850
ref: 130A
BOLT-FLANGED,8X50
€ 2.50
187
187B0614
ref: 187
BOLT-UPSET-WSP
€ 0.50
223
223B0512
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
