Genuine AN Kawasaki Parts delivered quickly!


STARTER MOTOR

AN112D3 KAZER 2004 CANADA

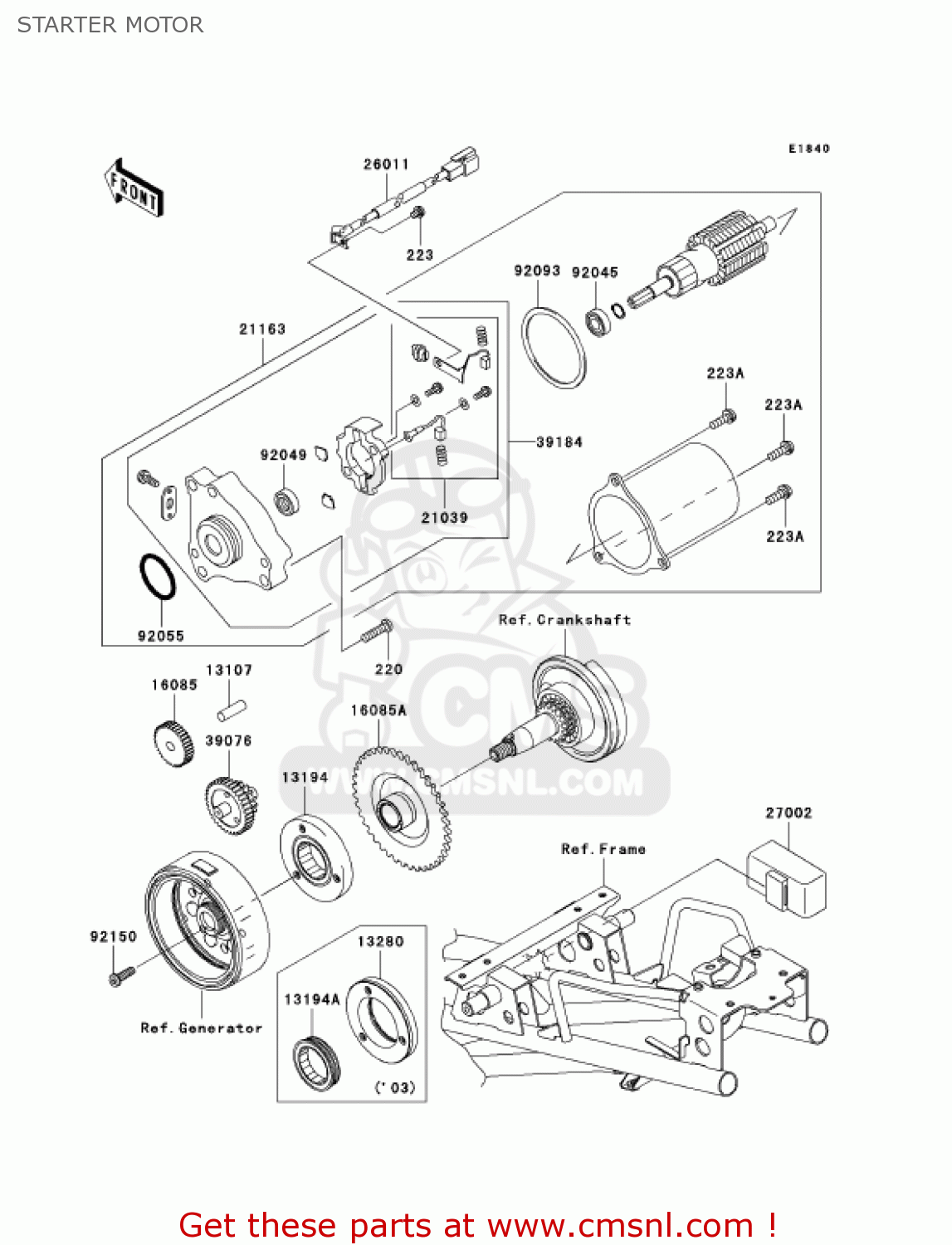

Starter motor diagram AN112D3 KAZER 2004 CANADA

STARTER MOTOR AN112D3 KAZER 2004 CANADA
STARTER MOTOR AN112D3 KAZER 2004 CANADA
STARTER MOTOR AN112D3 KAZER 2004 CANADA
prices are in EUR
ref
part #
description
quantity
220
220X0625
ref: 220
SCREW-PAN-CROS
220X0625
€ 2.50
223
223D0406
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
223A
223D0516
ref: 223A
SCREW-PAN-WS-CROS
€ 0.50
13107
131071142
ref: 13107
SHAFT,L=24.5
131071142
€ 5.50
13194
131940003
ref: 13194
CLUTCH-ONEWAY
€ 103.50
16085
160851350
ref: 16085
GEAR
€ 42.50
16085A
160851353
ref: 16085A
GEAR,62T
€ 112.50
21039
210391067
ref: 21039
BRUSH,STARTER MOTOR(S
210391067
€ 17.00
21163
211631325
ref: 21163
STARTER-ELECTRIC
€ 346.50
26011
260111819
ref: 26011
WIRE-LEAD
€ 7.00
27002
270021118
ref: 27002
RELAY-ASSY
€ 90.00
39076
390761078
ref: 39076
LIMITER
€ 77.00
39184
391841011
ref: 39184
BRACKET-ASSY,STARTER
€ 61.00
92045
920451349
ref: 92045
BEARING-BALL,STARTER
€ 12.50
92049
920491465
ref: 92049
SEAL-OIL,STARTER MOTO
€ 3.50
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92093
920931079
ref: 92093
GASKET,STARTER MOTOR (NAS)
€ 3.00
92150
921501907
ref: 92150
BOLT,6X20
921501907
€ 1.50
