SEAT
AN112D3 KAZER 2004 CANADA

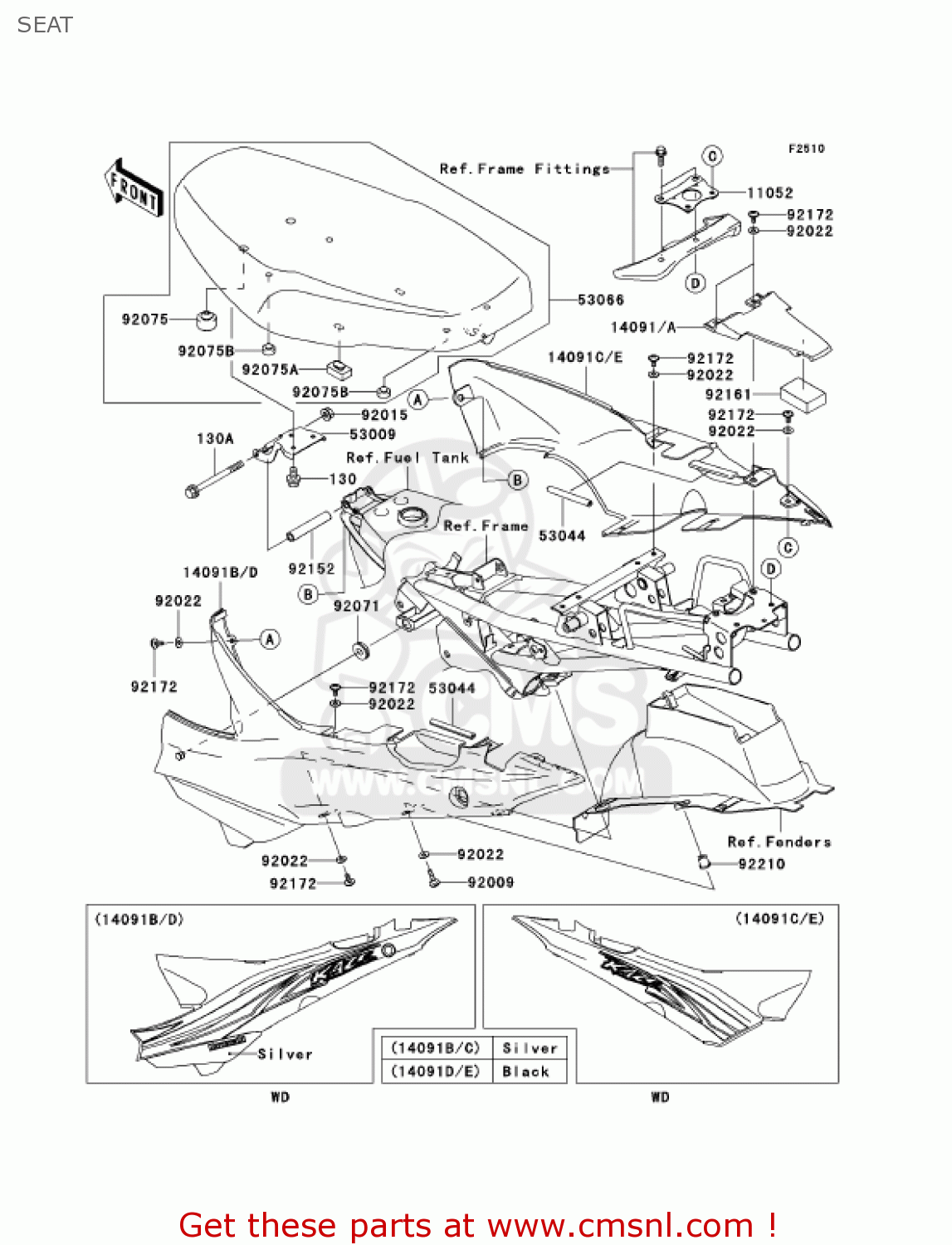

Seat diagram AN112D3 KAZER 2004 CANADA
SEAT AN112D3 KAZER 2004 CANADA
×
prices are in EUR
ref
part #
description
quantity
11052
110521854
ref: 11052
BRACKET,SEAT COVER,RR
€ 2.00
14091
140911413167
ref: 14091
COVER,SEAT,CNT,M.C.BL
€ 3.50
14091A
140911413170
ref: 14091A
COVER,SEAT,CNT,M.P.SI
€ 3.50
14091B
140915088190
ref: 14091B
COVER,SEAT,LH,SILVER/
€ 28.50
14091C
140915089170
ref: 14091C
COVER,SEAT,RH,M.P.SIL
€ 22.50
14091D
140915094193
ref: 14091D
COVER,SEAT,LH,BLACK/S
€ 28.50
14091E
140915095167
ref: 14091E
COVER,SEAT,RH,M.C.BLA
€ 22.50
53009
530091113
ref: 53009
HINGE,SEAT
€ 3.00
53044
530441330
ref: 53044
TRIM,L=85
€ 0.50
53066
530661051313
ref: 53066
SEAT-ASSY,DUAL,GRAY
€ 95.50
92009
920091465
ref: 92009
SCREW
€ 2.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
€ 2.50
92071
920711043
ref: 92071
GROMMET,SIDE COVER
€ 3.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
92075099
ref: 92075A
DAMPER RUBBER
€ 3.50
92075B
920751927
ref: 92075B
DAMPER,10X20X8
€ 3.00
130
130H0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
130A
130J0670
ref: 130A
BOLT-FLANGED,6X70,BLA
€ 1.50
92152
921521374
ref: 92152
COLLAR,6.8X10X55.8
€ 1.00
92161
921611288
ref: 92161
DAMPER
€ 1.00
92172
921720004
ref: 92172
SCREW,6X14
€ 2.00
92210
922101345
ref: 92210
NUT,WELL,6MM
€ 3.50
