REAR HUB
AN112D2 KAZER 2003 CANADA

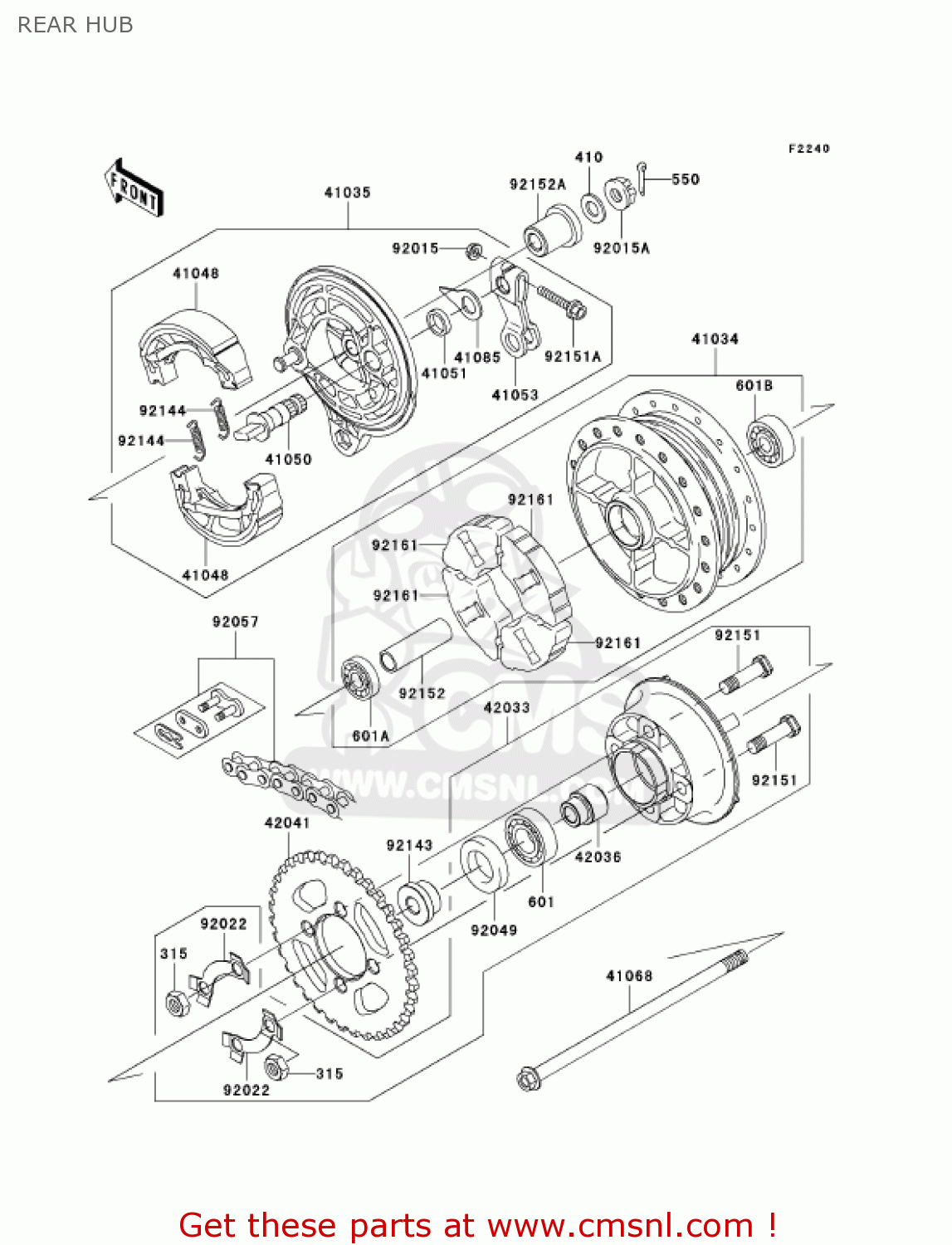

Rear hub diagram AN112D2 KAZER 2003 CANADA
REAR HUB AN112D2 KAZER 2003 CANADA
×
prices are in EUR
ref
part #
description
quantity
315
315B1000
ref: 315
NUT,10MM
€ 0.50
410
410B1200
ref: 410
WASHER-PLAIN-SMALL,12
€ 0.50
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6004UG
ref: 601
BEARING-BALL,#6004U
€ 27.50
601A
601B6201UG
ref: 601A
BEARING-BALL,#6201LUC
€ 18.50
601B
601B6301UG
ref: 601B
BEARING-BALL,#6301UG
€ 27.00
41034
410340011
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 156.00
41035
410351539
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 77.00
41048
410481139
ref: 41048
SHOE-BRAKE (NAS)
€ 13.00
41050
410501098
ref: 41050
CAM-BRAKE
€ 8.50
41051
41051001
ref: 41051
DUST SHIELD-BRAKE CAM
€ 2.50
41053
410531089
ref: 41053
LEVER-BRAKE-CAM
€ 5.00
41068
410681442
ref: 41068
AXLE,RR
€ 7.50
41085
410851079
ref: 41085
INDICATOR
€ 0.50
42033
420331225
ref: 42033
COUPLING-ASSY,RR HUB
€ 22.50
42036
420361292
ref: 42036
SLEEVE
€ 7.00
42041
420411544
ref: 42041
SPROCKET-HUB,36T
€ 31.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151870
ref: 92015A
NUT,CASTLE,12MM
€ 4.50
92022
920221705
ref: 92022
WASHER,LOCK
€ 5.00
92049
920491490
ref: 92049
SEAL-OIL
€ 2.00
92057
920571506
ref: 92057
CHAIN,DRIVE,DID428X10
€ 17.00
92143
921431533
ref: 92143
COLLAR
€ 3.50
92144
921441907
ref: 92144
SPRING,BRAKE SHOE
€ 2.50
92151
921511160
ref: 92151
BOLT
€ 2.00
92151A
921511209
ref: 92151A
BOLT
€ 2.50
92152
921521367
ref: 92152
COLLAR,RR BRAKE DRUM,
€ 2.00
92152A
921521433
ref: 92152A
COLLAR,RR AXLE,RH,L=3
€ 4.00
92161
921610084
ref: 92161
DAMPER,RR HUB SHOCK
€ 9.50
