SEAT (AN110-D3)
AN110D3 KAZER 2001 CANADA

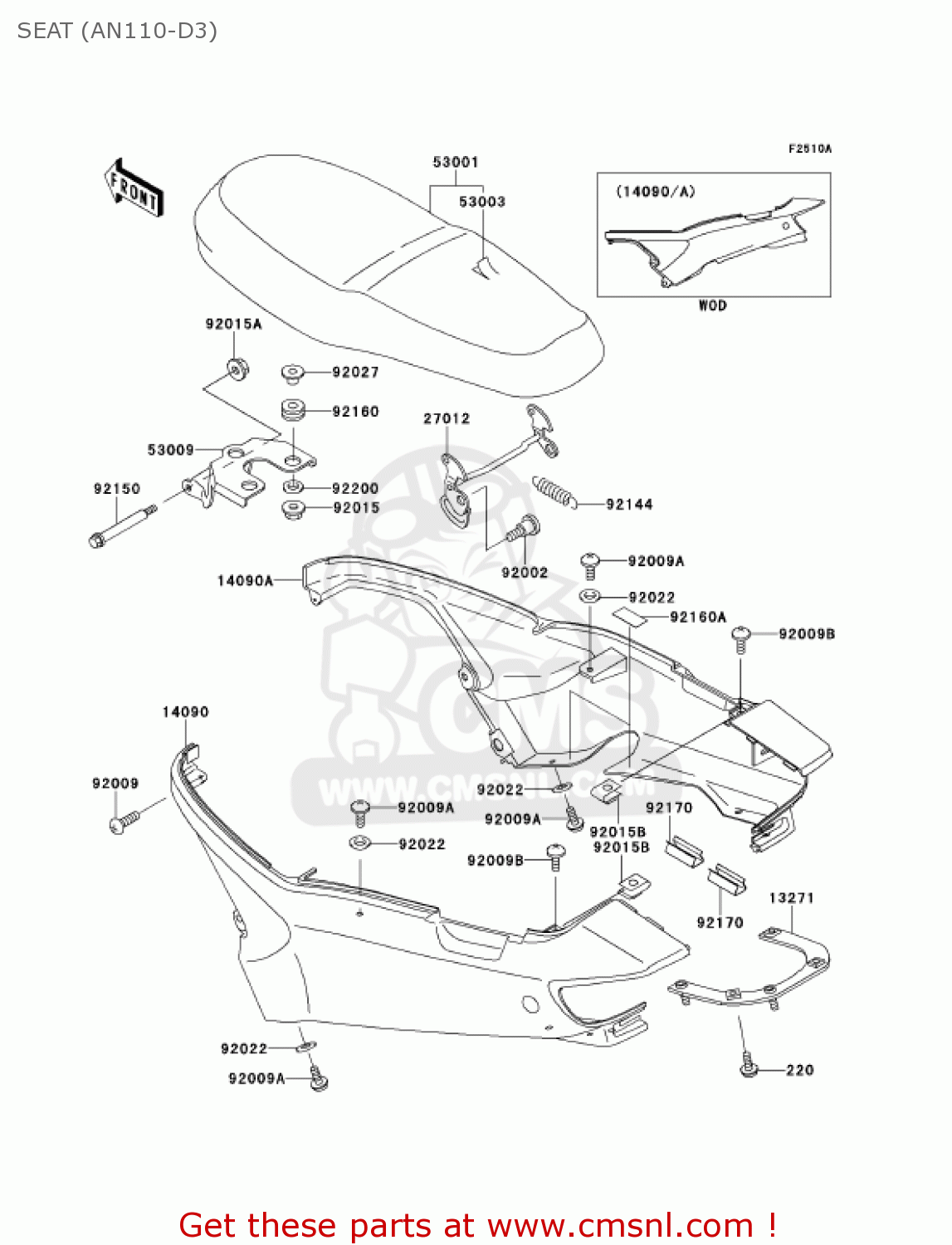

Seat (an110-d3) diagram AN110D3 KAZER 2001 CANADA
SEAT (AN110-D3) AN110D3 KAZER 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220D0610
ref: 220
SCREW-PAN-CROS
€ 2.00
13271
132711066
ref: 13271
FENDER PLATE
€ 9.50
14090
140901942TB
ref: 14090
COVER,SEAT,LH,S.RED
€ 26.00
14090A
140901943TB
ref: 14090A
COVER,SEAT,RH,S.RED
€ 26.00
27012
270121501
ref: 27012
SEAT LOCK HOOK
€ 8.00
53001
530011830MA
ref: 53001
SEAT ASSEMBLY,DUAL,BLACK
€ 119.50
53003
530031378MA
ref: 53003
SEAT,LEATHER,BLACK
€ 79.00
53009
530091091
ref: 53009
SEAT HINGE
€ 16.00
92002
920021616
ref: 92002
BOLT
€ 8.00
92009
920091158
ref: 92009
SCREW,4X16,BLACK
€ 2.50
92009A
920091662
ref: 92009A
SCREW
€ 2.50
92009B
920091663
ref: 92009B
SCREW
€ 2.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92015A
920151603
ref: 92015A
NUT
€ 3.00
92015B
920151671
ref: 92015B
NUT
€ 5.00
92022
920221143
ref: 92022
WASHER,6.5X16X1
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92144
921441120
ref: 92144
SPRING,SEAT LOCK RETU
€ 4.00
92150
921501716
ref: 92150
BOLT,6X55
€ 3.00
92160
921601294
ref: 92160
DAMPER
€ 0.50
92160A
921601559
ref: 92160A
SEAT COVER DAMPER
€ 2.00
92170
921701694
ref: 92170
CLAMP
€ 1.50
92200
922001087
ref: 92200
WASHER,6.5X22X1.6
€ 2.00
