CRANKCASE
AN110D3 KAZER 2001 CANADA

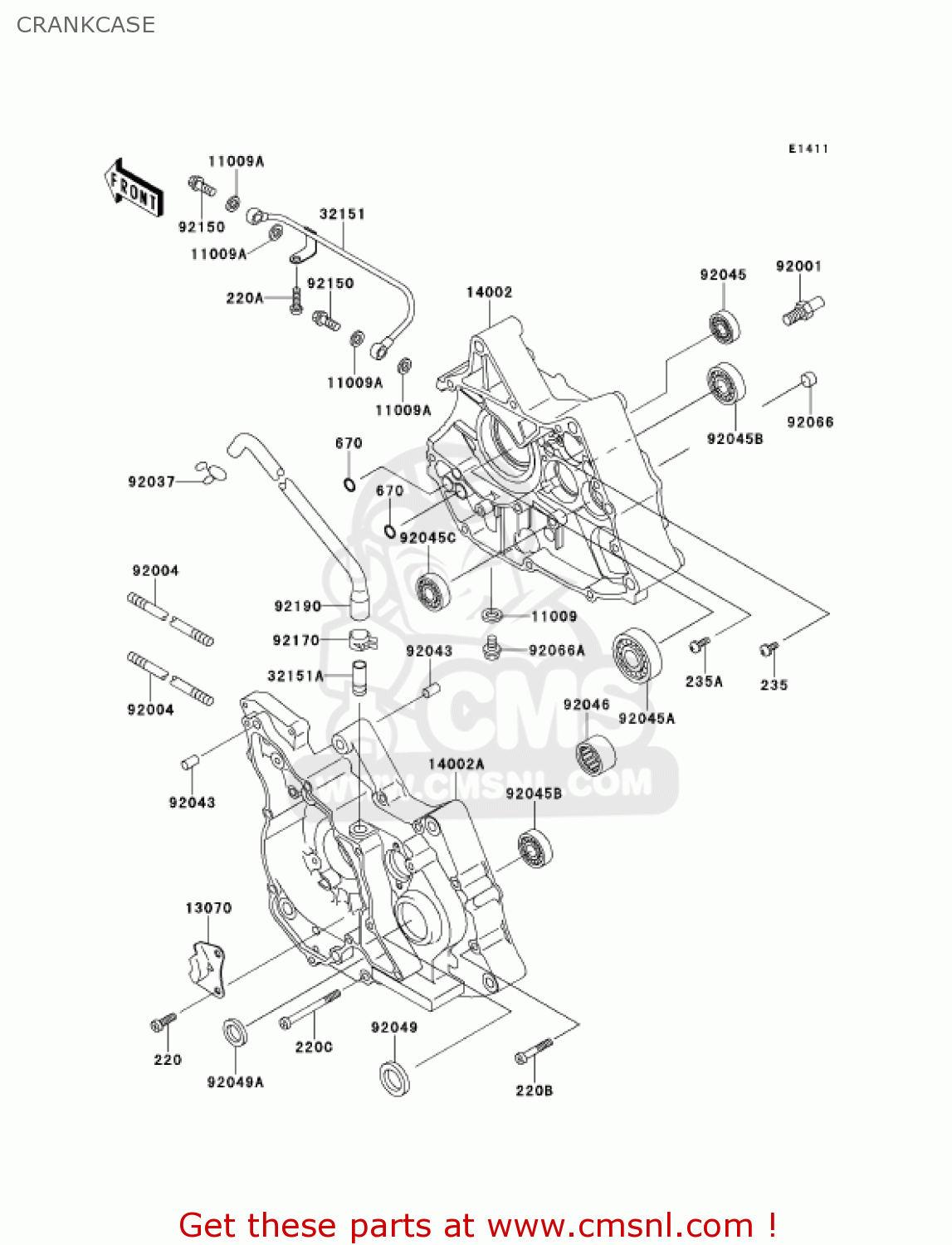

Crankcase diagram AN110D3 KAZER 2001 CANADA
CRANKCASE AN110D3 KAZER 2001 CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
220A
220X0612
ref: 220A
SCREW-PAN-CROS
€ 2.50
220B
220X0635
ref: 220B
SCREW-PAN-CROS
€ 2.50
220C
220X0675
ref: 220C
SCREW-PAN-CROS
€ 2.50
235
235B0510
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
235A
235B0614
ref: 235A
SCREW-PAN-WP-CROS
€ 2.50
670
670B1510
ref: 670
O RING,9.8X1.9
€ 2.50
11009
110091332
ref: 11009
GASKET,DRAIN PLUG (NAS)
€ 3.50
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
13070
130701279
ref: 13070
GUIDE
€ 6.00
14002
140021676
ref: 14002
CRANKCASE,RH
€ 106.00
14002A
140021878
ref: 14002A
CRANKCASE,LH
€ 78.00
32151
321511556
ref: 32151
OIL PIPE
€ 30.50
32151A
321511961
ref: 32151A
PIPE
€ 4.00
92001
920011455
ref: 92001
BOLT
€ 3.00
92004
92004053
ref: 92004
STUD,8X190
€ 3.00
92037
920371972
ref: 92037
CLAMP,TUBE
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92045
920451171
ref: 92045
BEARING-BALL,6804
€ 30.00
92045A
920451293
ref: 92045A
BEARING-BALL,TMB205CJ
€ 35.00
92045B
920451317
ref: 92045B
BALL BEARING
€ 10.50
92045C
920451318
ref: 92045C
BALL BEARING
€ 8.00
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
€ 19.50
92049
920491429
ref: 92049
SEAL-OIL
€ 9.50
92049A
920491431
ref: 92049A
SEAL-OIL
€ 9.50
92066
920661110
ref: 92066
PLUG
€ 4.00
92066A
920661174
ref: 92066A
PLUG,OIL DRAIN,12X15
€ 4.00
92150
921501556
ref: 92150
BOLT,BANJO,8X20
€ 6.00
92170
921701434
ref: 92170
CLAMP,BRAKE HOSE
€ 8.50
92190
921901498
ref: 92190
TUBE
€ 8.50
