CLUTCH
AN110C7 KAZER 2002 CANADA

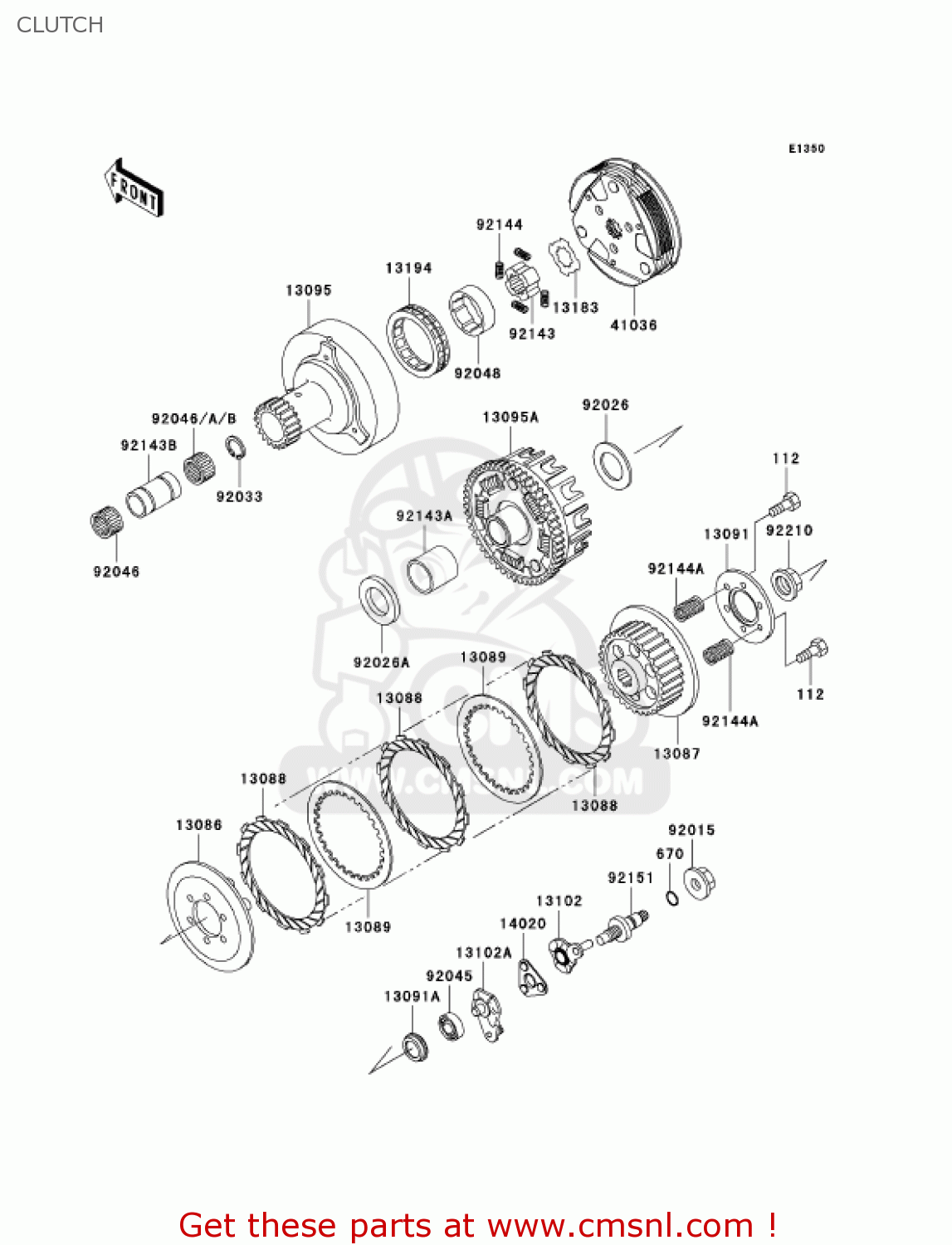

Clutch diagram AN110C7 KAZER 2002 CANADA
CLUTCH AN110C7 KAZER 2002 CANADA
×
prices are in EUR
ref
part #
description
quantity
112
112G0520
ref: 112
BOLT-UPSET
€ 2.50
670
670B1508
ref: 670
O RING,8MM
€ 1.00
13086
130861065
ref: 13086
WHEEL-CLUTCH
€ 23.00
13087
130871151
ref: 13087
HUB-CLUTCH
€ 35.00
13088
130881111
ref: 13088
PLATE-FRICTION (NAS)
€ 12.00
13089
130891087
ref: 13089
PLATE CLUTCH
€ 8.50
13091
130911782
ref: 13091
HOLDER,CLUTCH
€ 5.50
13091A
130911787
ref: 13091A
HOLDER
€ 9.00
13095
130951309
ref: 13095
HOUSING-COMP-CLUTCH
€ 324.00
13095A
130951349
ref: 13095A
CLUTCH HOUSING,COMPLETE
€ 141.50
13102
131021135
ref: 13102
RELEASE-COMP-CLUTCH
€ 42.00
13102A
131021136
ref: 13102A
RELEASE-COMP-CLUTCH
€ 42.00
13183
131831480
ref: 13183
PLATE
€ 9.00
13194
131941103
ref: 13194
CLUTCH-ONEWAY
€ 80.50
14020
140201100
ref: 14020
RETAINER
€ 14.00
41036
410361351
ref: 41036
HUB-ASSY,CLUTCH
€ 125.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92026
920261415
ref: 92026
SPACER
€ 5.50
92026A
920261464
ref: 92026A
SPACER
€ 4.00
92033
920331240
ref: 92033
RING-SNAP
€ 2.50
92045
920451123
ref: 92045
BEARING-BALL,#628
€ 23.50
92046
920461223
ref: 92046
BEARING-NEEDLE,BLUE
€ 15.50
92046A
920461224
ref: 92046A
(OPTION)
BEARING-NEEDLE,RED
€ 14.00
92046B
920461225
ref: 92046B
(OPTION)
BEARING-NEEDLE,WHITE
€ 14.00
92048
920481074
ref: 92048
RACE
€ 32.00
92143
921431661
ref: 92143
COLLAR
€ 27.00
92143A
921431663
ref: 92143A
COLLAR
€ 26.00
92143B
921431696
ref: 92143B
COLLAR
€ 27.50
92144
921441556
ref: 92144
SPRING
€ 3.00
92144A
921441880
ref: 92144A
SPRING,CLUTCH
€ 3.50
92151
921511069
ref: 92151
BOLT,CLUTCH RELEASE
€ 10.50
92210
922101163
ref: 92210
NUT,14MM
€ 7.00
