CARBURETOR
AN110C7 KAZER 2002 CANADA

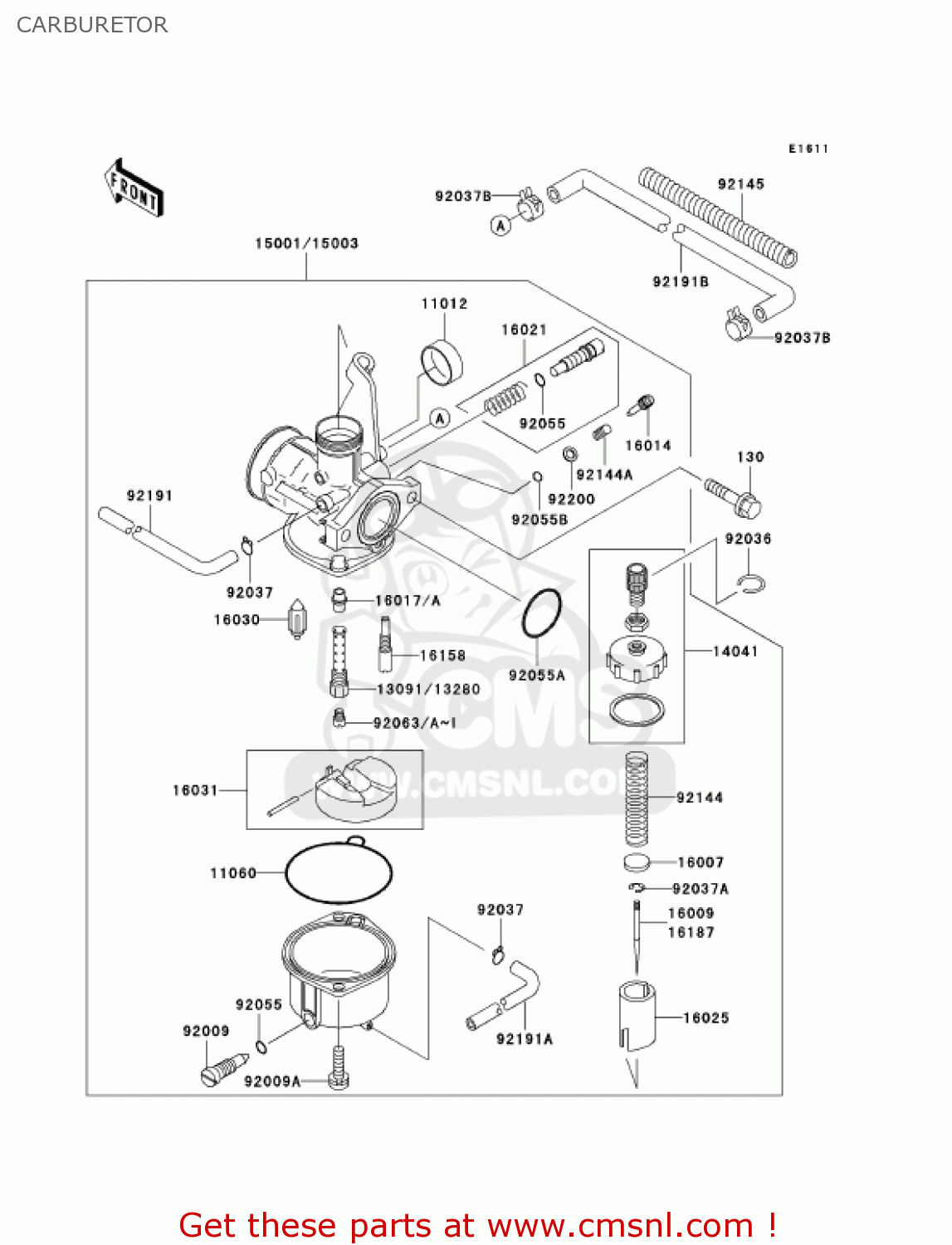

Carburetor diagram AN110C7 KAZER 2002 CANADA
CARBURETOR AN110C7 KAZER 2002 CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121940
ref: 11012
CAP,CHOKE
€ 7.00
11060
110601700
ref: 11060
GASKET,FLOAT CHAMBER (NAS)
€ 15.00
13280
132801260
ref: 13280
HOLDER,NEEDL JET
€ 18.00
14041
140411117
ref: 14041
COVER,COMPLETE
€ 12.00
15003
150031695
ref: 15003
CARBURETOR-ASSY
€ 164.00
16007
160071103
ref: 16007
SEAT-SPRING
€ 4.00
16014
160141093
ref: 16014
SCREW-PILOT AIR
€ 11.00
16017
160171327
ref: 16017
JET-NEEDLE
€ 35.00
16021
160211203
ref: 16021
SCREW-THROTTLE STOP
€ 11.00
16025
160251212
ref: 16025
THROTTLE VALVE,CA3.0
€ 63.00
16030
160301082
ref: 16030
VALVE-FLOAT,FLOAT
€ 42.50
16031
160311088
ref: 16031
FLOAT
€ 40.50
16158
161581063
ref: 16158
JET-SLOW,#38
€ 10.50
16187
161871222
ref: 16187
NEEDLE-JET,D5051E
€ 20.00
92009
920091057
ref: 92009
SCREW,DRAIN
€ 10.00
92009A
920091750
ref: 92009A
SCREW, 4X8
€ 2.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371142
ref: 92037
CLAMP,TUBE
€ 2.50
92037A
920371401
ref: 92037A
CLAMP,JET NEEDLE
€ 2.50
92037B
920371601
ref: 92037B
CLAMP
€ 9.00
92055
920551053
ref: 92055
O RING,DRAIN SCREW
€ 3.00
92055A
920551541
ref: 92055A
RING-O
€ 2.00
92055B
920551542
ref: 92055B
RING-O
€ 2.50
92063A
920631325
ref: 92063A
(OPTION)
JET-MAIN,#82
€ 10.50
92063B
920631326
ref: 92063B
JET-MAIN,#85
€ 10.00
92063D
920631327
ref: 92063D
(OPTION)
JET-MAIN,#90
€ 10.00
92063E
920631328
ref: 92063E
(OPTION)
JET-MAIN,#88
€ 10.00
130
130Y0625
ref: 130
BOLT-FLANGED
€ 2.00
92063H
920631414
ref: 92063H
(OPTION)
JET,MAIN,#80
€ 7.50
92144
921441875
ref: 92144
SPRING,THROTTLE
€ 11.00
92144A
921441876
ref: 92144A
SPRING
€ 3.50
92145
921451370
ref: 92145
SPRING
€ 6.00
92191
921911141
ref: 92191
TUBE,3.5X6.5X548
€ 11.50
92191A
921911142
ref: 92191A
TUBE,3.5X6.5X298
€ 8.00
92191B
921911271
ref: 92191B
TUBE,FUEL
€ 7.00
92200
922001270
ref: 92200
WASHER
€ 2.00
