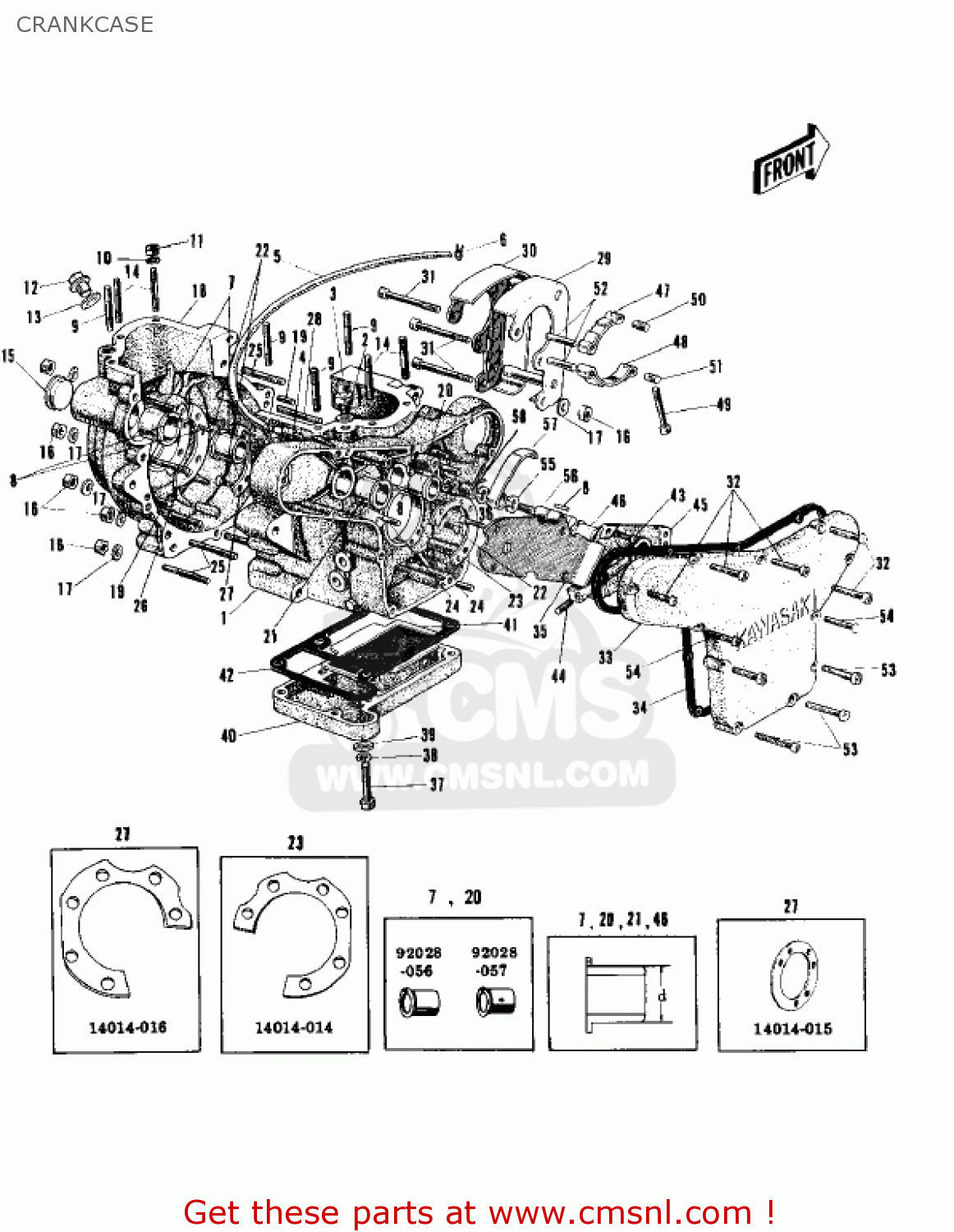

CRANKCASE

ref

part #

description

quantity

?

14001018
ref: ?
Includes items 1, 7,

CRANKCASE SET

€ 1,125.50

?

14001019
ref: ?
Includes items 1, 7,

CRANKCASE SET

€ 1,125.50

2

92065050
ref: 2

GASKET-CROWN NUT

€ 1.00

3

16124001
ref: 3

OIL PIPE FITTING NIPPLE

€ 18.50

4

14070002
ref: 4

VALVE-BREATHER

€ 12.00

5

92059091
ref: 5
L=350 M/M

PIPE,BREATHER

€ 6.50

6

92037028
ref: 6

CLAMP,TUBE

€ 2.50

7

92028056
ref: 7
WHN EXH USE 92028-05

CAMSHAFT BUSHING,A

€ 22.00

7

92028057
ref: 7

CAMSHAFT BUSHING,B

€ 39.50

8

551A0305
ref: 8

PIN DOWEL 3X5

€ 0.50

9

92004021
ref: 9
WHN EXH USE 92004-02

STUD,10X22

€ 43.50

9

92004021
ref: 9

STUD,10X22

€ 43.50

10

410B1000
ref: 10

WASHER-PLAIN-SMALL,10

€ 0.50

11

314G1000
ref: 11

NUT,10M/M

€ 1.00

12

755C1600
ref: 12
WHN EXH USE 92067-00

PLUG DRAIN 16MM

€ 7.00

12

92067004
ref: 12

PLUG,16MM

€ 12.00

13

670B2014
ref: 13

O RING,14MM

€ 1.00

14

92004022
ref: 14
WHN EXH USE 92004-02

STUD,10X28

€ 11.00

14

92004022
ref: 14

STUD,10X28

€ 11.00

15

92073004
ref: 15

ENGINE COVER CAP,LH

€ 9.50

16

317G0800
ref: 16
1 EA NOT REQUIRED FO

NUT-HEX-SMALL,8MM

€ 0.50

17

410B0800
ref: 17
1 EA NOT REQUIRED FO

WASHER-PLAIN-SMALL,8M

€ 0.50

19

551A0816
ref: 19

PIN-DOWEL,8X16

€ 0.50

20

92028057
ref: 20

CAMSHAFT BUSHING,B

€ 39.50

21

92028058
ref: 21

IDLE SHAFT BUSHING,A

€ 30.00

22

221B0612
ref: 22

SCREW-CNTSNK HD,6X12

€ 1.50

22

221B0612
ref: 22

SCREW-CNTSNK HD,6X12

€ 1.50

23

14014012
ref: 23
*NOT REQUIRED FOR 92

HOLDER-CRANK BEARING

€ 2.00

23

14014012
ref: 23
*NOT REQUIRED FOR 92

HOLDER-CRANK BEARING

€ 2.00

23

14014013
ref: 23
WHN EXH USE 14014-01

PLATE-POSITION

€ 2.00

23

14014014
ref: 23

HOLDER-CRNK BEARING,A

€ 3.50

24

92042007
ref: 24

PIN-DOWEL

€ 4.00

25

172G0830
ref: 25

STUD,8X30

€ 1.50

26

14014012
ref: 26

HOLDER-CRANK BEARING

€ 2.00

27

14014012
ref: 27

HOLDER-CRANK BEARING

€ 2.00

27

14014015
ref: 27

PLATE-POSITION

€ 3.50

27

14014016
ref: 27

BEARING HOLDER,C

€ 22.00

28

172G0850
ref: 28
USE FOR 14001-019

STUD,8X50

€ 5.00

29

14052001
ref: 29

ENGINE BRACKET,RH

€ 52.50

30

14052002
ref: 30

ENGINE BRACKET,LH

€ 52.50

31

114G0895
ref: 31
WHN EXH USE 92001-04

BOLT HEX HEAD, 8X95

€ 6.00

31

92003044
ref: 31

BOLT,HEX HEAD,8X95

€ 10.00

3

220B0628
ref: 3

SCREW-PAN HEAD,6X28

€ 2.50

33

14032028A
ref: 33

EQ PANT FLGRN/BU/GY28

€ 133.50

34

14046009
ref: 34

GASKET-ENGINE COVER

€ 35.50

35

14068001
ref: 35

BREATHER PLATE

€ 9.50

36

220A0612
ref: 36
WHN EXH USE 220B0612

UNAVAILABLE IN PRICE BOOK

€ 1.00

36

220B0612
ref: 36

SCREW-PAN HEAD,6X12

€ 1.00

37

110R0635
ref: 37
WHN EXH USE 110B0632

BOLT 6X35

€ 3.50

37

110N0632
ref: 37

BOLT,6X32

€ 2.50

38

461F0600
ref: 38

WASHER-SPRING,6MM

€ 0.50

39

410B0600
ref: 39

WASHER-PLAIN-SMALL,6M

€ 0.50

40

16110001
ref: 40

OIL PAN

€ 62.50

41

16111001
ref: 41

OIL STRAINER

€ 9.50

42

16112001
ref: 42

GASKET-OIL PAN (MCA)

€ 4.00

43

220B0620
ref: 43

SCREW-PAN HEAD,6X20

€ 2.50

44

291H0610
ref: 44

SCREW SLOTTED

€ 2.00

45

14018002
ref: 45

IDLE SHAFT HOLDER

€ 72.50

46

92028059
ref: 46

IDLE SHAFT BUSHING,B

€ 38.00

47

21063002
ref: 47

DYNAMO CLAMP BAND,B

€ 39.50

48

21063001
ref: 48

DYNAMO CLAMP BAND,A

€ 39.50

49

114G0850
ref: 49

BOLT-HEX HEAD,8X50

€ 3.00

50

21056002
ref: 50
3 M/M NUT

PIN

€ 16.00

51

21056003
ref: 51

PIN

€ 16.00

52

21056004
ref: 52

DYNAMO CLAMP BAND PIN

€ 8.00

53

220B0640
ref: 53

SCREW-PAN HEAD,6X40

€ 2.00

54

220B0625
ref: 54

SCREW-PAN HEAD,6X25

€ 1.50

55

482J8000
ref: 55

CIRCLIP-TYPE-E,8MM

€ 0.50

56

21056005
ref: 56

CHAIN TENSIONER PIN

€ 13.50

57

21062002
ref: 57
NOT REQUIRED FOR REF

TENSIONER-CHAIN

€ 15.50

57

21062002
ref: 57

TENSIONER-CHAIN

€ 15.50

58

21065001
ref: 58

SPRING-CHAIN TENSION

€ 8.50
