CAMSHAFT/ROCKER ARMS/VALVES
W1SS 1969 USA CANADA

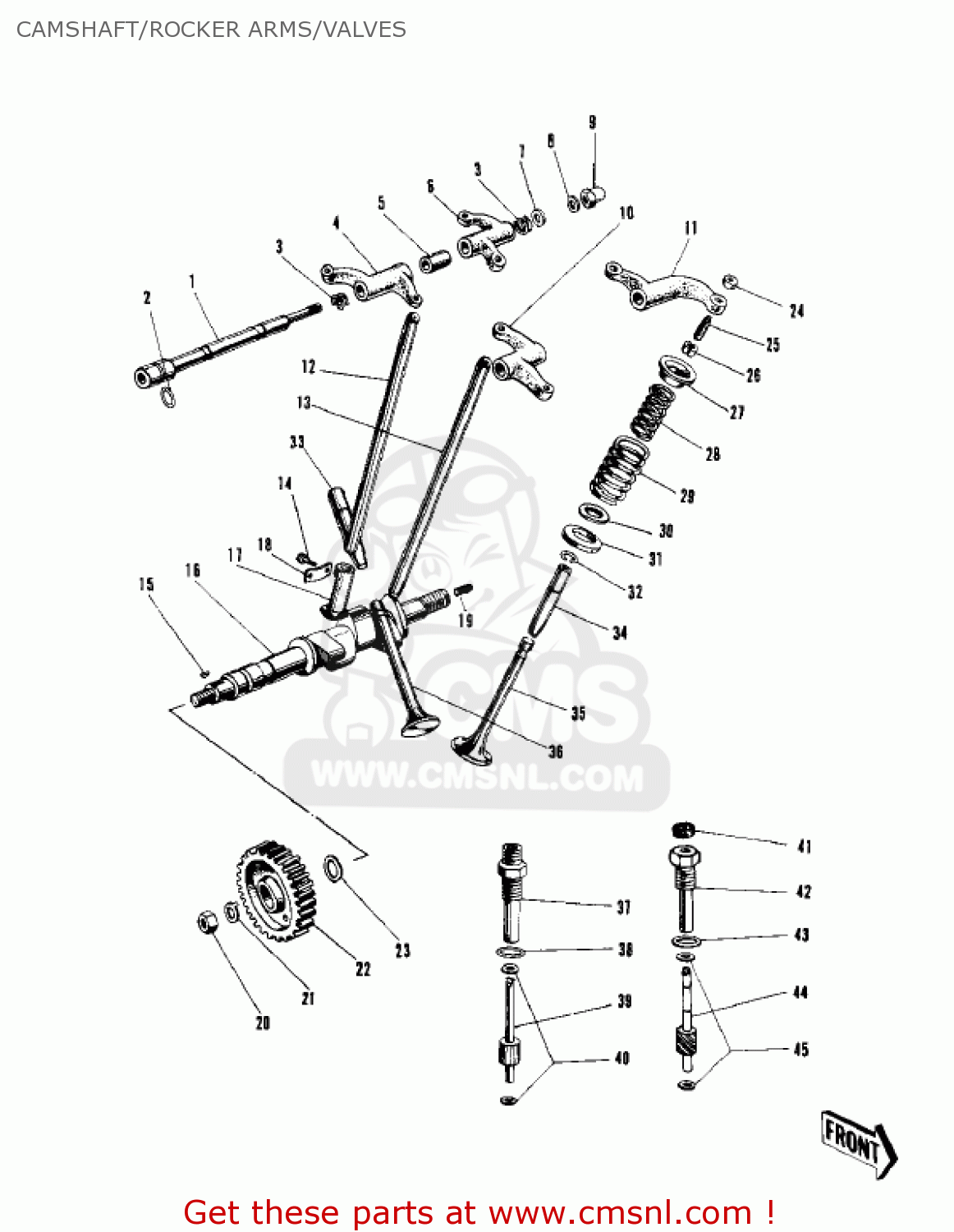

Camshaft/rocker arms/valves diagram W1SS 1969 USA CANADA
CAMSHAFT/ROCKER ARMS/VALVES W1SS 1969 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
12020002
ref: 1
ROCKER ARM SHAFT
€ 131.50
2
670B2014
ref: 2
O RING,14MM
€ 1.00
3
92081041
ref: 3
ROCKER SHAFT SPRING
€ 3.00
4
12016002
ref: 4
ARM-R.H INLET ROCKER
€ 30.50
5
92028048
ref: 5
ROCKER ARM SHAFT BUSHING
€ 36.50
6
12016006
ref: 6
ARM-L.H INLET ROCKER
€ 26.00
7
410B1000
ref: 7
D=22
WASHER-PLAIN-SMALL,10
€ 0.50
8
92065050
ref: 8
D=18
GASKET-CROWN NUT
€ 1.00
9
92020013
ref: 9
NUT,CROWN,10MM
€ 12.50
10
12016001
ref: 10
ARM-R.H EXHST ROCKER.
€ 26.50
11
12016010
ref: 11
ARM-L.H EXH ROCKER
€ 30.50
12
12038003
ref: 12
L=199.5 M/M
ROD-INLET PUSH
€ 4.50
13
12038004
ref: 13
L=222.5 M/M
ROD-EXHAUST PUSH
€ 5.50
14
92003033
ref: 14
BOLT,TAPPET FITTING
€ 26.50
15
92038009
ref: 15
CAM SHAFT WOODRUFF KEY
€ 4.50
16
12044003
ref: 16
CAMSHAFT
€ 307.00
17
12032003
ref: 17
TAPPET
€ 108.50
18
92022110
ref: 18
TAPPET LOCK WASHER
€ 23.50
19
92066012
ref: 19
CAMSHAFT PLUG
€ 8.00
20
92016038
ref: 20
CAM GEAR NUT
€ 3.00
21
420B1410
ref: 21
WASHER, LOCK, 14MM
€ 2.00
22
12045002
ref: 22
GEAR-CAM SHAFT
€ 82.00
23
92025036
ref: 23
CAMSHAFT SHIM,1.2MM
€ 0.00
23
92025037
ref: 23
CAMSHAFT SHIM,1.3MM
€ 8.00
23
92025038
ref: 23
CAMSHAFT SHIM,1.4MM
€ 15.50
23
92025039
ref: 23
CAMSHAFT SHIM,1.5MM
€ 0.00
23
92025040
ref: 23
CAMSHAFT SHIM,1.6MM
€ 9.50
23
92025041
ref: 23
CAMSHAFT SHIM,1.7MM
€ 8.00
23
92025042
ref: 23
CAMSHAFT SHIM,1.8MM
€ 0.00
24
92016030
ref: 24
NUT-LOCK
€ 0.50
25
92014005
ref: 25
SCREW
€ 5.00
26
12011001
ref: 26
VALVE SPRING COLLAR
€ 9.50
27
12009003
ref: 27
RETAINER VALVE SPRING
€ 18.50
28
12007004
ref: 28
WHN EXH USE 12007-00
SPRING-INNER VALVE
€ 5.50
28
12007004
ref: 28
SPRING-INNER VALVE
€ 5.50
29
12007007
ref: 29
WHN EXH USE 12007-00
SPRING-OUTER VALVE
€ 3.00
29
12007008
ref: 29
SPRING-OUTER VALVE
€ 3.00
30
92065049
ref: 30
GASKET (NAS)
€ 1.00
31
12010002
ref: 31
SEAT SPRING
€ 15.50
32
92036012
ref: 32
CIRCLIP
€ 7.50
33
12006002
ref: 33
INLET VALVE GUIDE
€ 22.00
33
12012001A
ref: 33
VALVE GUIDE
€ 14.00
34
12006004
ref: 34
GUIDE-INLET
€ 25.50
34
12012001A
ref: 34
VALVE GUIDE
€ 14.00
35
12005003
ref: 35
IDENT LETTER "EX"
VALVE,EXHAUST
€ 13.50
35
12031002
ref: 35
NON DESCRIPTION
€ 3.00
36
12004009
ref: 36
IDENT LETTER "IN"
VALVE,INLET
€ 12.50
36
12030002
ref: 36
VALVE,INLET,0.01 O/S
€ 28.50
36
12004010
ref: 36
IDENT LETTER "IN"
VALVE-INLET
€ 21.00
37
92087002
ref: 37
GUIDE-TACHOMETER
€ 14.00
38
670B2016
ref: 38
O RING,16MM
€ 1.00
39
13223001
ref: 39
GEAR-TACHOMETER
€ 10.50
40
92026031
ref: 40
TACHOMETER GEAR SPACER
€ 6.50
41
92054004
ref: 41
OIL SEAL
€ 14.50
42
92087004
ref: 42
BUSHING-METER GEAR,TA
€ 90.00
43
92055022
ref: 43
'O' RING
€ 4.00
44
13223002
ref: 44
GEAR-TACHOMETER
€ 20.50
45
92026045
ref: 45
SPACER-TACHMETER GEAR
€ 2.00
