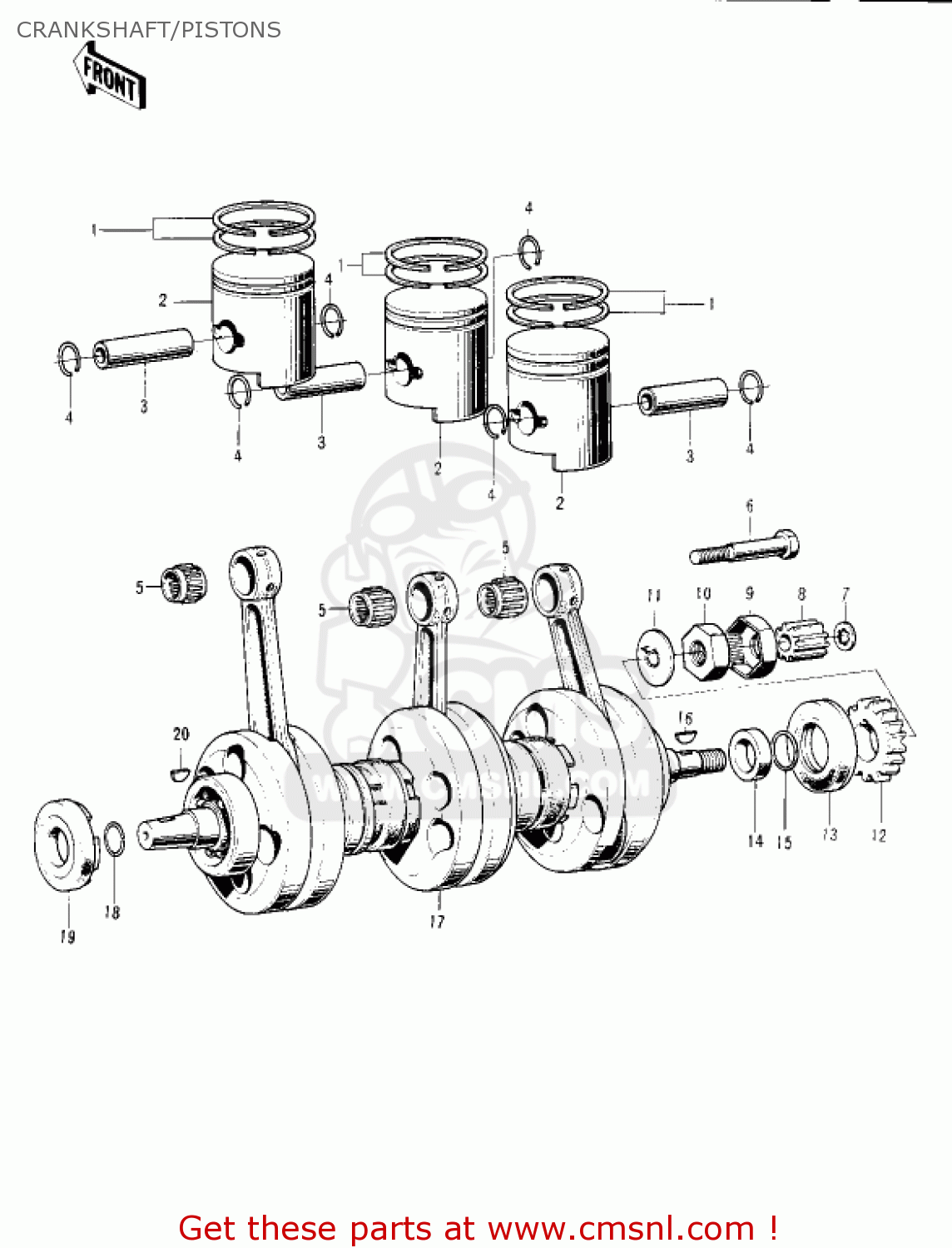

CRANKSHAFT/PISTONS

ref

part #

description

quantity

1

13008033
ref: 1

RING-SET-PISTON,STD

€ 71.00

1

13024041
ref: 1

RING-SET-PISTON LL,O/

€ 37.50

1

13025038
ref: 1

RING-SET-PISTON L,O/S

€ 79.00

2

13001056
ref: 2

PISTON-ENGINE,STD

€ 44.50

2

13027055
ref: 2

PISTON-ENGINE-LL,O/S

€ 44.00

2

13029057
ref: 2

PISTON-ENGINE-L,O/S 0

€ 92.50

3

13002021
ref: 3

PIN-PISTON

€ 13.00

4

92036005
ref: 4

CIRCLIP-PISTON PIN

€ 2.50

5

13033007
ref: 5

BEARING-NEEDLE,KTV151

€ 30.00

6

92003068
ref: 6

BOLT-OIL PUMP GEAR

€ 3.00

7

463H0600
ref: 7

WASHER-LOCK,6MM

€ 0.50

8

16084014
ref: 8

PINION-OIL PUMP

€ 27.50

9

92024021
ref: 9

WASHER-LOCK

€ 8.50

10

92015019
ref: 10

NUT,18MM

€ 4.00

11

92024067
ref: 11

WASHER,LOCK

€ 2.00

12

13121021
ref: 12

PINION-PRIMARY

€ 89.50

13

92050052
ref: 13

OIL SEAL,TC326210

€ 28.00

14

92027031
ref: 14

COLLAR-CRANK OIL SEAL

€ 17.50

15

92055018
ref: 15

RING-O,22MM

€ 2.50

16

92038015
ref: 16

WOODRUFF KEY

€ 3.50

17

130311008
ref: 17

CRANK & CONROD ASSY

€ 598.00

18

92036013
ref: 18

CIRCLIP

€ 2.00

19

92050041
ref: 19

OIL SEAL,TCY256210

€ 17.50

20

92038001
ref: 20

WOODRUFF KEY

€ 3.00
