FUEL TANK/OIL TANK/LABELS ('71-'
MT1B 1974

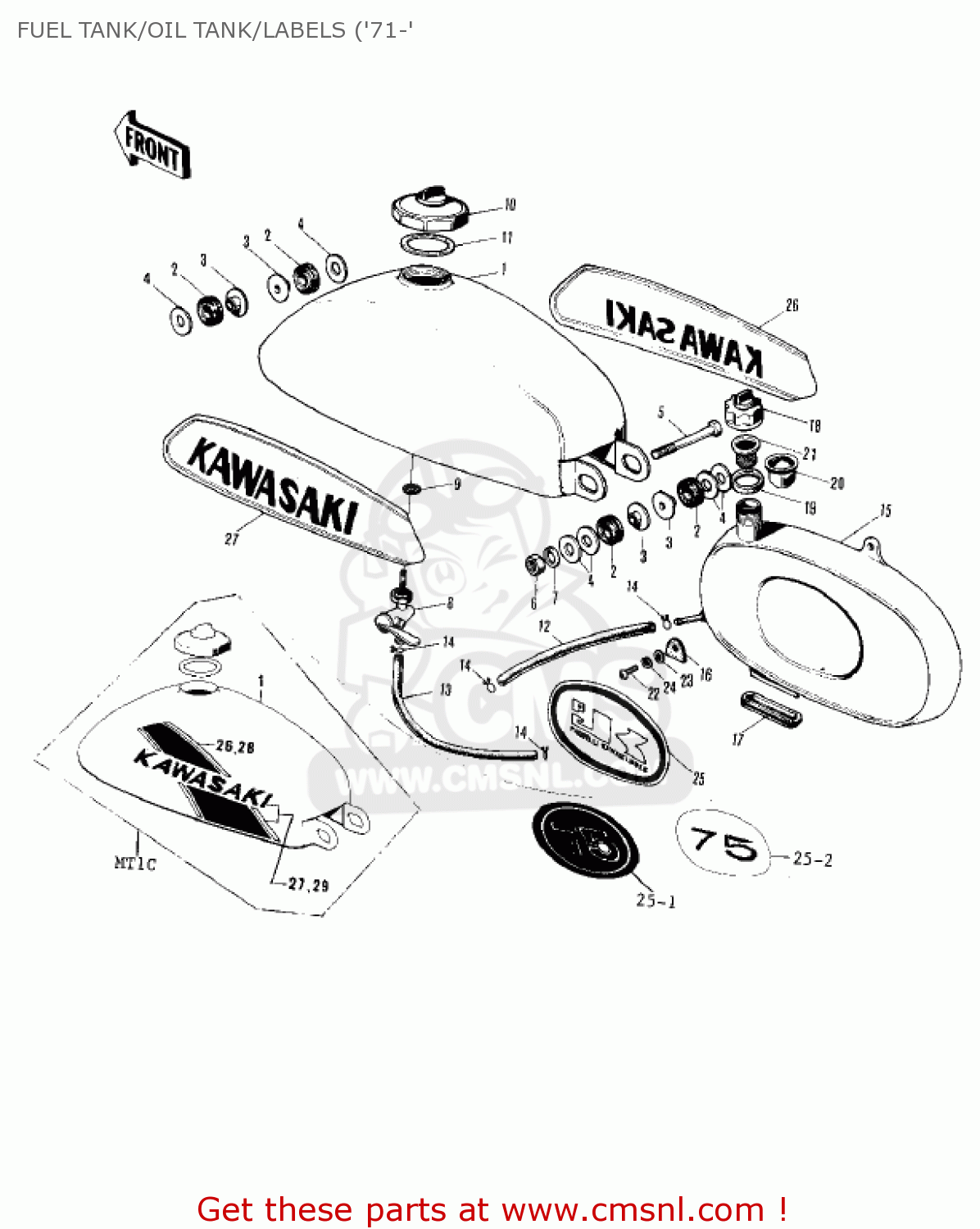

Fuel tank/oil tank/labels ('71-' diagram MT1B 1974
FUEL TANK/OIL TANK/LABELS ('71-' MT1B 1974
×
prices are in EUR
ref
part #
description
quantity
1
5100106454
ref: 1
MT1
FUEL TANK,LIME GREEN
€ 330.00
1
5100106472
ref: 1
MT1A
TANK-FUEL,B.ORANGE
€ 86.00
1
510010641M
ref: 1
MT1B
FUEL TANK,CANDY LIME
€ 330.00
1
510010643E
ref: 1
MT1C
FUEL TANK,VIVID YELLOW
€ 330.00
2
92075019
ref: 2
DAMPER RUBB-TANK FRNT
€ 2.00
3
92027080
ref: 3
COLLAR
€ 3.50
4
920221564
ref: 4
WASHER
€ 2.50
5
920011226
ref: 5
BOLT,HEX HEAD,8X85
€ 1.50
6
311B0800
ref: 6
NUT,8MM
€ 0.50
7
461F0800
ref: 7
WASHER-SPRING,8MM
€ 0.50
8
51023030
ref: 8
TAP-ASSY,FUEL
€ 40.50
8
51023030
ref: 8
MT1C
TAP-ASSY,FUEL
€ 40.50
9
92065075
ref: 9
GASKET-FUEL COCK JONT (NAS)
€ 2.00
10
51048005
ref: 10
CAP-FUEL TANK
€ 24.50
11
51059003
ref: 11
GASKET-FUEL TANK CAP (NAS)
€ 4.00
11
51059006
ref: 11
MT1C
GASKET,FUEL TANK CAP (NAS)
€ 6.00
12
92059072
ref: 12
TUBE,4.5X9X545
€ 22.00
13
92059074
ref: 13
TUBE
€ 22.00
14
92037010
ref: 14
CLAMP-FUEL PIPE
€ 2.50
15
52001023
ref: 15
MT1
TANK-OIL
€ 48.00
15
5200102372
ref: 15
MT1A
TANK-OIL,B.ORANGE
€ 14.00
15
520010231M
ref: 15
MT1B
OIL TANK,CANDY LIME
€ 64.50
15
520010233E
ref: 15
MT1C
OIL TANK,VIVID YELLOW
€ 0.00
16
52016001
ref: 16
OIL TANK PLATE
€ 6.50
17
92075070
ref: 17
DAMPER RUBBER
€ 2.00
18
52002002
ref: 18
CAP-OIL TANK
€ 11.50
19
92065079
ref: 19
GASKET-OIL TANK CAP (NAS)
€ 6.00
20
52004007
ref: 20
STRAINER-OIL TANK CAP
€ 5.50
21
52004008
ref: 21
STRAINER-OIL TANK CAP
€ 3.00
23
410B0600
ref: 23
WASHER-PLAIN-SMALL,6M
€ 0.50
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
56018059
ref: 25
MT1
EMBLEM-OIL TANK
€ 2.50
25-1
56018159
ref: 25-1
MT1A/B
OIL TANK EMBLEM
€ 23.50
25-2
56018187
ref: 25-2
MT1C
MARK
€ 35.00
26
56013025
ref: 26
EMBLEM-FUEL TANK,L.H
€ 31.50
27
56014019
ref: 27
EMBLEM-FUEL TANK R.H
€ 41.00
28
56027221SP
ref: 28
MT1C
FUEL TANK DECAL,UPPER,LH
€ 22.00
29
56027222SP
ref: 29
MT1C
FUEL TANK DECAL,LOWER,LH
€ 28.50
30
56027223SP
ref: 30
MT1C
FUEL TANK DECAL,UPPER,RH
€ 22.00
31
56027224SP
ref: 31
MT1C
FUEL TANK DECAL,LOWER,RH
€ 36.50
