IGNITION/GENERATOR/REGULATOR (H1

H1A 1971 CANADA

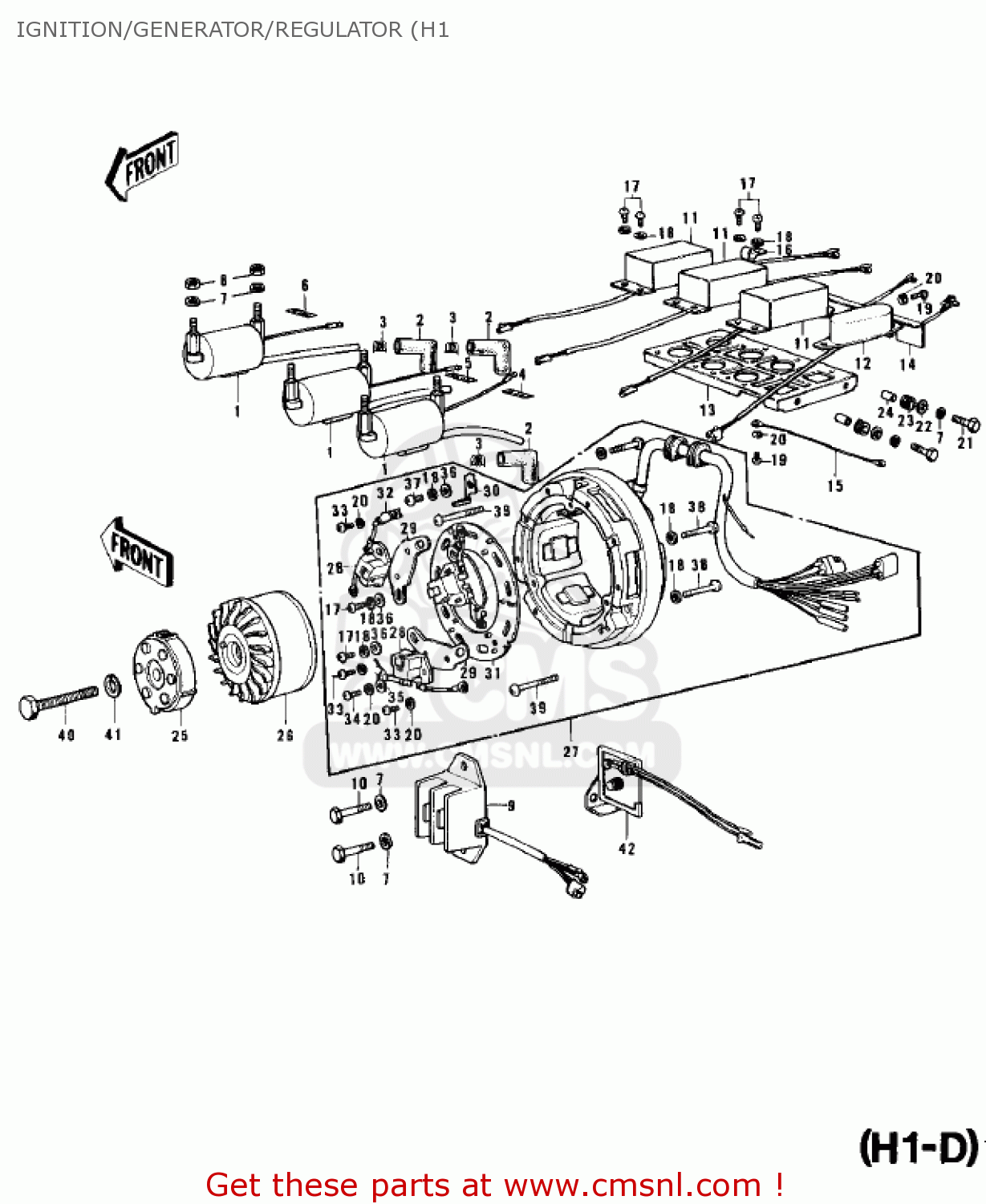

Ignition/generator/regulator (h1 diagram H1A 1971 CANADA

IGNITION/GENERATOR/REGULATOR (H1 H1A 1971 CANADA

IGNITION/GENERATOR/REGULATOR (H1 H1A 1971 CANADA

prices are in EUR

ref

part #

description

quantity

1

21121064
ref: 1

COIL-IGNITION

€ 101.50

2

21130009
ref: 2

CAP-SPARK PLUG

€ 15.00

3

92101001
ref: 3

SPRING-SPARK PLUG CAP

€ 1.50

4

21168001
ref: 4

LABEL,LEFT

€ 4.50

5

21168002
ref: 5

LABEL,CENTER

€ 4.00

6

21168003
ref: 6

LABEL,RIGHT

€ 5.50

7

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

8

311B0600
ref: 8

NUT,6MM

€ 0.50

9

210661036
ref: 9

REGULATOR

€ 208.50

10

112G0616
ref: 10

BOLT UPSET,6X16

€ 1.00

11

21119016
ref: 11

IGNITION UNIT A

€ 325.50

12

21120006
ref: 12

IGNITION UNIT B

€ 278.00

13

21155005
ref: 13

PLATE,IGNITION UNIT

€ 13.00

14

21155004
ref: 14

PLATE

€ 3.50

15

21045009
ref: 15

WIRE-LEAD

€ 1.50

16

21098009
ref: 16

CLAMP-WIRE

€ 1.00

17

220B0510
ref: 17

SCREW-PAN-CROS,5X10

€ 0.50

18

461F0500
ref: 18

WASHER-SPRING,5MM

€ 0.50

19

220B0406
ref: 19

SCREW-PAN-CROS,4X6

€ 2.50

20

461F0400
ref: 20

WASHER-SPRING,4MM

€ 0.50

21

112G0618
ref: 21

BOLT-UPSET

€ 0.50

22

92022125
ref: 22

WASHER,6.5X20X1.6

€ 1.00

23

92075051
ref: 23

DAMPER RUBBER

€ 2.50

24

92027103
ref: 24

COLLAR

€ 2.50

25

21007021
ref: 25

ROTOR-S.G

€ 256.50

26

21007024
ref: 26

ROTOR

€ 237.00

27

21076015
ref: 27

YOKE ASSY

€ 318.50

28

21152003
ref: 28

PICK UP

€ 134.50

29

21156002
ref: 29

PLATE-PICK UP

€ 8.50

30

21020002
ref: 30

POINTER-IGN TIMING

€ 1.00

31

21155002
ref: 31

PLATE-YOKE

€ 14.00

32

21098008
ref: 32

CLAMP-LEAD WIRE

€ 1.50

33

220B0408
ref: 33

SCREW-PAN-CROS

€ 0.50

34

220B0410
ref: 34

SCREW-PAN-CROS

€ 2.00

35

410B0400
ref: 35

WASHER-PLAIN-SMALL,4M

€ 0.50

36

411B0500
ref: 36

WASHER-PLAIN,5MM

€ 0.50

37

220B0512
ref: 37

SCREW-PAN-CROS

€ 0.50

38

220B0535
ref: 38

SCREW-PAN-CROS

€ 2.00

39

220B0540
ref: 39

SCREW-PAN-CROS

€ 2.00

40

920011583
ref: 40

BOLT,FLANGED,8X70

€ 6.00

41

461F0800
ref: 41

WASHER-SPRING,8MM

€ 0.50

42

21061014
ref: 42

RECTIFIER

€ 59.50
