FOOTRESTS/STANDS/BRAKE PEDAL ('7
G3SSD 1974 USA CANADA

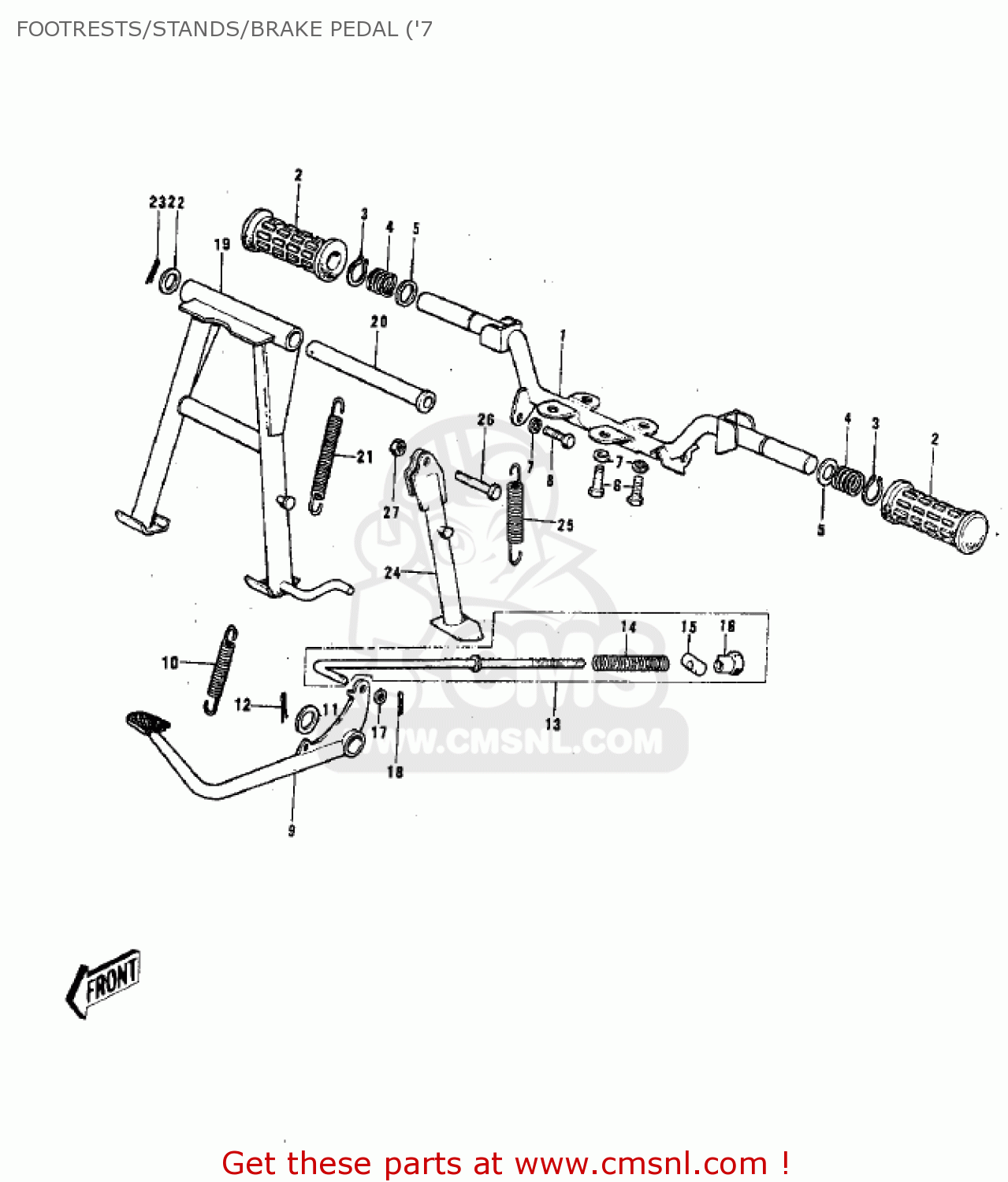

Footrests/stands/brake pedal ('7 diagram G3SSD 1974 USA CANADA
FOOTRESTS/STANDS/BRAKE PEDAL ('7 G3SSD 1974 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
34002048
ref: 1
FOOTREST BAR
€ 123.00
2
92076006
ref: 2
DAMPER,STEP
€ 10.00
3
480J1600
ref: 3
CIRCLIP-TYPE-C,16MM
€ 2.50
4
34006002
ref: 4
SPRING-FOOTREST PEG
€ 3.00
5
92022049
ref: 5
WASHER-FOLDING PEG
€ 2.00
6
115G0816
ref: 6
BOLT-HEX,HEAD 8X16
€ 0.50
6
116B0816
ref: 6
BOLT-HEX HEAD,8X16
€ 0.50
7
461F0800
ref: 7
WASHER-SPRING,8MM
€ 0.50
8
115G0820
ref: 8
BOLT,8X20
€ 2.00
8
115G0820
ref: 8
BOLT,8X20
€ 2.00
9
43001014
ref: 9
PEDAL-BRAKE
€ 19.50
10
43005005
ref: 10
SPRING-BRAKE PEDAL
€ 3.00
11
92022085
ref: 11
WASHER,15.3X24X1.2
€ 2.50
12
550D3030
ref: 12
PIN-COTTER,3.0X30
€ 1.50
13
430105003
ref: 13
BRAKE ROD ASSY
€ 15.00
14
43012001
ref: 14
SPRING,BRAKE ROD
€ 3.00
15
92043039
ref: 15
PIN,BRAKE ROD
€ 4.50
16
92015042
ref: 16
NUT-BRAKE ROD ADJUST
€ 4.00
17
410B0600
ref: 17
WASHER-PLAIN-SMALL,6M
€ 0.50
18
550D2015
ref: 18
PIN-COTTER,2.0X15
€ 1.00
19
340111045
ref: 19
STAND-CENTER
€ 50.00
20
34019006
ref: 20
SHAFT-MAIN STAND
€ 9.00
21
34023005
ref: 21
SPRING-MAIN STAND
€ 6.50
22
92022085
ref: 22
WASHER,15.3X24X1.2
€ 2.50
23
550D3030
ref: 23
PIN-COTTER,3.0X30
€ 1.50
24
34024053
ref: 24
STAND,SIDE
€ 23.00
25
34025001
ref: 25
SPRING,SIDE STAND
€ 9.50
26
113G1025
ref: 26
BOLT-SMALL-FINE,10X25
€ 2.50
27
315B1000
ref: 27
NUT,10MM
€ 0.50
