REAR HUB/BRAKE ('74-'75)
G3SS 1970 USA CANADA

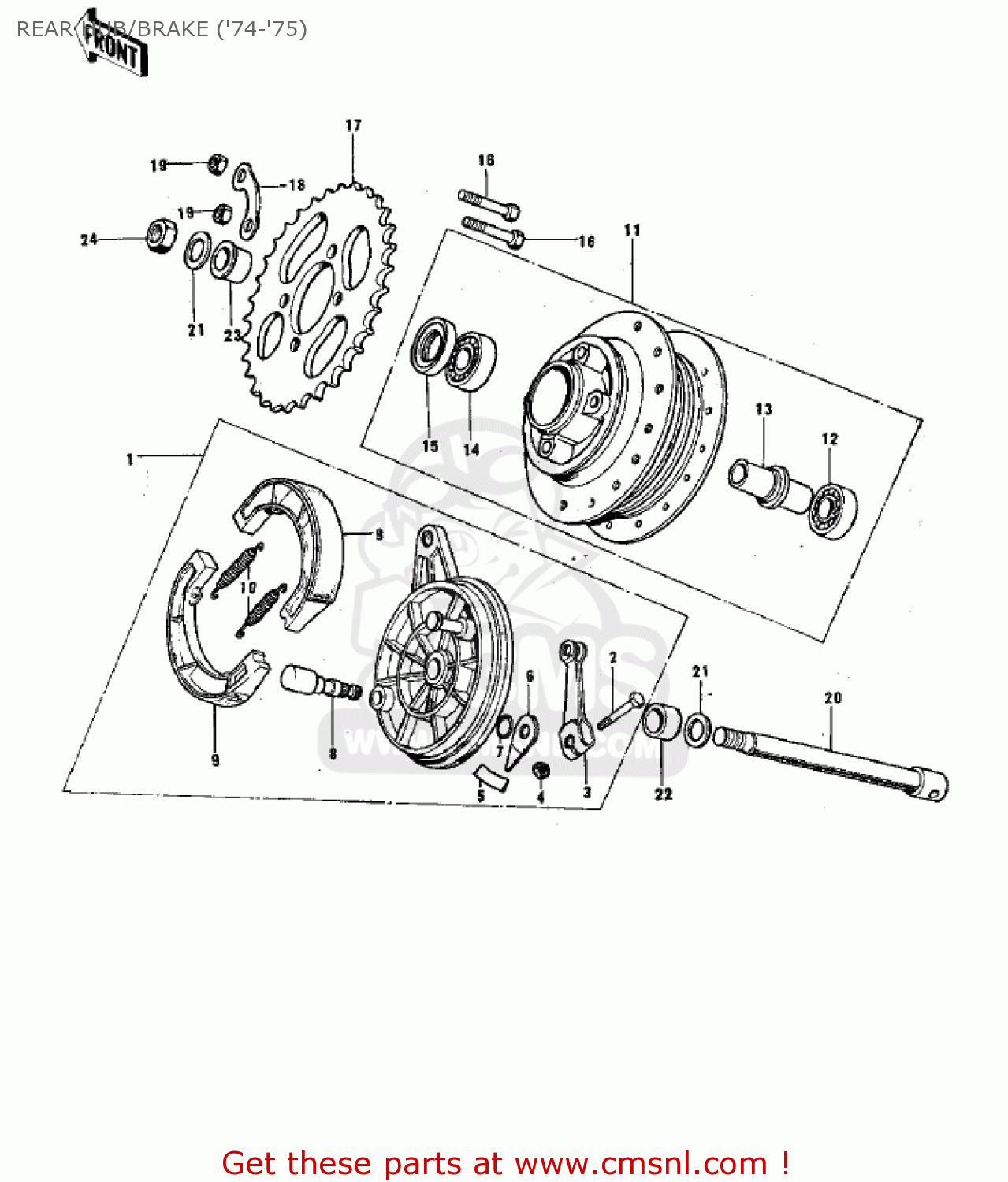

Rear hub/brake ('74-'75) diagram G3SS 1970 USA CANADA
REAR HUB/BRAKE ('74-'75) G3SS 1970 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
42006043
ref: 1
REAR BRAKE PANEL ASSEMBLY
€ 243.00
2
112G0630
ref: 2
BOLT-UPSET
€ 1.00
2
112G0630
ref: 2
BOLT-UPSET
€ 1.00
3
41053002
ref: 3
LEVER-BRAKE CAM
€ 11.50
4
41072007
ref: 4
NUT,6MM
€ 2.50
5
41084002
ref: 5
LABEL,FRONT BRAKE SHOE
€ 6.50
6
41085003
ref: 6
INDICATOR,BRAKE SHOE
€ 9.00
7
92055004
ref: 7
RING-O,BRAKE CAM
€ 3.00
8
41050012
ref: 8
CAM-BRAKE
€ 18.00
9
410481085
ref: 9
SHOE-BRAKE (NAS)
€ 13.00
10
920811766
ref: 10
SPRING,BRAKE SHOE
€ 5.50
11
42005006
ref: 11
DRUM ASSY-REAR BRAKE
€ 105.00
12
601B6301Z
ref: 12
BEARING-BALL,#6301ZC3
€ 15.00
13
42010003
ref: 13
COLLAR,L=85
€ 6.50
14
601B6301
ref: 14
BEARING-BALL,#6301C3
€ 13.00
15
92052001
ref: 15
OIL SEAL-RR BRK DRUM
€ 6.50
16
92001021
ref: 16
BOLT-REAR SPROCKET
€ 3.50
17
42041020
ref: 17
S.T.D.
REAR SPROCKET 37T
€ 34.50
17
42041051
ref: 17
OPTION
REAR SPROCKET 42T
€ 37.50
18
92088003
ref: 18
WASHER,SPROCKET LOCK
€ 3.00
19
311B0800
ref: 19
NUT,8MM
€ 0.50
20
410681091
ref: 20
AXLE,12X206
€ 24.00
21
410B1200
ref: 21
WASHER-PLAIN-SMALL,12
€ 0.50
22
42032006
ref: 22
COLLAR-REAR HUB R.H
€ 7.00
23
42032005
ref: 23
COLLAR-REAR HUB L.H
€ 2.00
24
314B1200
ref: 24
NUT-HEX-FINE
€ 1.00
