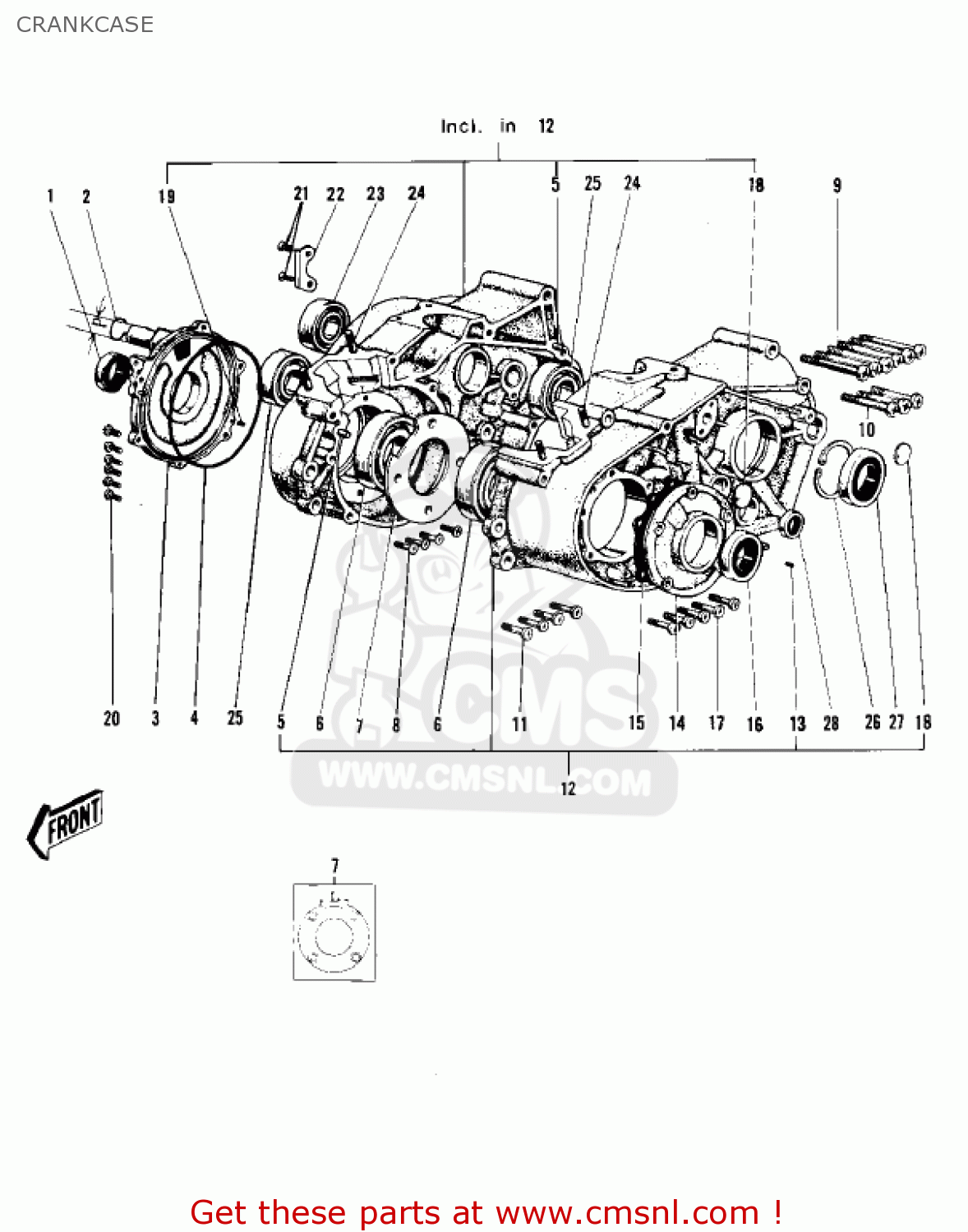

CRANKCASE

ref

part #

description

quantity

1

653B324507
ref: 1

OIL SEAL,TB32457

€ 11.50

2

671B2535
ref: 2

0 RING,35MM

€ 2.00

3

14019045
ref: 3
D=35

ROTARY DISC VALVE COVER

€ 75.00

4

92055013
ref: 4

RING-O,126MM

€ 7.00

5

551A0816
ref: 5

PIN-DOWEL,8X16

€ 0.50

6

601B6305
ref: 6

BEARING-BALL,#6305C3

€ 30.00

7

14014005
ref: 7
L=29.5 MM

PLATE-POSITION

€ 3.50

8

221B0616
ref: 8

SCREW-CNTSNK HD,6X16

€ 0.50

9

220B0660
ref: 9

SCREW-PAN HEAD,6X60

€ 2.50

10

220B0650
ref: 10

SCREW-PAN HEAD,6X50

€ 2.00

11

220B0645
ref: 11

SCREW-PAN HEAD,6X45

€ 2.50

12

14001031
ref: 12

CRANKCASE SET

€ 177.00

13

551A0312
ref: 13

PIN-DOWEL,3X12

€ 0.50

14

14020006
ref: 14

RETAINER-OIL SEAL

€ 9.00

15

14023004
ref: 15

OIL SEAL RETAINER GASKET

€ 2.50

16

920491250
ref: 16

SEAL-OIL

€ 12.00

17

221B0612
ref: 17

SCREW-CNTSNK HD,6X12

€ 1.50

18

92084001
ref: 18

PLUG

€ 6.50

19

610A0512
ref: 19

ROLLER,5X12

€ 3.00

20

220B0620
ref: 20

SCREW-PAN HEAD,6X20

€ 2.50

21

220B0614
ref: 21

SCREW-PAN HEAD,6X14

€ 2.00

22

14014004
ref: 22

BEARING HOLDER

€ 3.00

23

601B6203
ref: 23

BEARING-BALL,#6203C3

€ 10.50

24

172G1050
ref: 24

STUD,10X50

€ 1.50

25

601B6204
ref: 25

BEARING-BALL,#6204C3

€ 8.00

26

920331042
ref: 26

CIRCLIP,47M/M

€ 4.00

27

92050006
ref: 27

OIL SEAL SC25476

€ 17.50

28

658G121805
ref: 28

UNAVAILABLE IN PRICE BOOK

€ 0.00
