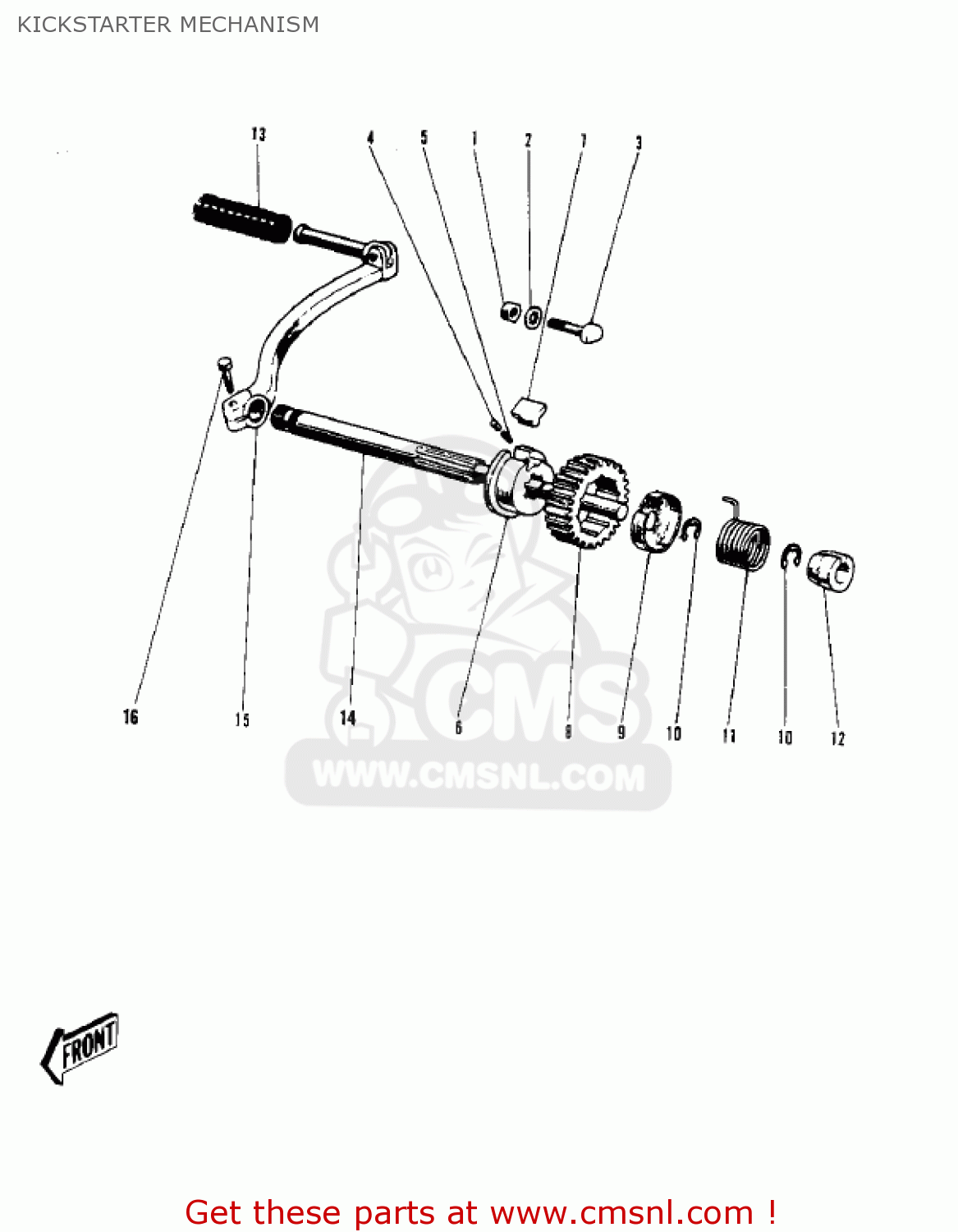

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

312B0800
ref: 1

NUT,8MM

€ 0.50

2

463H0800
ref: 2

WASHER-TOOTHED,8MM

€ 2.00

2

463H0800
ref: 2

WASHER-TOOTHED,8MM

€ 2.00

3

13072004
ref: 3

KICKSTARTER STOPPER

€ 27.00

4

92042001
ref: 4

PIN-KICKSTARTER PAWL

€ 1.50

5

92081001
ref: 5

CLUTCH SPRING

€ 3.00

5

92081022
ref: 5

SPRING-KICK PAWL

€ 4.00

6

13067003
ref: 6

KICKSTARTER DRUM

€ 158.00

7

13069003
ref: 7

KICKSTARTER PAWL

€ 23.50

8

13068004
ref: 8

GEAR-SPUR,KICKSTARTER

€ 52.50

9

13071003
ref: 9

HOLDER,KICK SPRING

€ 1.50

10

482J0100
ref: 10

CIRCLIP-TYPE-E,10MM

€ 0.50

11

92082002
ref: 11

SPRING-KICKSTARTER

€ 16.50

12

13070001
ref: 12

GUIDE,KICK SPRING

€ 9.00

13

13063004
ref: 13

DAMPER,KICK PEDAL

€ 6.50

14

130661007
ref: 14

SHAFT,KICKSTARTER

€ 72.00

15

13062002
ref: 15

RUBBER

€ 89.00

15

13058009
ref: 15

LEVER-KICK

€ 89.00

16

115G0825
ref: 16

BOLT-HEX,HEAD,8X25

€ 3.00
