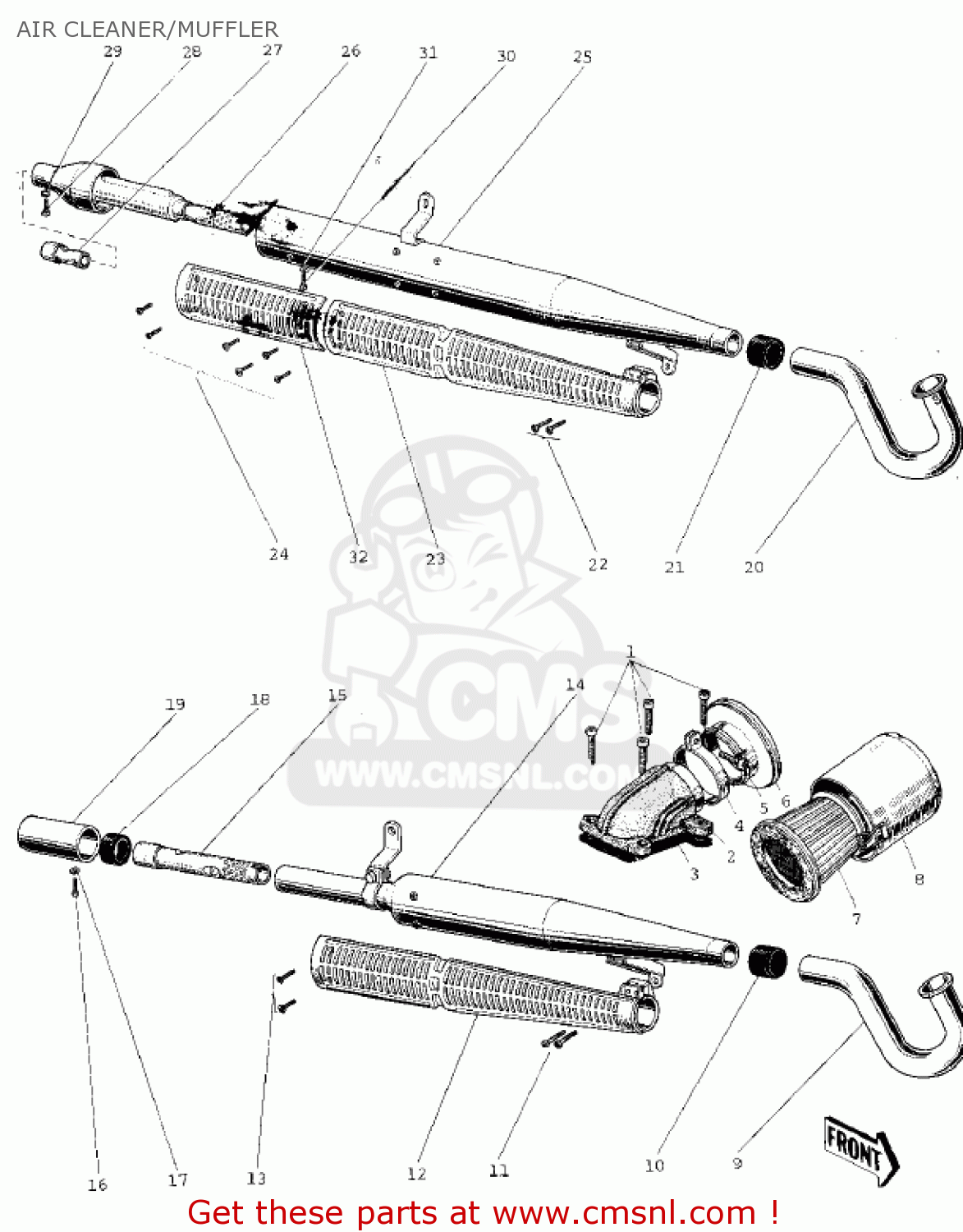

AIR CLEANER/MUFFLER

ref

part #

description

quantity

1

220B0620
ref: 1

SCREW-PAN HEAD,6X20

€ 2.00

2

11015005
ref: 2

INLET PIPE

€ 27.00

3

11017001
ref: 3

GASKET,INLET PIPE (MCA)

€ 0.50

?

11010017
ref: ?
Includes items 4 - 8

AIR CLEANER ASSEMBLY

€ 56.50

4

92037013
ref: 4

AIR CLEANER CLAMP

€ 7.50

5

220B0625
ref: 5

SCREW-PAN HEAD,6X25

€ 1.00

6

11012005
ref: 6

AIR CLEANER CAP

€ 19.00

7

11013005
ref: 7

AIR CLEANER ELEMENT

€ 20.50

8

11011004
ref: 8

AIR CLEANER BODY

€ 56.50

9

18049018
ref: 9

PIPE-EXHAUST

€ 15.00

10

18043008
ref: 10

SEAL,MUFFLER

€ 24.50

11

220B0625
ref: 11

SCREW-PAN HEAD,6X25

€ 1.00

12

18057006
ref: 12

MUFFLER COVER

€ 39.00

13

220B0606
ref: 13

SCREW PAN HEAD 6X6

€ 2.00

?

18005005
ref: ?
Includes items 14 -

MUFFLER ASSEMBLY

€ 251.50

15

18033009
ref: 15

BAFFLE TUBE

€ 39.00

16

220B0508
ref: 16
OLD JIS THREAD

SCREW-PAN-CROS,5X8

€ 0.50

16

220B0508
ref: 16
I.S.O. THREAD

SCREW-PAN-CROS,5X8

€ 0.50

17

461F0500
ref: 17

WASHER-SPRING,5MM

€ 0.50

18

18068002
ref: 18

SEAL,RUBBER

€ 4.50

19

18048003
ref: 19

TAIL PIECE

€ 23.50

20

18049019
ref: 20

EXHAUST PIPE

€ 69.00

21

18043008
ref: 21

SEAL,MUFFLER

€ 24.50

22

220B0625
ref: 22

SCREW-PAN HEAD,6X25

€ 1.00

23

18057006
ref: 23

MUFFLER COVER

€ 39.00

24

220B0606
ref: 24

SCREW PAN HEAD 6X6

€ 2.00

?

18005006
ref: ?
Includes items 25 -

MUFFLER ASSEMBLY

€ 251.50

26

18033010
ref: 26

SPARK ARRESTOR,COMPLETE

€ 66.00

27

18033011
ref: 27

BAFFLE TUBE

€ 6.50

28

112G0610
ref: 28

BOLT,6X10

€ 0.50

29

461F0600
ref: 29

WASHER-SPRING,6MM

€ 0.50

30

110B0510
ref: 30

BOLT-HEX HEAD,5X10

€ 0.50

30

110B0608
ref: 30

BOLT-HEX HEAD,6X8

€ 0.50

31

410B0500
ref: 31

WASHER-PLAIN-SMALL,5M

€ 0.50

31

410B0600
ref: 31

WASHER-PLAIN-SMALL,6M

€ 0.50

32

18057016
ref: 32

MUFFLER COVER,REAR

€ 36.00

all assemblies
