FRONT FORK (-'68 MODEL)
C2TR ROADRUNNER 1967 USA

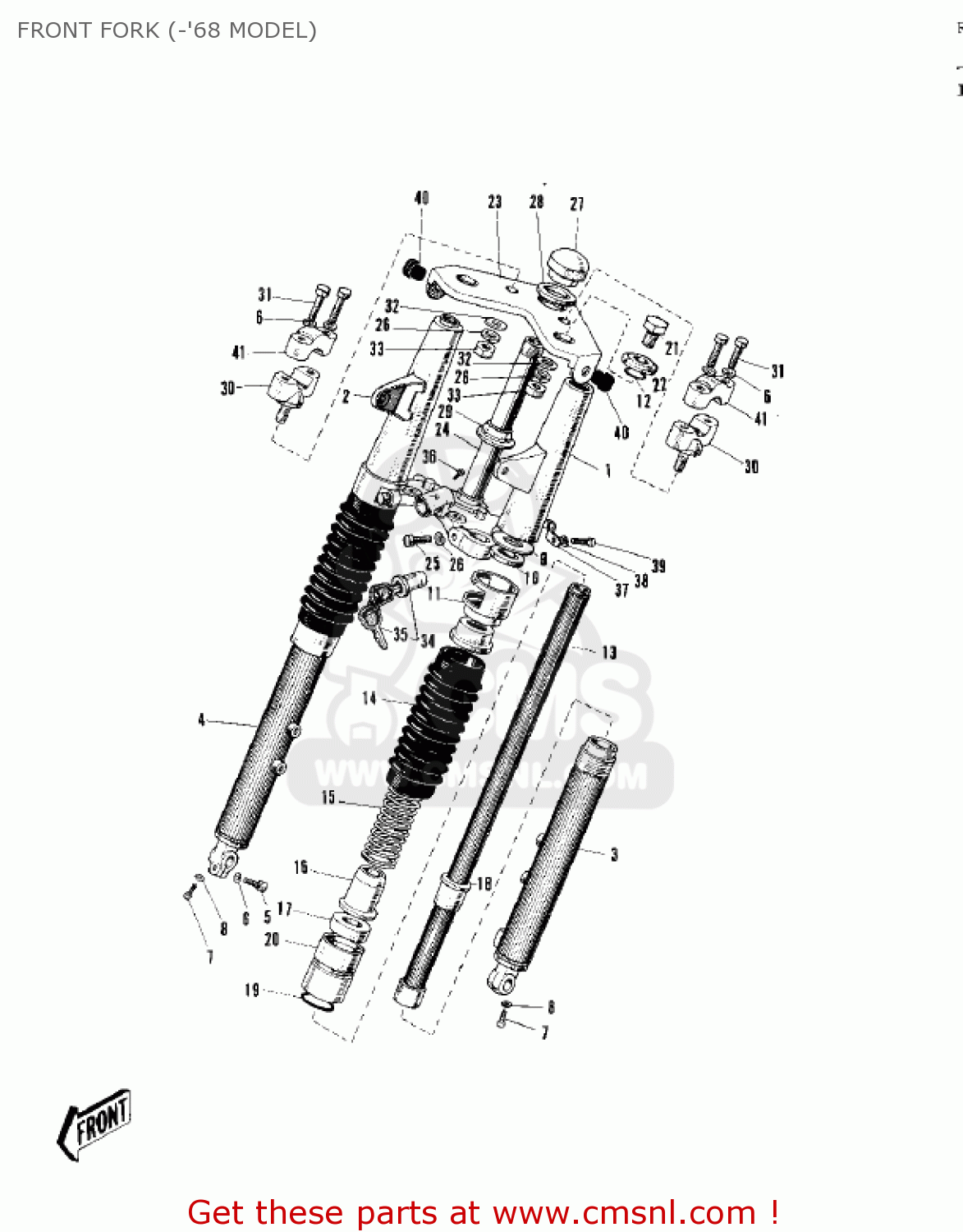

Front fork (-'68 model) diagram C2TR ROADRUNNER 1967 USA
FRONT FORK (-'68 MODEL) C2TR ROADRUNNER 1967 USA
×
prices are in EUR
ref
part #
description
quantity
?
44001025
ref: ?
Includes items 1 - 2
FRONT FORK ASSEMBLY
€ 713.00
1
44033011
ref: 1
FORK COVER,LH
€ 61.00
2
44034010
ref: 2
FORK COVER,RH
€ 64.50
3
44005007
ref: 3
FORK OUTER TUBE,LH
€ 167.50
4
44006005
ref: 4
FORK OUTER TUBE,RH
€ 187.00
5
115G0825
ref: 5
BOLT-HEX,HEAD,8X25
€ 3.00
6
461F0800
ref: 6
WASHER-SPRING,8MM
€ 0.50
7
220B0408
ref: 7
OLD JIS THREAD
SCREW-PAN-CROS
€ 0.50
7
220B0408
ref: 7
I.S.O.THREAD
SCREW-PAN-CROS
€ 0.50
8
44045002
ref: 8
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
9
44043009
ref: 9
WASHER
€ 1.50
10
44045007
ref: 10
FORK COVER GUIDE GASKET
€ 3.00
11
44030001
ref: 11
FORK COVER GUIDE
€ 18.50
12
44046002
ref: 12
RING-O,INNER PIPE,UPP (NAS)
€ 3.00
13
44013008
ref: 13
TUBE-FORK INNER
€ 34.50
14
44027001
ref: 14
FORK SPRING,COVER
€ 39.50
15
44026008
ref: 15
FORK SPRING
€ 35.00
16
44010015
ref: 16
DUST SHIELD-FORK
€ 5.50
17
44009021
ref: 17
OIL SEAL,FORK
€ 14.00
18
44015003
ref: 18
GUIDE,FORK INNER PIPE
€ 8.50
19
44046003
ref: 19
'O' RING-INN TB GUIDE
€ 1.00
20
44007004
ref: 20
FORK OUTER TUBE NUT
€ 51.00
21
44041003
ref: 21
BOLT, FORK
€ 1.00
22
44043006
ref: 22
FORK FITTING WASHER
€ 3.00
23
44039009
ref: 23
STEERING STEM HEAD
€ 453.00
24
44037012
ref: 24
STEERING STEM
€ 197.00
25
112G1030
ref: 25
BOLT UPSET
€ 4.50
26
461F1000
ref: 26
WASHER-SPRING,10MM
€ 0.50
27
44042001
ref: 27
STEERING STEM NUT
€ 17.50
28
44043008
ref: 28
STEERING STEM WASHER
€ 6.00
29
92047004
ref: 29
CONE-LOWER BEARING
€ 13.00
30
46010002
ref: 30
HANDLEBAR HOLDER,LOWER
€ 18.50
31
920011405
ref: 31
BOLT,8X38
€ 10.00
32
92022038
ref: 32
HANDLE HOLDER WASHER
€ 1.50
33
314B1000
ref: 33
NUT,10MM
€ 0.50
34
27016009
ref: 34
STEERING LOCK ASSEMBLY
€ 28.50
36
92099001
ref: 36
SCREW RIVET
€ 2.50
37
92037016
ref: 37
CLAMP,WIRING HARNESS
€ 1.50
38
461F0600
ref: 38
WASHER-SPRING,6MM
€ 0.50
39
220B0612
ref: 39
SCREW-PAN HEAD,6X12
€ 1.00
40
92074005
ref: 40
PLUG,8X2
€ 2.50
41
46012004
ref: 41
HOLDER-UPPER HANDLBAR
€ 14.00
