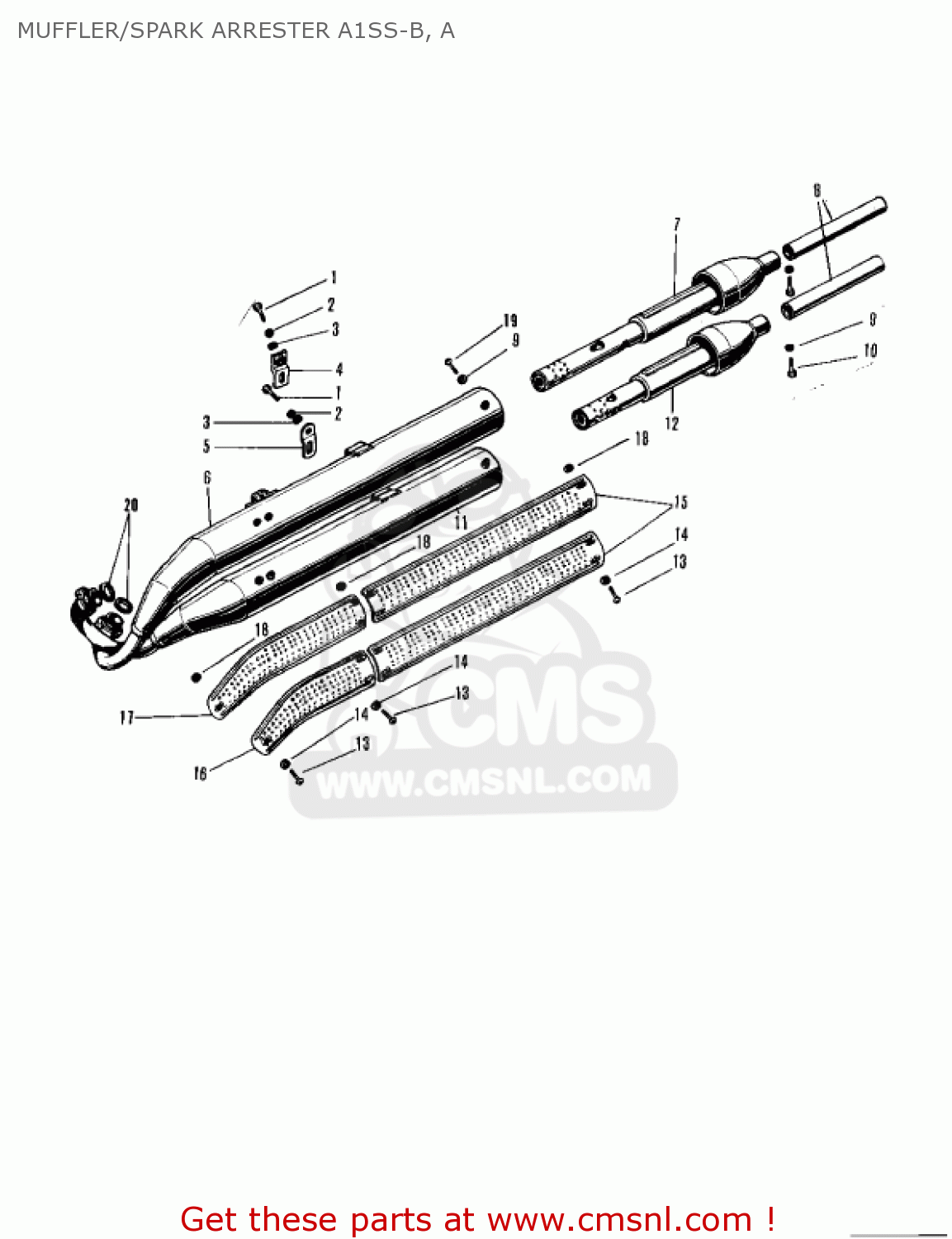

MUFFLER/SPARK ARRESTER A1SS-B, A

ref

part #

description

quantity

1

115G0820
ref: 1

BOLT,8X20

€ 2.00

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

410B0800
ref: 3

WASHER-PLAIN-SMALL,8M

€ 0.50

4

18061007
ref: 4

BRACKET-UPPER MUFFLER

€ 2.00

5

18061008
ref: 5

BRACKET-LOWER MUFFLER

€ 1.50

?

1800207421
ref: ?
Includes items 6 - 1

MUFFLER ASSEMBLY,UPPER,FLAT BLACK

€ 326.50

?

1800207321
ref: ?
Includes items 6 - 1

MUFFLER ASSEMBLY,UPPER,FLAT BLACK

€ 259.00

?

1800303421
ref: ?
Includes items 8 - 1

MUFFLER ASSEMBLY,LOWER,FLAT BLACK

€ 358.00

?

1800303321
ref: ?
Includes items 8 - 1

MUFFLER ASSEMBLY,LOWER,FLAT BLACK

€ 326.50

7

18033020
ref: 7

SPARK ARRESTOR COMP U

€ 15.00

8

18033023
ref: 8
L=200 M/M

BAFFLE TUBE

€ 31.00

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

112G0610
ref: 10

BOLT,6X10

€ 0.50

12

18033022
ref: 12

SPARK ARRESTOR COMP L

€ 31.00

13

220E0608
ref: 13

SCREW-PAN HEAD,6X8

€ 2.00

14

411B0600
ref: 14

WASHER-PLAIN,6MM

€ 0.50

15

1805704021
ref: 15
FLAT BLACK

MUFFLER COVER,REAR,FLAT BLACK

€ 39.50

16

1805703921
ref: 16
FLAT BLACK

LOWER MUFFLER COVER,FLAT BLACK

€ 33.50

17

1805703821
ref: 17
FLAT BLACK

MUFFLER COVER,UPPER,FLAT BLACK

€ 26.50

18

18065002
ref: 18

INSULATOR-HEAT

€ 3.00

19

220B0610
ref: 19

SCREW-PAN HEAD,6X10

€ 2.00

20

18067008
ref: 20

GASKET-EXHAUST PIPE (NAS)

€ 10.50

all assemblies
