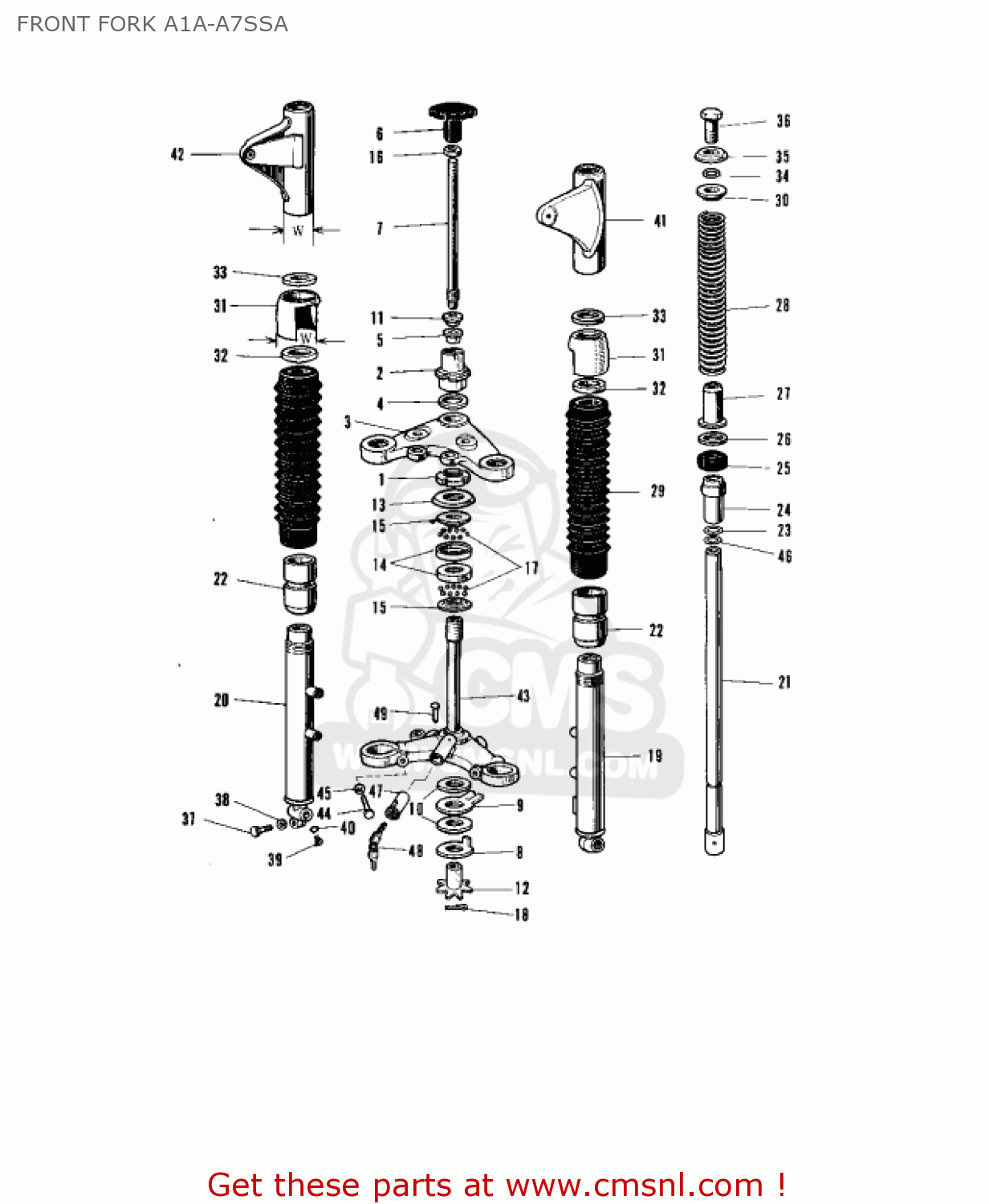

FRONT FORK A1A-A7SSA

ref

part #

description

quantity

1

92090007
ref: 1

NUT-STEERING STEM LCK

€ 8.00

2

92090014
ref: 2

NUT-STEERING STEM

€ 10.50

3

44039026
ref: 3

HEAD-STEERING STEM

€ 49.00

4

46100001
ref: 4

WASHER-STEERING STEM

€ 2.50

5

46103001
ref: 5

BUSH-STRNG DAMPER ROD

€ 2.00

6

46101001
ref: 6

KNOB-STEERING DAMPER

€ 3.00

7

46102005
ref: 7

ROD-STEERING DAMPER

€ 2.00

8

46106001
ref: 8

DISC-STTERING DAMPER

€ 3.50

9

46105001
ref: 9

STOPPER-STEERING DAMP

€ 2.00

10

46104001
ref: 10

DISC-STRNG DAMP FRCTN

€ 2.50

11

46108001
ref: 11

WASHER-STRNG DAMP NUT

€ 1.00

12

46123001
ref: 12

SPRING-FRICTION DISC

€ 3.50

13

46098006
ref: 13

CAP-STEERING STEM

€ 2.00

14

92048006
ref: 14

RACE-STRNG BEARIN-STE

€ 11.50

15

92047006
ref: 15

CONE-STRNG STEM

€ 11.00

16

92016001
ref: 16

NUT-STEERING DAMP LCK

€ 1.00

17

600A0800
ref: 17

BALL-STEEL,1/4

€ 0.50

18

550D2015
ref: 18

PIN-COTTER,2.0X15

€ 1.00

?

4400105710
ref: ?
Includes items 3 and

FRONT FORK ASSY,BLACK

€ 372.00

19

44005013
ref: 19

TUBE-L.H OUTER

€ 49.50

20

44006011
ref: 20

TUBE-R.H OUTER

€ 40.00

21

44013015
ref: 21

TUBE-FORK INNER

€ 92.00

22

44007010
ref: 22

NUT-FORK OUTER TUBE

€ 15.50

23

44046016
ref: 23

'O' RING-OUTER TUBE

€ 4.00

24

44015006
ref: 24

GUIDE-FORK INNER TUBE

€ 3.00

25

44009005
ref: 25

OIL SEAL-FORK

€ 7.00

26

44043020
ref: 26

WASHER

€ 1.50

27

44010008
ref: 27

DUST SHIELD-FORK

€ 4.50

28

44026013
ref: 28

SPRING-FORK

€ 9.00

29

44027006
ref: 29

COVER-FORK DUST

€ 7.00

30

44028009
ref: 30

GUI

€ 1.50

31

44030008
ref: 31
W=60 M/M

GUIDE-FORK COVER

€ 6.50

32

44035001
ref: 32
I. D=38

HOLDER-DUST COVER

€ 1.50

33

44045031
ref: 33
I. D=32

GASKET-FORK COVER

€ 1.00

34

44046006
ref: 34

'O' RING-FORK BOLT

€ 4.00

35

44043029
ref: 35

WASHER-FORK BOLT

€ 1.00

36

44041011
ref: 36

BOLT-FORK FITTING

€ 5.50

37

115G0830
ref: 37

BOLT-SMALL-UPSET,8X30

€ 3.00

38

461F0800
ref: 38

WASHER-SPRING,8MM

€ 0.50

39

220B0408
ref: 39
I.S.O. THREAD

SCREW-PAN-CROS

€ 0.50

40

44045002
ref: 40

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

41

4403303010
ref: 41
W=39 M/M

COVER-L.H FORK,BLACK

€ 24.00

42

4403402910
ref: 42
W=39 M/M

COVER-R.H FORK,BLACK

€ 31.00

43

44037015
ref: 43

STEM-STEERING

€ 113.50

44

44041010
ref: 44

BOLT-PINCH

€ 5.00

45

461F1000
ref: 45

WASHER-SPRING,10MM

€ 0.50

46

481J2800
ref: 46

CIRCLIP-TYPE-C,28MM

€ 1.00

?

27017011
ref: ?
Includes items 47 an

LOCK ASSY STEERING

€ 0.00

48

2700802721
ref: 48

KEY SET #521

€ 6.00

48

2700802723
ref: 48

KEY SET #523

€ 6.00

48

2700802724
ref: 48

KEY SET,#524

€ 6.00

48

2700802725
ref: 48

KEY SET #525

€ 6.00

49

92099001
ref: 49

SCREW RIVET

€ 2.50
