REAR HUB/BRAKE
A7A AVENGER 1970 USA

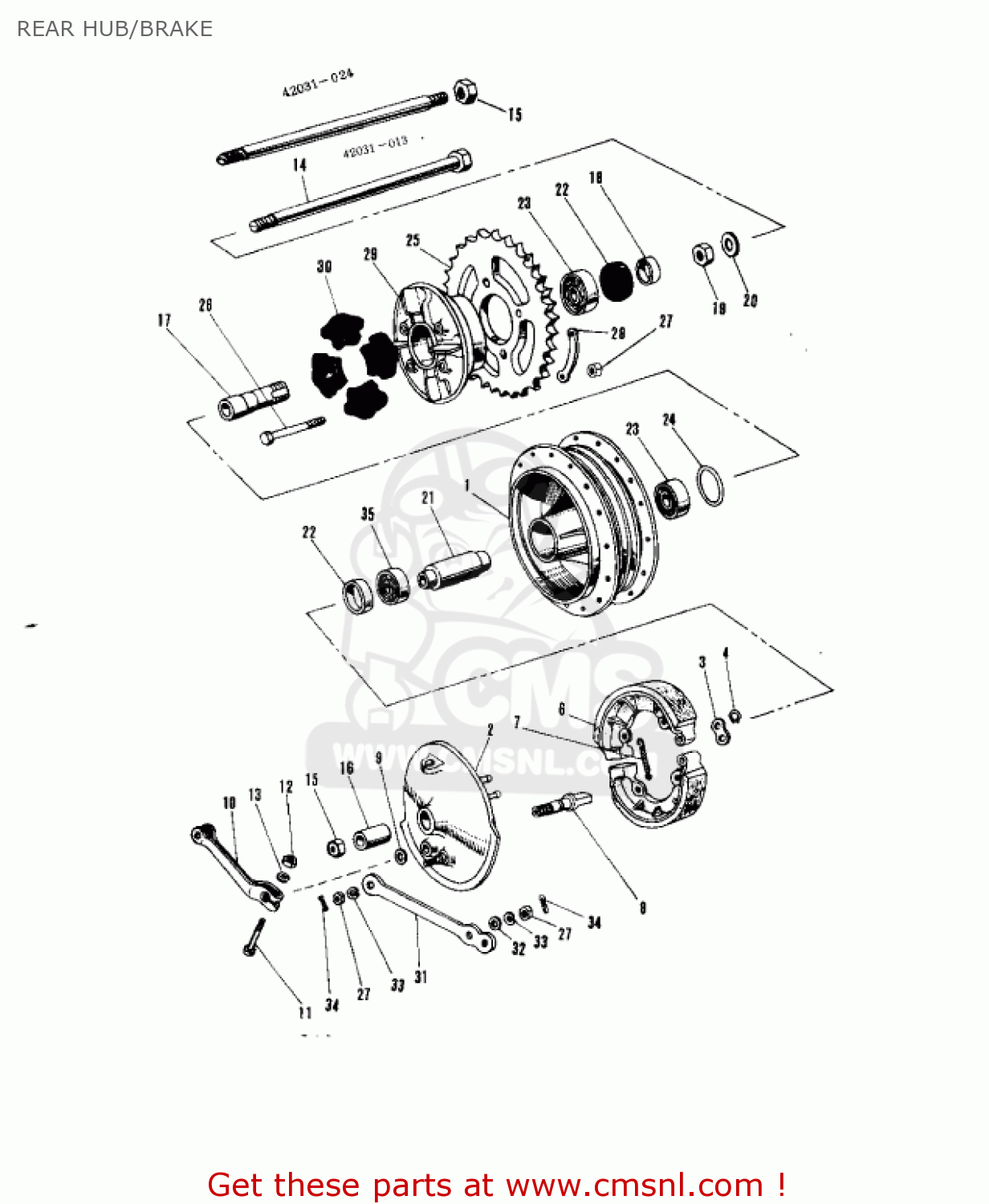

Rear hub/brake diagram A7A AVENGER 1970 USA
REAR HUB/BRAKE A7A AVENGER 1970 USA
×
prices are in EUR
ref
part #
description
quantity
?
42005009
ref: ?
Includes items 1, 21
DRUM ASSY-REAR BRAKE
€ 331.00
?
4200600780
ref: ?
Includes items 2 - 1
PANEL ASY-RR BK,BUFF
€ 190.50
3
41045007
ref: 3
WASHER,BRAKE SHOE
€ 4.00
4
480J1400
ref: 4
CIRCLIP-TYPE-C,14MM
€ 3.00
6
42019003
ref: 6
SHOE-REAR BRAKE (MCA)
€ 24.50
7
41049003
ref: 7
SPRING-BRAKE SHOE
€ 2.50
8
42026015
ref: 8
CAM SHAFT,REAR BRAKE
€ 30.00
9
41051001
ref: 9
DUST SHIELD-BRAKE CAM
€ 2.50
10
42029037
ref: 10
LEVER,REAR BRAKE CAM
€ 27.50
11
112G0640
ref: 11
BOLT-UPSET,6X40
€ 2.50
12
311B0600
ref: 12
NUT,6MM
€ 0.50
13
411B0600
ref: 13
WASHER-PLAIN,6MM
€ 0.50
14
42031013
ref: 14
USE 42031-033 & 313Z
AXLE,REAR
€ 56.50
14
42031033
ref: 14
AXLE-REAR
€ 50.00
15
313Z1600
ref: 15
1 EA NOT REQUIRED FO
UNAVAILABLE IN PRICE BOOK
€ 0.00
16
42032008
ref: 16
COLLAR-REAR HUB R.H
€ 13.50
17
42036006
ref: 17
SLEEVE-REAR AXLE
€ 18.00
18
42037006
ref: 18
COLLER-RR AXLE SLEEVE
€ 17.00
19
42045006
ref: 19
NUT-SLEEVE
€ 7.50
20
42046009
ref: 20
WASHER-SLEEVE
€ 5.00
21
42010008
ref: 21
SPACER-RR HUB BEARING
€ 4.50
22
92052006
ref: 22
OIL SEAL WTC35527
€ 6.50
23
601B6205
ref: 23
BEARING-BALL,#6205C3
€ 14.00
24
671B2560
ref: 24
O RING,60MM
€ 1.50
25
42041028
ref: 25
REAR SPROCKET 37T
€ 40.00
25
42041029
ref: 25
A1 OPTION
REAR SPROCKET 39T
€ 18.00
25
42041029
ref: 25
S.T.D.
REAR SPROCKET 39T
€ 18.00
25
42041028
ref: 25
A1SS
REAR SPROCKET 37T
€ 40.00
25
42041064
ref: 25
OPTION
REAR SPROCKET 41T
€ 40.50
25
42041035
ref: 25
S.T.D.
REAR SPROCKET 36T
€ 60.50
25
42041062
ref: 25
A7, A7SS
REAR SPROCKET 34T
€ 38.50
25
42041063
ref: 25
OPTION
REAR SPROCKET 38T
€ 37.00
26
92003087
ref: 26
BOLT-RR SPRCKT 10X49
€ 4.00
27
314B1000
ref: 27
NUT,10MM
€ 0.50
28
92088005
ref: 28
WASHER,SPROCKET LOCK
€ 4.00
?
42008012
ref: ?
Includes items 17 -
COUPLING ASSY-RR HUB
€ 143.00
30
42014008
ref: 30
DAMPER,RR HUB SHOCK
€ 24.50
31
43007010
ref: 31
TORQUE LINK-REAR BRK
€ 10.00
32
411B1000
ref: 32
WASHER-PLAIN,10MM
€ 0.50
33
461F1000
ref: 33
WASHER-SPRING,10MM
€ 0.50
34
550D2020
ref: 34
PIN-COTTER,2.0X20
€ 0.50
35
601B6205Z
ref: 35
BALL BEARING,#6205ZC3
€ 24.00
