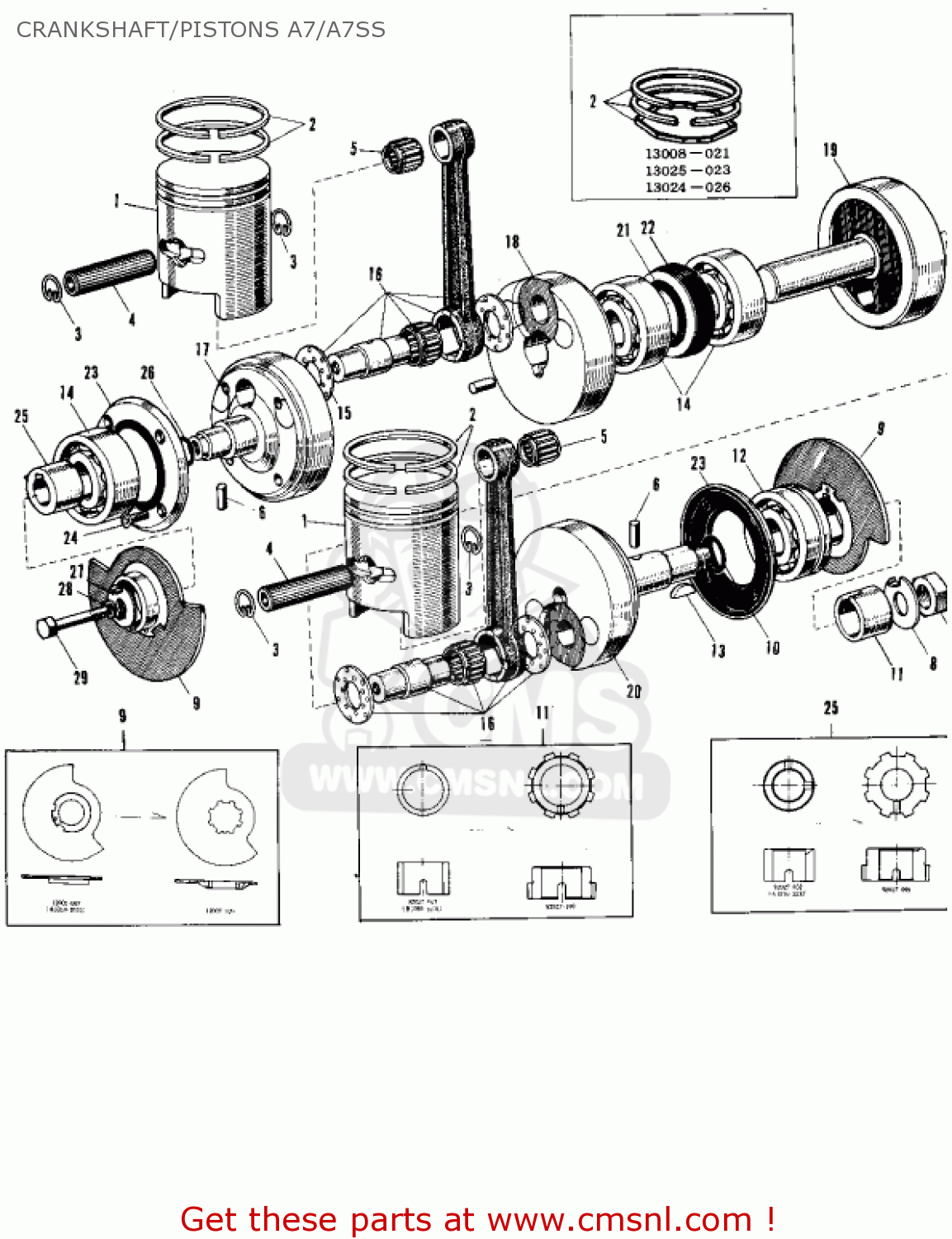

CRANKSHAFT/PISTONS A7/A7SS

ref

part #

description

quantity

1

13001027
ref: 1

PISTON,STD

€ 50.00

2

13008021
ref: 2

RING-SET-PISTON,STD

€ 67.50

3

92036004
ref: 3

CIRCLIP-PISTON PIN

€ 0.50

4

13002010
ref: 4

PIN-PISTON

€ 22.00

5

920461038
ref: 5

BEARING-NEEDLE,KBK16X

€ 17.00

6

610A0412
ref: 6

ROLLER,4X12

€ 2.50

7

92015019
ref: 7

NUT,18MM

€ 4.00

8

92024067
ref: 8

WASHER,LOCK

€ 2.00

9

12002007
ref: 9

VALVE-ROTARY DISC

€ 44.50

9

12002020
ref: 9

VALVE-ROTARY DISC

€ 79.00

10

92055018
ref: 10

RING-O,22MM

€ 2.50

11

92027017
ref: 11

COLLAR-CRANKSHAFT

€ 42.00

11

92027100
ref: 11

COLLAR-R.H CRNK SHFT

€ 37.00

12

92045020
ref: 12

BEARING-BALL,#6305N

€ 29.00

13

510A5100
ref: 13

KEY-WOODRUFF

€ 1.50

?

13036021
ref: ?
Includes items 12 an

CRANK&CONROD ASSY

€ 661.50

14

601B6305
ref: 14

BEARING-BALL,#6305C3

€ 30.00

15

92026024
ref: 15

SPACER,24.7X40X1.0

€ 16.00

16

13044007
ref: 16

CONNECTING ROD SET

€ 183.50

17

13037031
ref: 17

CRANKSHAFT,L.H

€ 100.00

18

13040001
ref: 18

CRANK WEB,CENTER

€ 38.50

19

13039001
ref: 19

CRANKSHAFT,CENTER

€ 46.00

20

13038027
ref: 20

CRANKSHAFT,R.H

€ 46.00

21

92027031
ref: 21

COLLAR-CRANK OIL SEAL

€ 17.50

22

92056001
ref: 22

OIL SEAL-CRANKSHAFT

€ 9.50

23

13045002
ref: 23

OIL RECIEVER CRANKSHT

€ 17.00

24

92012001
ref: 24

SCREW-CNTRSNK HD,5X10

€ 1.50

24

92012002
ref: 24
I.S.O. THREAD

SCREW-OVL CNTSNK,5X10

€ 1.50

25

92027032
ref: 25

COLLAR-L.H CRANK SHT

€ 9.50

25

92027099
ref: 25

COLLAR-L.H CRNK SHFT

€ 10.00

26

670B2016
ref: 26

O RING,16MM

€ 1.00

27

92024007
ref: 27

WASHER-LOCK,8MM

€ 1.00

28

461F0800
ref: 28

WASHER-SPRING,8MM

€ 0.50

29

92001030
ref: 29

BOLT-HEX HEAD,8X35

€ 1.00

all assemblies
